Support assembly details for Mountfield MIPL2010_20100311_MULTICLIP501HP 2010 model

Parts list

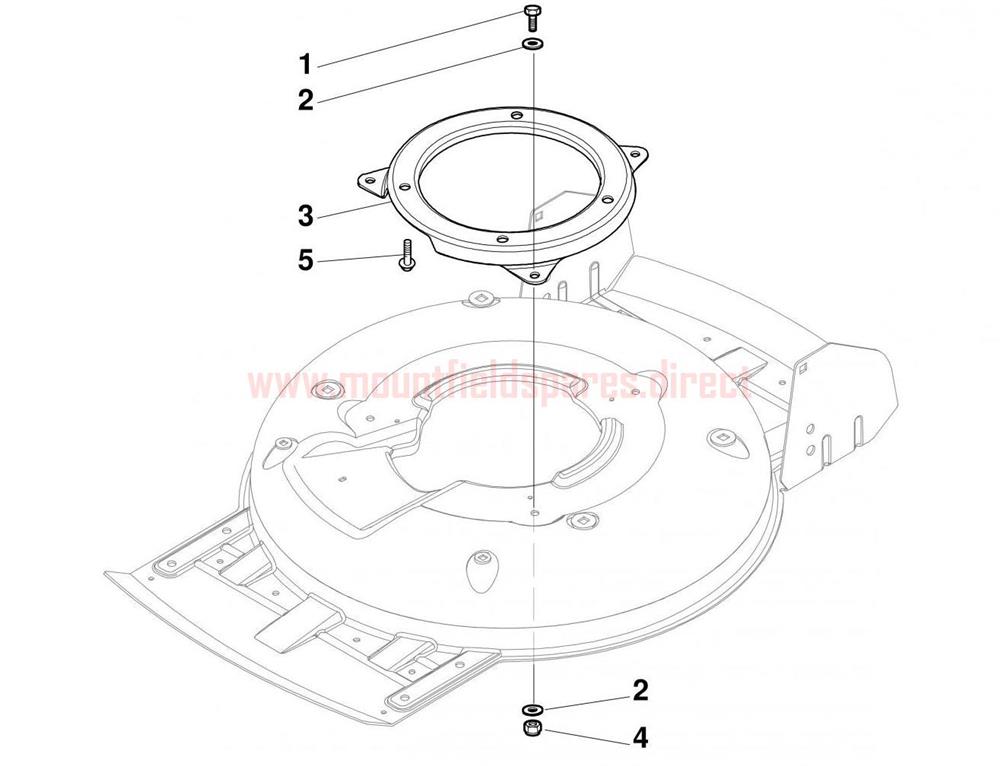

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.76 Add to
002112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
003322207219/1ENGINE MOUNTING PLATE [BLACK]£22.80 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
005112735108/1TELF-FORM SCREW 3/8" x 1¼" UNC£2.76 Add to
