Handle, Lower Part

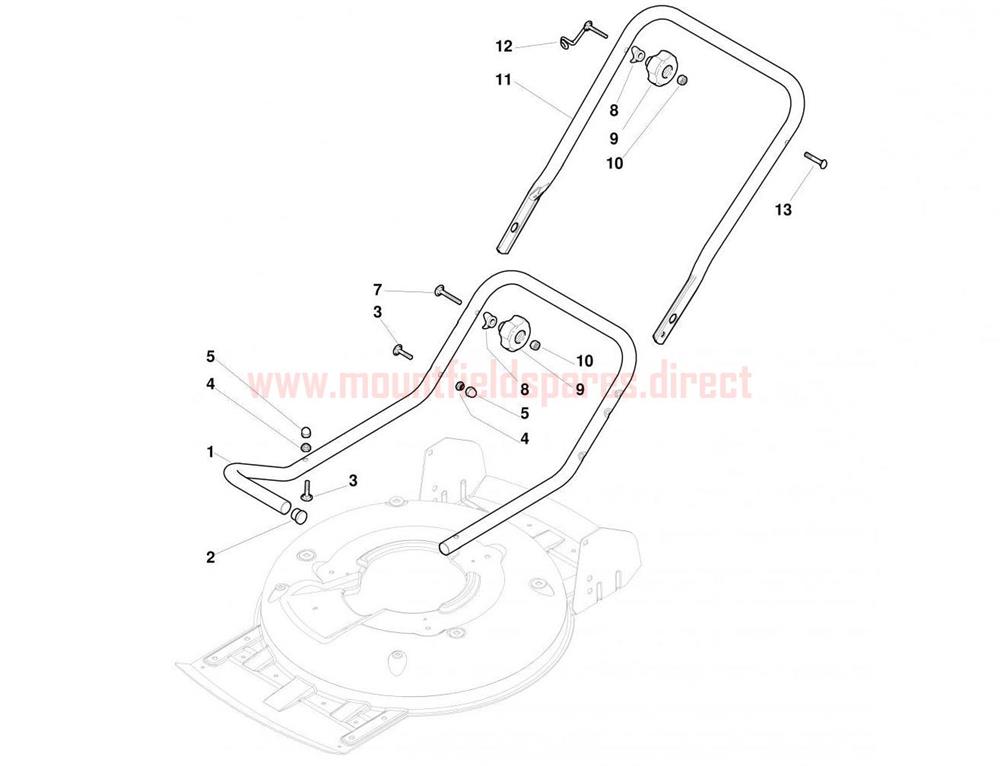

Handle, Lower Part assembly details for Mountfield MIPL2010_20100311_MULTICLIP501HP 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006667/0LOWER HANDLE MCS50 [BLACK]£38.40 Add to
002118566110/0HANDLE CAP D=22 [BLACK]£2.76 Add to
003112818900/0SCREW TTDQ M8 x 35£1.65 Add to
004112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
005118203854/0NUT CAP M8 [BLACK]£2.76 Add to
006112818900/0SCREW TTDQ M8 x 35£1.65 Add to
007112819201/0CARRIAGE BOLT M8 x 60£3.72 Add to
008122680006/1PLASTIC WASHER£2.64 Add to
009322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
011381006668/0MIDDLE HANDLE MCS50 [BLACK]£29.94 Add to
012181003801/1BOLT/PULL CORD GUIDE£3.98 Add to
013112819201/0CARRIAGE BOLT M8 x 60£3.72 Add to
