Handle, Lower Part

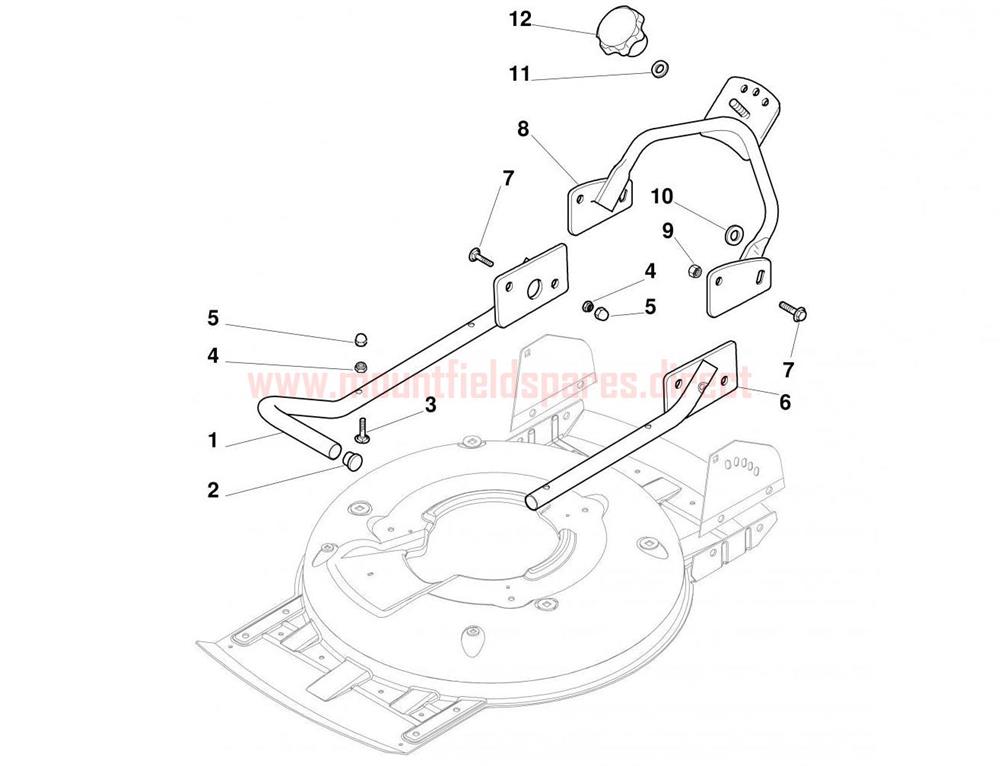

Handle, Lower Part assembly details for Mountfield MIPL2010_20100311_MULTICLIP500PD 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006377/0R/H LOWER HANDLE [BLACK] MCS50£33.60 Add to
002118566114/0HANDLE CAP [BLACK]£2.76 Add to
003112819100/0CARRIAGE BOLT M8 x 40£2.76 Add to
004112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
005118203854/0NUT CAP M8 [BLACK]£2.76 Add to
006381006379/0L/H LOWER HANDLE [BLACK] MCS50£34.80 Add to
007112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.76 Add to
008381006365/1LOWER HANDLE PART MC/MCS BLACK£62.87 Add to
009112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
010112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
011112523080/0WASHER M10 11 x 30 x 2.5£2.76 Add to
012322399813/0HANDLE KNOB [BLACK]£11.40 Add to
