Chassis-Wheels And Height Adjusting

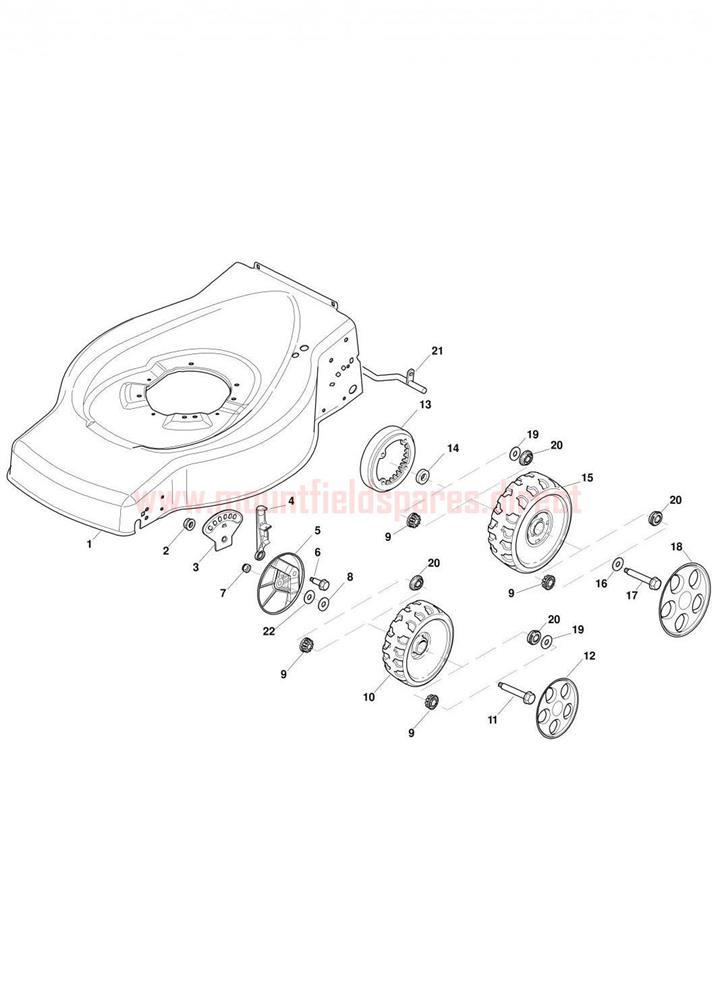

Chassis-Wheels And Height Adjusting assembly details for Mountfield MIPL2010_20100310_SP536 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003703/0STEEL DECK ES/ESL53 TS-TR [RED]£124.05 Add to
002122131750/0NUT M8£2.76 Add to
003322735557/0HEIGHT ADJUST QUADRANT£4.32 Add to
004381003306/0HEIGHT ADJUST LEVER£6.84 Add to
005322600170/0INNER WHEEL COVER D=165£10.19 Add to
006122524324/0SHOULDER BOLT£4.92 Add to
007112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
008325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.76 Add to
009122034508/0PLASTIC BUSH [WHITE]£2.76 Add to
010322686091/1WHEEL D=165mm£7.20 Add to
011122524341/0WHEEL BOLT£3.48 Add to
012322110491/0HUB CAP D=170 [GREY]£3.12 Add to
013322120109/0PLASTIC DRIVE GEAR D=190£7.20 Add to
014322170622/0WHEEL SPACER£2.52 Add to
015381007468/0DRIVE WHEEL D=190£14.76 Add to
016112523050/0WASHER M6 6.6 x 24 x 2£2.76 Add to
017112735599/0SELF-TAPPING SCREW M6 x 16£2.76 Add to
018322110417/0HUB CAP D=210 [GREY]£4.23 Add to
019122675100/0WASHER D=12.6 x 24 x 0.6£2.64 Add to
020122122206/0BEARING£3.00 Add to
021122033393/0REAR WHEELS AXLE£24.00 Add to
022112530150/0SPRING WASHER M12£2.52 Add to
