Chassis

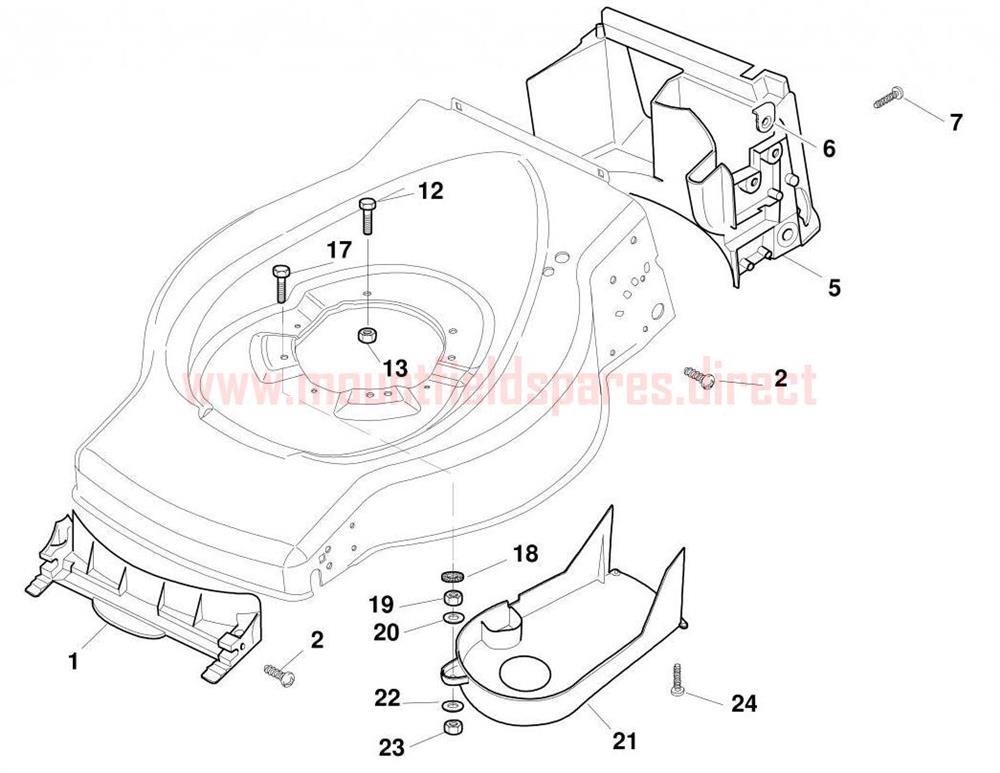

Chassis assembly details for Mountfield MIPL2010_20100308_SP184 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108271/0PLASTIC FRONT BAFFLE£13.25 Add to
002112728686/0TAPTITE SCREW KA50 X 16£1.68 Add to
005322108272/2PLASTIC REAR BAFFLE£18.30 Add to
006322545189/0HANDLE FIXING PLATE£1.96 Add to
007112728686/0TAPTITE SCREW KA50 X 16£1.68 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.68 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
017112691115/0HEX-HEAD SCREW M8 x 40£1.96 Add to
018112540060/0SERRATED LOCK WASHER M8£1.96 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
020122671651/0WASHER 8.3 x 22 x 2£2.21 Add to
021322060212/0BELT PROTECTION GUARD ES46£8.16 Add to
022325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£1.96 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
024112728686/0TAPTITE SCREW KA50 X 16£1.68 Add to
