Chassis-Wheels And Height Adjusting

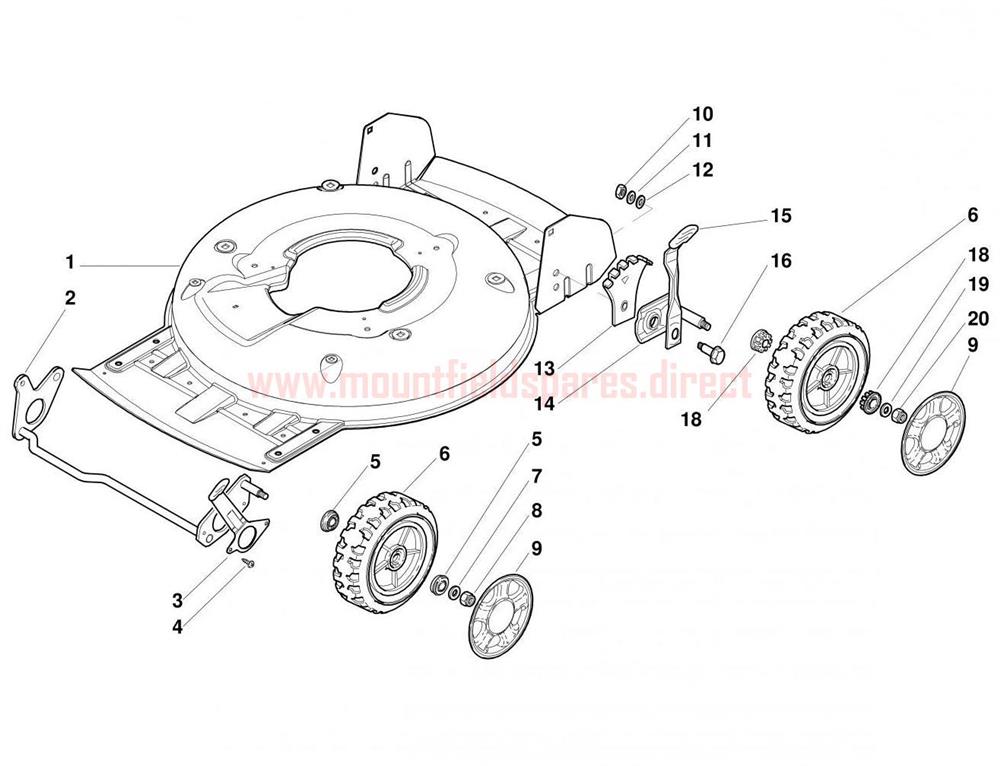

Chassis-Wheels And Height Adjusting assembly details for Mountfield MULTICLIP501PD (20100407) 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004734/0	DECK MULTICLIP 50 [GREY]	£216.11	Add to
002	381002849/0	FRONT WHEELS AXLE	£39.80	Add to
003	381003276/0	HEIGHT ADJUST LEVER	£19.36	Add to
004	112735661/0	SCREW TCB TORX M6 x 10	£2.06	Add to
005	122122206/0	BEARING	£2.32	Add to
007	112369500/0	SPRING WASHER D=8	£1.79	Add to
008	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
009	322110382/0	HUB CAP D=210 [GREY]	£4.27	Add to
010	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
011	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
012	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
013	322735547/0	HEIGHT ADJUST QUADRANT	£2.61	Add to
014	381005082/0	STUB AXLE	£6.69	Add to
015	481003286/0	HEIGHT ADJUST LEVER	£5.19	Add to
016	122519811/0	WHEEL BOLT	£2.06	Add to
018	122034508/0	PLASTIC BUSH [WHITE]	£2.06	Add to
019	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
020	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
