Chassis-Wheels And Height Adjusting

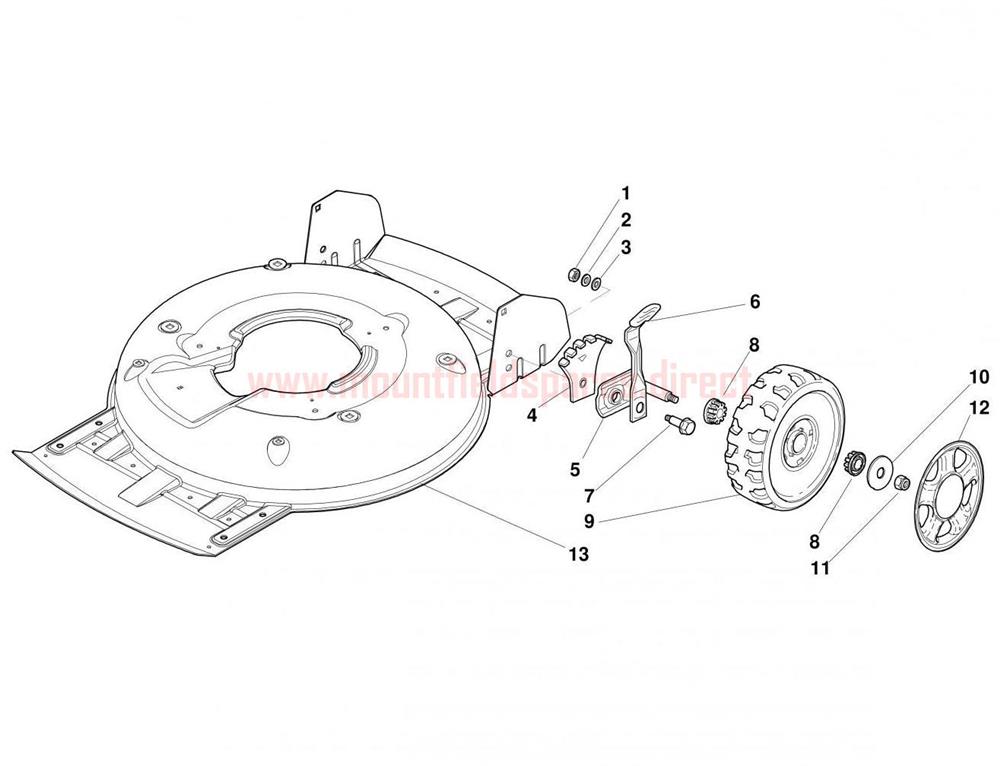

Chassis-Wheels And Height Adjusting assembly details for Mountfield MULTICLIP501HP (20100401) 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
002112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
003112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
004322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
005381005082/0STUB AXLE£6.69 Add to
006481003286/0HEIGHT ADJUST LEVER£5.19 Add to
007122519811/0WHEEL BOLT£2.06 Add to
008122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
009322686092/0WHEEL D=190£6.27 Add to
010112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
011112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012322110382/0HUB CAP D=210 [GREY]£4.27 Add to
013381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
