462R HP

462R HP assembly details for Mountfield 462R_HP (20100401) 2009 model

Parts list

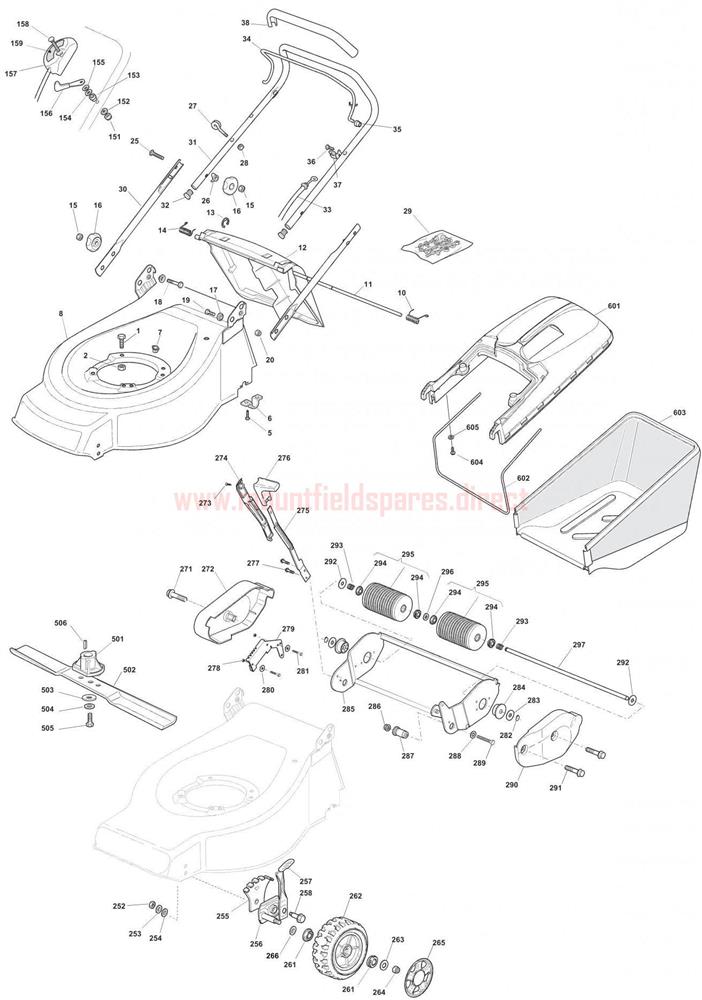

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001112691800/0HEX-HEAD SCREW M8 x 60£2.76 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
002112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
005112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.76 Add to
007322291150/0RUBBER INSERT£2.76 Add to
008381002565/0STEEL DECK 46cm ROLLER [RED] (OBSOLETE)N/A
010122450420/1LH DEFLECTOR SPRING£2.76 Add to
011122517906/1DEFLECTOR ROD£4.44 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£19.56 Add to
013112000930/0CIRCLIP D=6£1.65 Add to
014122450410/1RH DEFLECTOR SPRING£2.76 Add to
015112293202/0HEXAGONAL NUT M8 UNI 5588£2.76 Add to
016322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
017322041955/0METAL HANDLE BUSH£2.76 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£1.65 Add to
020112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
025112819125/0CARRIAGE BOLT M8 x 55£1.65 Add to
026122680006/1PLASTIC WASHER£2.64 Add to
027122430309/0PULL CORD GUIDE£3.48 Add to
028112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
029381008642/0SCREW ASSEMBLY KIT-46R£26.40 Add to
030381006973/0LOWER HANDLE [BLACK]£32.40 Add to
031381006977/1UPPER HANDLE BLACK CASTEL TS£30.56 Add to
032118566116/0HANDLE CAP BLACK D=21£3.36 Add to
033181000641/0ENGINE BRAKE CABLE£14.28 Add to
034181003291/3ENGINE BRAKE LEVER£13.86 Add to
035122041966/0CONTROL LEVER BUSH£2.76 Add to
036112728518/0SELF-TAPPING SCREW 5.5 x 13£2.76 Add to
037322806612/0BRAKE CABLE SUPPORT£4.02 Add to
038122291050/0HANDLE GRIP [BLACK]£13.80 Add to
151112291000/0HEXAGON NUT M5£2.76 Add to
152112581500/0WASHER M5£2.76 Add to
153122171005/0THROTTLE SPACER£2.76 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.76 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.76 Add to
156381007279/1THROTTLE LEVER£2.76 Add to
157481007080/0THROTTLE CABLE£22.92 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.76 Add to
159114356702/0THROTTLE DECAL£2.76 Add to
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
255322735547/0HEIGHT ADJUST QUADRANT£3.26 Add to
256381005082/0STUB AXLE£6.84 Add to
257481003285/1HEIGHT ADJUST LEVER£9.36 Add to
258122519811/0WHEEL BOLT£2.76 Add to
259381005084/0STUB AXLE£6.17 Add to
260481003286/0HEIGHT ADJUST LEVER£5.52 Add to
261122122206/0BEARING£3.00 Add to
262381007351/0WHEEL D=170£12.98 Add to
263112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
264112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
265322110381/0HUB CAP D=170 [GREY]£4.20 Add to
266112530150/0SPRING WASHER M12£2.52 Add to
271112735594/0HEX-HEAD SCREW M6 x 30£2.76 Add to
272322060201/0RIGHT ROLLER CHAIN COVER [RED]£3.12 Add to
273112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
274322109722/0ADJUST LEVER COVER£4.68 Add to
275322321505/0HEIGHT ADJUST LEVER [ROLLER]£16.56 Add to
276322034512/0ROLLER AXLE BUSH£2.76 Add to
276322399805/0HEIGHT ADJUST KNOB£13.32 Add to
277112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.76 Add to
277322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£2.64 Add to
278112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
279322735551/0HEIGHT ADJUST QUADRANT£9.36 Add to
280112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.76 Add to
281112789000/0SCREW TE M5 x 12£2.76 Add to
282112000957/0CIRCLIP D=10£1.65 Add to
285381005109/1ROLLER SUPPORT TD/CA/ML/R£127.20 Add to
286112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
287122785132/0ROLLER SUPPORT£4.92 Add to
288112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
289112691700/0SCREW M8 x 55£2.64 Add to
290322060202/0LEFT ROLLER COVER [RED]£3.48 Add to
291112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
293122430210/0SPRING£2.76 Add to
294122122206/0BEARING£3.00 Add to
295381007400/0ROLLER ASSEMBLY£18.23 Add to
296112521370/0WASHER M12 13 24 x 2.5£2.76 Add to
297122033360/0ROLLER AXLE£6.84 Add to
298322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£2.64 Add to
501122463020/1BLADE BOSS D=25mm£9.63 Add to
502181004346/3BLADE 46CM£12.98 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.88 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.76 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.21 Add to
506112139150/0WOODRUFF KEY D=25mm£1.94 Add to
602122608525/2GRASSCATCHER FRAME£18.57 Add to
603181002227/0GRASSBAG-ROLLER [BLACK]£39.60 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.76 Add to
