Ass-Y Roller

Ass-Y Roller assembly details for Mountfield 460R_HP (20100407) 2009 model

Parts list

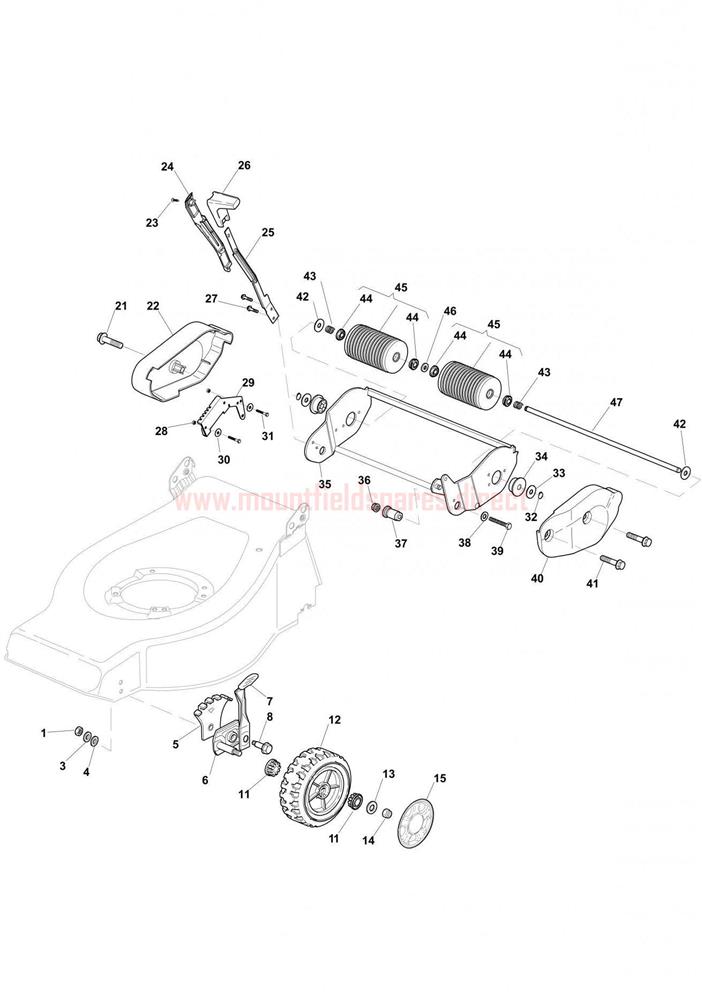

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
003112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
004112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
005322735547/0HEIGHT ADJUST QUADRANT£3.26 Add to
006381005082/0STUB AXLE£6.84 Add to
007481003285/1HEIGHT ADJUST LEVER£9.36 Add to
008122519811/0WHEEL BOLT£2.76 Add to
009381005084/0STUB AXLE£6.17 Add to
010481003286/0HEIGHT ADJUST LEVER£5.52 Add to
011122034508/0PLASTIC BUSH [WHITE]£2.76 Add to
012381007336/0FRONT WHEEL D=170£12.12 Add to
013112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
014112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
015322110381/0HUB CAP D=170 [GREY]£4.20 Add to
021112735594/0HEX-HEAD SCREW M6 x 30£2.76 Add to
022322060210/0RIGHT ROLLER COVER [RED]£7.48 Add to
023112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
024322109722/0ADJUST LEVER COVER£4.68 Add to
025322321505/0HEIGHT ADJUST LEVER [ROLLER]£16.56 Add to
026322399805/0HEIGHT ADJUST KNOB£13.32 Add to
027112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.76 Add to
028112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
029322735551/0HEIGHT ADJUST QUADRANT£9.36 Add to
030112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.76 Add to
031112789000/0SCREW TE M5 x 12£2.76 Add to
032112000957/0CIRCLIP D=10£1.65 Add to
033322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£2.64 Add to
034322034512/0ROLLER AXLE BUSH£2.76 Add to
035381005109/1ROLLER SUPPORT TD/CA/ML/R£127.20 Add to
036112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
037122785132/0ROLLER SUPPORT£4.92 Add to
038112523060/0WASHER M8 8.4 x 24 x 2£2.76 Add to
039112691700/0SCREW M8 x 55£2.64 Add to
040322060211/0LEFT ROLLER COVER [RED]£7.28 Add to
041112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
043122430210/0SPRING£2.76 Add to
044122122206/0BEARING£3.00 Add to
045381007400/0ROLLER ASSEMBLY£18.23 Add to
046112521370/0WASHER M12 13 24 x 2.5£2.76 Add to
047122033360/0ROLLER AXLE£6.84 Add to
048322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£2.64 Add to
