WHEEL SUSPENSION TRANSMISSION

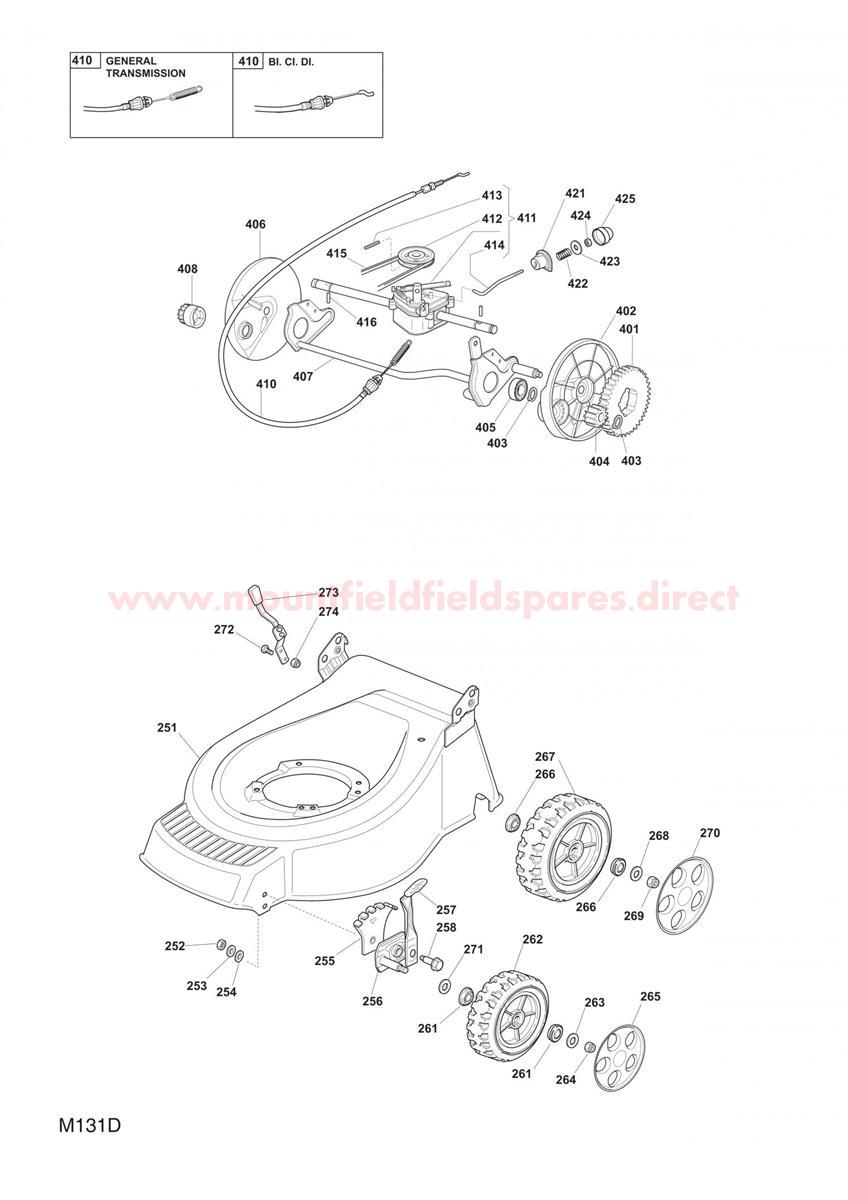

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield SP535 (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
253112583500/0WASHER M8 UNI 1751 WZ£1.96 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£1.96 Add to
255112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
255112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.96 Add to
256381005082/0STUB AXLE£6.37 Add to
257381003284/0HEIGHT ADJUST LEVER£9.38 Add to
258122519811/0WHEEL BOLT£1.96 Add to
261122122206/0BEARING£2.21 Add to
262381007351/0WHEEL D=170£13.01 Add to
263112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
264112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
265322110491/0HUB CAP D=170 [GREY]£2.35 Add to
266122122206/0BEARING£2.21 Add to
268112369500/0SPRING WASHER D=8£1.70 Add to
269112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
270322110417/0HUB CAP D=210 [GREY]£3.54 Add to
271112530150/0SPRING WASHER M12£1.70 Add to
272112789000/0SCREW TE M5 x 12£1.96 Add to
273381003279/2HEIGHT ADJUST LEVER£25.97 Add to
274112154330/0LOW SELF-LOCKING NUT M5£1.96 Add to
401122120105/1DRIVE GEAR WHEEL£10.30 Add to
402122600093/0LEFT WHEEL COVER£3.51 Add to
403112608600/0CIRCLIP D=12£1.98 Add to
404122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.33 Add to
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.65 Add to
406122600092/0RIGHT WHEEL COVER£3.51 Add to
407381000147/0REAR WHEELS AXLE£25.50 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.11 Add to
410381000668/1CLUTCH DRIVE CABLE£20.25 Add to
410381000672/0CLUTCH DRIVE CABLE£18.95 Add to
411181003076/1GEARBOX GT VE2002 EVO£118.37 Add to
411181003081/1GEARBOX [GREY]£86.73 Add to
412122601909/0PULLEY£5.72 Add to
413112645705/0ROLL PIN D=5 x 32£1.92 Add to
414112645705/0ROLL PIN D=5 x 32£1.92 Add to
414122033283/0GEARBOX ADJUSTING ROD£4.81 Add to
415135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£11.66 Add to
416122753000/0PIN D=5.2 x 25.65£1.96 Add to
421122041957/1SPRING GUIDE BUSH£1.96 Add to
422122450063/0SPRING£1.96 Add to
423322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.82 Add to
424112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
425122110230/0HUB COVER£1.96 Add to
