CHASSIS HANDLE assembly details for Mountfield SP474 (20100406) 2008 model

Parts list

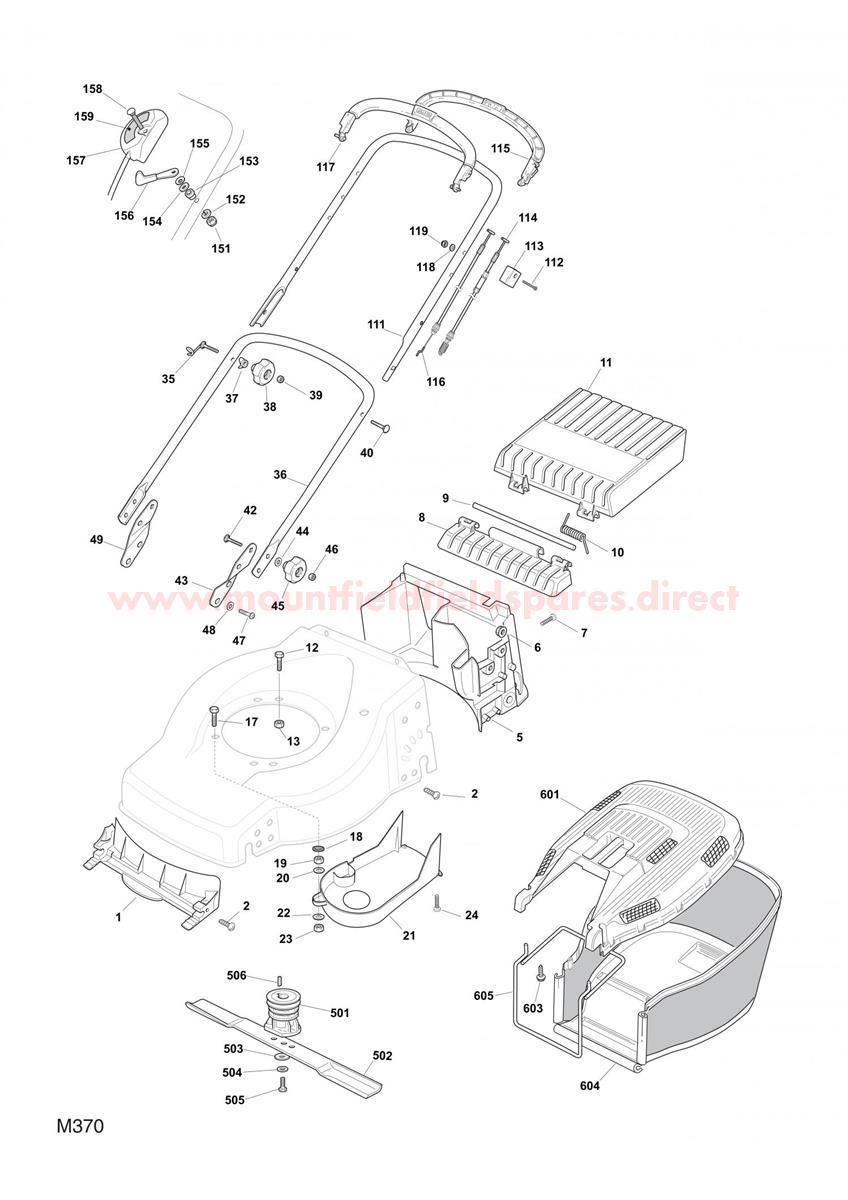

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001322108271/0PLASTIC FRONT BAFFLE£13.20 Add to
002112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
005322108272/2PLASTIC REAR BAFFLE£17.88 Add to
006122131750/0NUT M8£2.76 Add to
007112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
008322785136/1DEFLECTOR SUPPORT [BLACK]£4.20 Add to
009122517858/0DEFLECTOR ROD£6.00 Add to
010122450431/0DEFLECTOR SPRING£7.80 Add to
011322600099/2DEFLECTOR [BLACK]£5.52 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
017112691115/0HEX-HEAD SCREW M8 x 40£2.76 Add to
018112540060/0SERRATED LOCK WASHER M8£2.76 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
020122671651/0WASHER 8.3 x 22 x 2£3.00 Add to
021322060212/0BELT PROTECTION GUARD ES46£7.92 Add to
022325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.76 Add to
023112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
024112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
035181003801/1BOLT/PULL CORD GUIDE£3.98 Add to
036381006576/0LOWER HANDLE [BLACK]£38.40 Add to
037122680006/1PLASTIC WASHER£2.64 Add to
038322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
039112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
040112819201/0CARRIAGE BOLT M8 x 60£3.72 Add to
042112818900/0SCREW TTDQ M8 x 35£1.65 Add to
043322778425/0LEFT LOWER HANDLE BRACKET£10.08 Add to
044122671653/0WASHER 8.3 x 20 x 3£2.76 Add to
045322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
046112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
047112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.76 Add to
048112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
049322778423/0RIGHT LOWER HANDLE BRACKET£11.02 Add to
11181006579/0Handle (OBSOLETE)N/A
112112689500/0SCREW M6 x 40£2.76 Add to
113322551685/0CABLE HOLDER BLOCK£6.98 Add to
114381000659/0CLUTCH DRIVE CABLE£18.24 Add to
115381003297/1DRIVE CONTROL LEVER£20.76 Add to
116381000743/0ENGINE BRAKE CABLE£14.52 Add to
117381003298/1BRAKE CONTROL LEVER£29.99 Add to
118112521330/0WASHER M6 6.4 x 12 x 1.6£2.76 Add to
119112292100/0HEXAGON NUT M6£1.65 Add to
151112291000/0HEXAGON NUT M5£2.76 Add to
152112581500/0WASHER M5£2.76 Add to
153122171005/0THROTTLE SPACER£2.76 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.76 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.76 Add to
156381007220/0THROTTLE LEVER£24.00 Add to
157481007080/0THROTTLE CABLE£22.92 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.76 Add to
159114356702/0THROTTLE DECAL£2.76 Add to
501122465607/4BLADE BOSS D=22.2mm£9.84 Add to
502181004365/3BLADE 44cm£13.68 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.88 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.76 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.21 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.76 Add to
601322486122/0UPPER GRASSTOP [BLACK]£24.81 Add to
603112728686/0TAPTITE SCREW KA50 X 16£1.65 Add to
604181002229/0GRASSBAG [BLACK]£40.19 Add to
605181006419/0GRASSCATCHER FRAME£19.13 Add to
