CHASSIS HANDLE

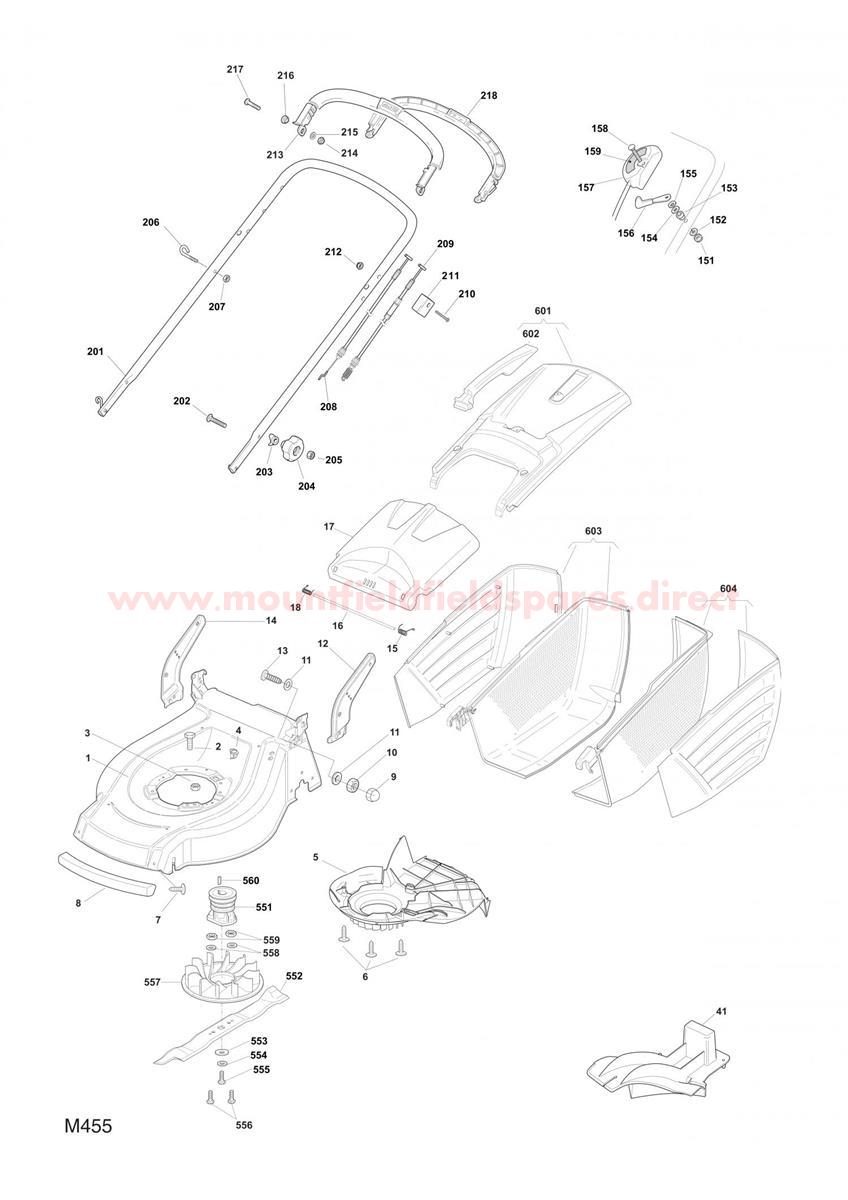

CHASSIS HANDLE assembly details for Mountfield QUIET514PD (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003712/0CHASSIS GREY£146.46 Add to
002119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004322291150/0RUBBER INSERT£2.06 Add to
005322060224/0BELT PROTECTION GUARD CA53 SILENT£21.55 Add to
006112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
00712735404/0SCREW 2009£3.64 Add to
008322485000/0PROTECTION GREY£11.98 Add to
009118203854/0NUT CAP M8 [BLACK]£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
012322778433/0BRACKET LEFT£26.27 Add to
013112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
014322778431/0BRACKET RIGHT£26.27 Add to
015122450451/0Spring-LH (OBSOLETE)N/A
016122517862/0PIN£8.42 Add to
017322600171/0STONE GUARD CA SILENT BLACK£21.96 Add to
018122450450/0Spring-R (OBSOLETE)N/A
041322140234/0MULCHING PLUG [CA53]£15.41 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£21.84 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
201381006691/0HANDLE UPPER£49.76 Add to
202112819121/0CARRIAGE BOLT M8 X 55£2.88 Add to
203122680006/1PLASTIC WASHER£1.91 Add to
204122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
205112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
206122430313/0PULL CORD GUIDE£4.37 Add to
207112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
208381030028/0ENGINE BRAKE CABLE£20.07 Add to
209381030029/0CLUTCH DRIVE CABLE£19.09 Add to
210112689500/0SCREW M6 x 40£2.06 Add to
211322551685/0CABLE HOLDER BLOCK£7.52 Add to
212112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
213381003330/0BRAKE LEVER ASSEMBLY-METAL ENDS£68.42 Add to
214112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
215112523010/0WASHER M4 X 4.3 X 16 X 1.5£4.01 Add to
216122041960/0FULCRUM BUSH£6.23 Add to
21722524328/0Pin (OBSOLETE)N/A
218381003297/1DRIVE CONTROL LEVER£22.49 Add to
551112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.75 Add to
552181004394/0BLADE£17.86 Add to
553122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
554112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
555112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
556112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
557322465634/0HUB FAN£12.00 Add to
558112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
559112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
560112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.75 Add to
601381486001/0GRASS-BOX UPPER PART BLACK£36.77 Add to
602322393630/0HANDLE BLACK£10.23 Add to
603381486003/0GRASSBOX RIGHT BLACK£47.39 Add to
604381486005/0GRASSBOX LEFT BLACK£43.89 Add to
