CHASSIS HANDLE

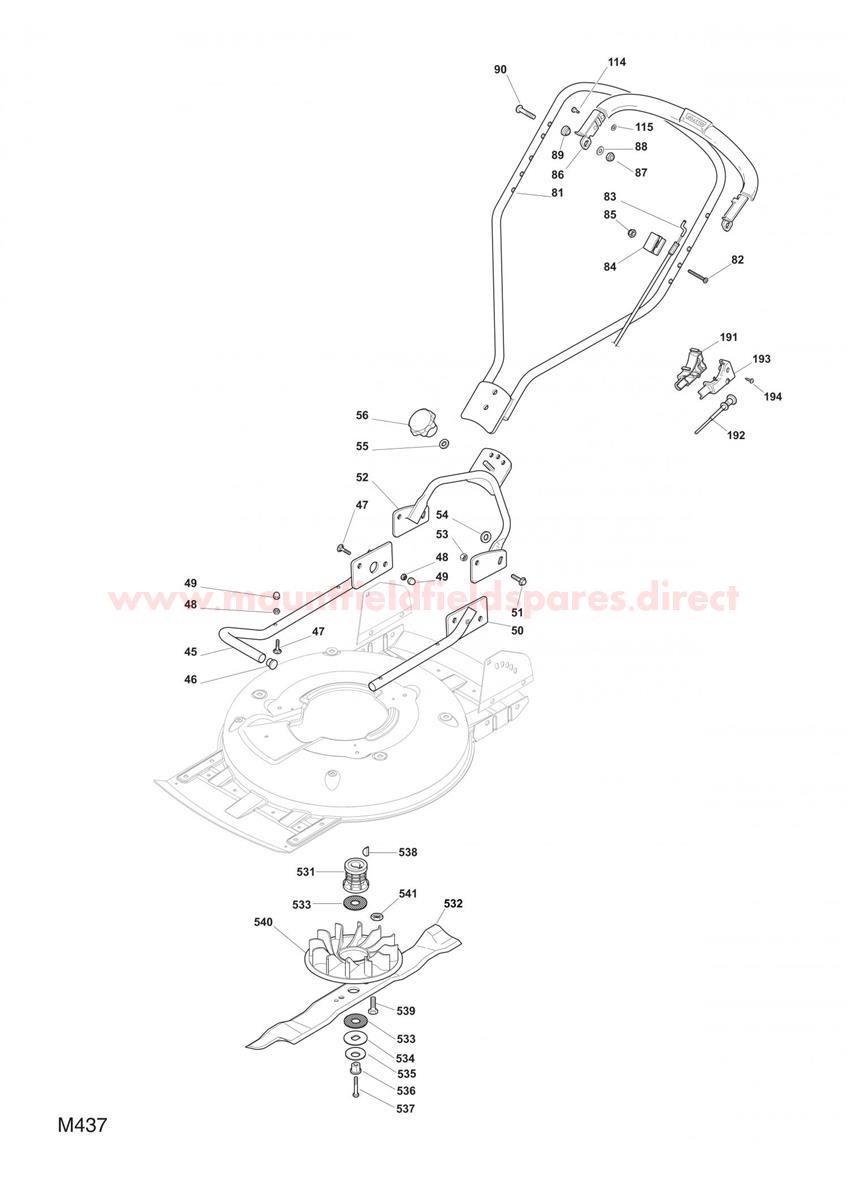

CHASSIS HANDLE assembly details for Mountfield MULTICLIP504PDQ4S (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
045381006383/0HANDLE LOWER 2008£44.46 Add to
046118566114/0HANDLE CAP [BLACK]£2.06 Add to
047112819100/0CARRIAGE BOLT M8 x 40£2.06 Add to
048112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
049118203854/0NUT CAP M8 [BLACK]£2.06 Add to
050381006379/0L/H LOWER HANDLE [BLACK] MCS50£38.44 Add to
051112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
052381006369/2MIDDLE HANDLE MC PRO [GREY]£107.93 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
055112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
056322399813/0HANDLE KNOB [BLACK]£11.87 Add to
081381006367/2STIGA PRO UPPER HANDLE ASS.Y MC BLACK£116.11 Add to
082112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
083181000730/0ENGINE BRAKE CABLE L=1157£13.77 Add to
084322551685/0CABLE HOLDER BLOCK£7.52 Add to
085112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086381003318/1ENGINE BRAKE LEVER£34.35 Add to
087112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
088112521330/0WASHER M6 6.4 x 12 x 1.6£2.06 Add to
089122671660/1WASHER£3.69 Add to
090112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
114122524342/0FIXING PIN£2.06 Add to
115112604897/0STARLOCK WASHER D=5£2.06 Add to
191322722804/1HOUSING R/H£3.64 Add to
192381000742/1CHOKE CONTROL CABLE£19.90 Add to
193322722805/1HOUSING L/H£4.11 Add to
194112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
531122465611/0BLADE BOSS D=22£16.16 Add to
532181004148/0MULCHING BLADE MC 50 SILENT£15.54 Add to
533322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
534322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
535112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
536122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
537112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
538112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
539112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
540322465635/0Fa (OBSOLETE)N/A
541112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
