WHEEL SUSPENSION TRANSMISSION

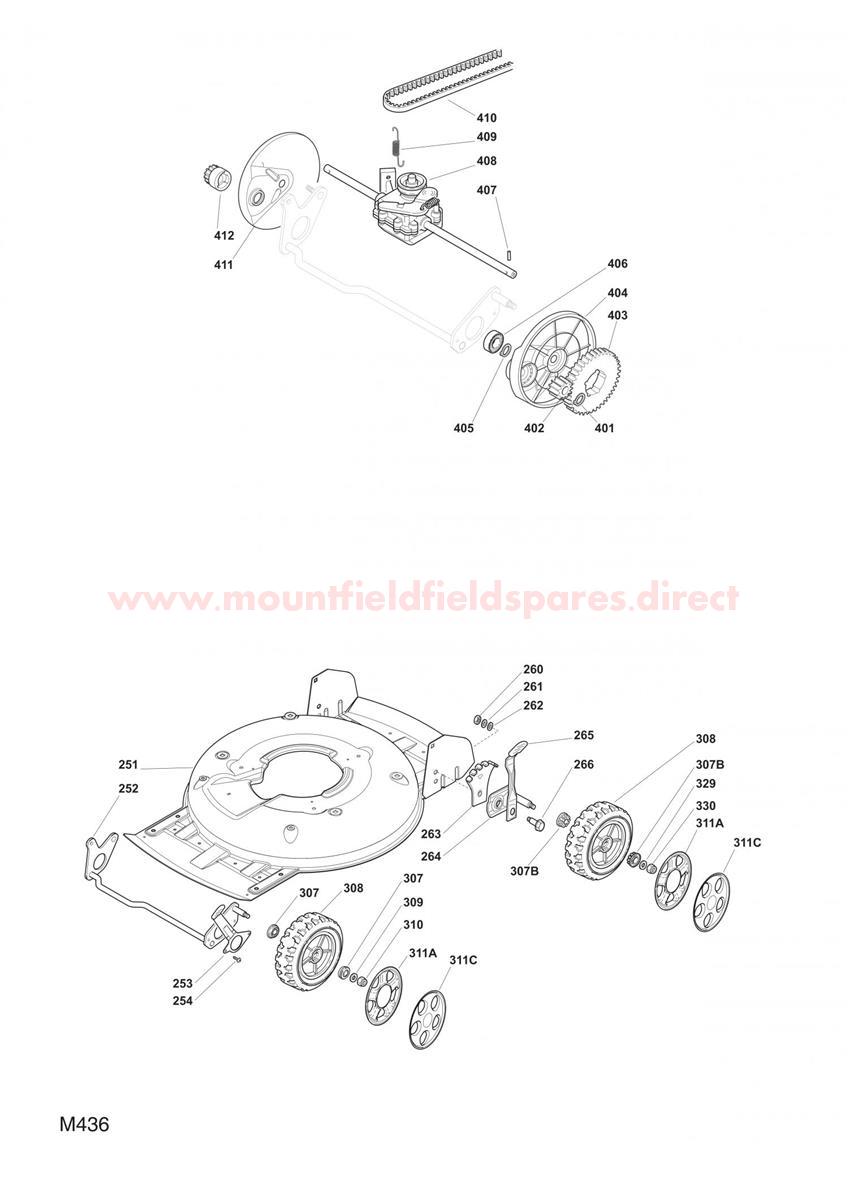

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield MULTICLIP501PD (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
252381002849/0FRONT WHEELS AXLE£39.80 Add to
253381003276/0HEIGHT ADJUST LEVER£19.36 Add to
254112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
260112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
261112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
262112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
263322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
264381005082/0STUB AXLE£6.69 Add to
265481003286/0HEIGHT ADJUST LEVER£5.19 Add to
266122519811/0WHEEL BOLT£2.06 Add to
307122122206/0BEARING£2.32 Add to
307B122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
309112369500/0SPRING WASHER D=8£1.79 Add to
310112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
311A322110382/0HUB CAP D=210 [GREY]£4.27 Add to
311C322110417/0HUB CAP D=210 [GREY]£3.72 Add to
329112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
330112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
401112608600/0CIRCLIP D=12£2.08 Add to
402122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
403122120105/1DRIVE GEAR WHEEL£10.82 Add to
404122600092/0RIGHT WHEEL COVER£3.69 Add to
405112608600/0CIRCLIP D=12£2.08 Add to
406119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
407122753000/0PIN D=5.2 x 25.65£2.06 Add to
408181003095/0GEARBOX [BLACK] DOG CLUTCH£97.03 Add to
409122450437/0SPRING£3.55 Add to
410135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
411122600093/0LEFT WHEEL COVER£3.69 Add to
412122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
