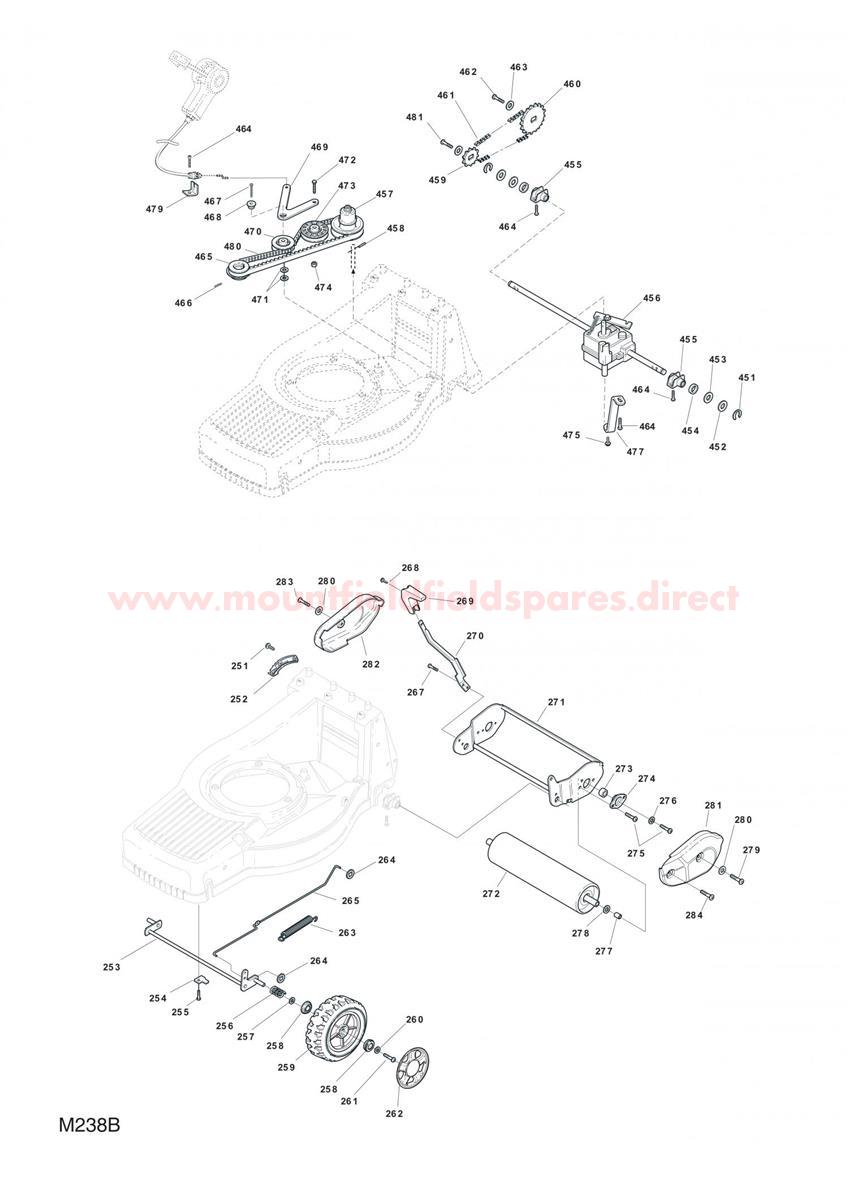

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield M484R M480R-ES (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

251112728300/0SELF-TAPPING SCREW K50 x 22£2.76 Add to
252322735553/0HEIGHT ADJUST QUADRANT£9.36 Add to
253381002845/0FRONT WHEELS AXLE£31.95 Add to
254322545160/0FRONT AXLE PLATE£3.60 Add to
255112735664/0SCREW M6 x 16£1.65 Add to
256122430210/0SPRING£2.76 Add to
257112521370/0WASHER M12 13 24 x 2.5£2.76 Add to
258122122206/0BEARING£3.00 Add to
259381007351/0WHEEL D=170£12.98 Add to
260112521460/0WASHER M6 6.5 x 22 x 1.5£1.65 Add to
261112735662/1SCREW TCB TORX M6 x 12£3.48 Add to
262322110381/0HUB CAP D=170 [GREY]£4.20 Add to
263122446181/0SPRING£7.20 Add to
264112604898/0STARLOCK WASHER D=7£1.65 Add to
265122033325/0HEIGHT ADJUST TIE ROD£12.31 Add to
267112735664/0SCREW M6 x 16£1.65 Add to
268112728690/0SELF-TAP SCREW KA50 x 25£1.65 Add to
269322399805/0HEIGHT ADJUST KNOB£13.32 Add to
270322321505/0HEIGHT ADJUST LEVER [ROLLER]£16.56 Add to
271381005115/0ROLLER SUPPORT ASSEMBLY 50cm£115.20 Add to
272381007403/0ROLLER ASSEMBLY [50]£260.57 Add to
273119216036/0BEARING 6201-2RS£9.72 Add to
274322207323/0BEARING FLANGE£18.00 Add to
275112735662/1SCREW TCB TORX M6 x 12£3.48 Add to
276112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
277122170820/0ROLLER SPACER£16.92 Add to
278112523100/0WASHER M12 14 x 36 x 3£2.76 Add to
279112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
280112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
281322060202/0LEFT ROLLER COVER [RED]£3.48 Add to
282322060201/0RIGHT ROLLER CHAIN COVER [RED]£3.12 Add to
283112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
284112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
451112000957/0CIRCLIP D=10£1.65 Add to
452122671659/0WASHER M12 13 x 24 x 2£2.76 Add to
453112520032/0WASHER 12 x 18 x 1£2.76 Add to
454119035152/0SEAL RING 12 x 18 x 4£5.52 Add to
455322785153/0GEARBOX SUPPORT BRACKET£15.12 Add to
456181003087/1GEARBOX 4 SPEED£213.44 Add to
457122601916/0VARIATOR PULLEY£58.80 Add to
458112645700/0PIN£2.76 Add to
4591111-3423-01SPROCKET 10T£14.28 Add to
4601111-3424-01SPROCKET 21T£17.05 Add to
4611111-3562-01ROLLER CHAIN (RIVETED)£18.96 Add to
462112735662/1SCREW TCB TORX M6 x 12£3.48 Add to
463112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
464112735664/0SCREW M6 x 16£1.65 Add to
465122601917/0DRIVE ENGINE PULLEY D=22mm£22.52 Add to
466112714312/0DOWEL PIN M6 x 12£2.76 Add to
467112735669/0SCREW TCB TORX M6 x 50£2.76 Add to
468122671656/0WASHER£6.60 Add to
469322320001/0TENSION ARM£15.04 Add to
470122601915/0TENSION PULLEY£20.16 Add to
471112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
472112674550/0SCREW TE M6 x 30£2.76 Add to
473122601914/0BELT GUIDE PULLEY£20.28 Add to
474112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
475112728300/0SELF-TAPPING SCREW K50 x 22£2.76 Add to
477322778409/0GEARBOX SUPPORT BRACKET£14.88 Add to
479322806619/0WZ SPEED CABLE FIX.SUPPORT TURBO 4S£5.40 Add to
480135064378/0TRAPEZOIDAL BELT XPZ LP=780£13.68 Add to
481112735592/0SELF-TAP SCREW M6 x 20£2.76 Add to
