CHASSIS HANDLE

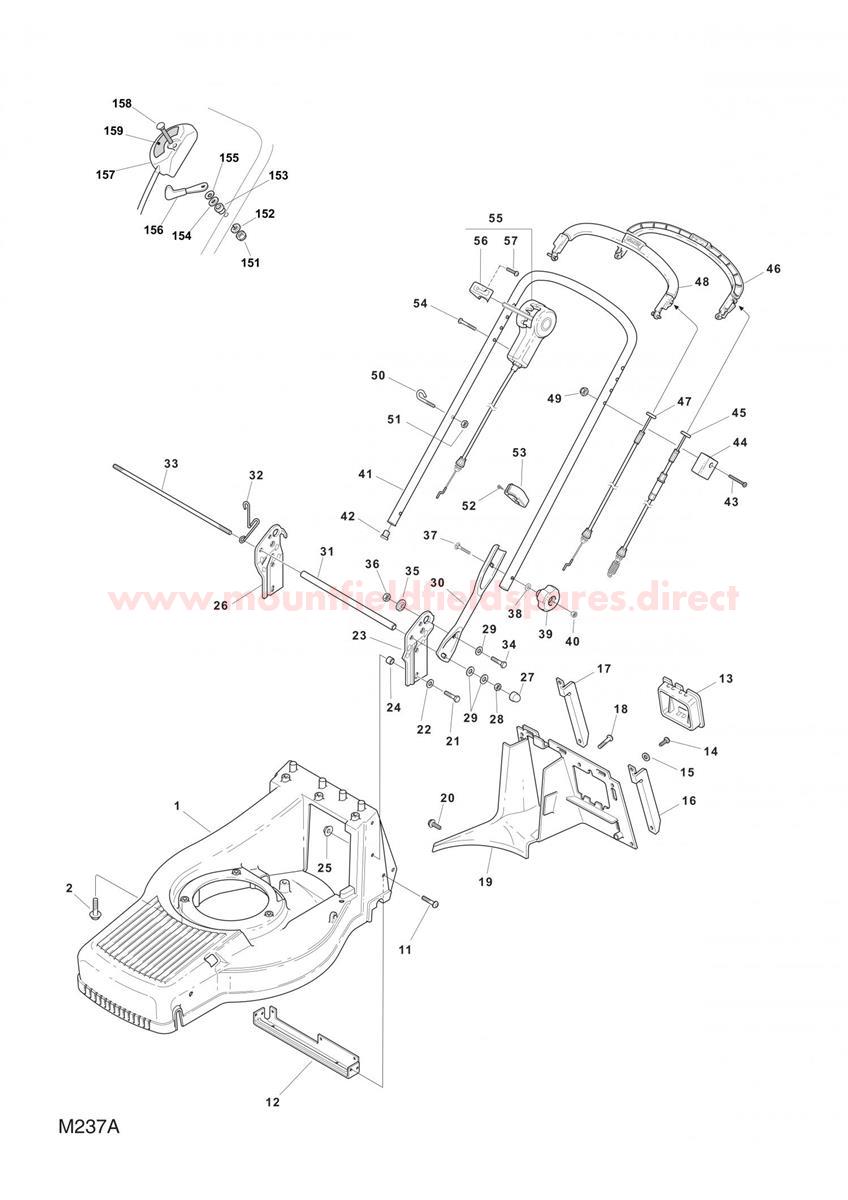

CHASSIS HANDLE assembly details for Mountfield M484R M480R-ES (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002659/0CHASSIS ROLLER RED TU50£451.88 Add to
002112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
011112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
012322608521/0DECK STRUT£34.58 Add to
013322109531/0BATTERY COVER£2.87 Add to
014112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
015112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
016322775183/0LEFT BRACKET (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
017322775185/0RIGHT BRACKET (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
018112735664/0SCREW M6 x 16£2.02 Add to
019322108278/0PLASTIC REAR BAFFLE£41.16 Add to
020112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
021112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
022112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
023322778411/0LEFT HANDLE BRACKET (OBSOLETE) (OBSOLETE)N/A
024122041959/0BUSH£5.58 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026322778413/0RIGHT HANDLE BRACKET (OBSOLETE) (OBSOLETE)N/A
027118203854/0NUT CAP M8 [BLACK]£2.06 Add to
028112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
029112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
030381006614/0LOWER HANDLE [BLACK]£42.53 Add to
031322869711/0SPACER TUBE (OBSOLETE) (OBSOLETE)N/A
032122430312/0LOWER PULL CORD GUIDE£6.55 Add to
033122517702/1HANDLE ROD (OBSOLETE)N/A
034112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
035322041955/0METAL HANDLE BUSH£2.06 Add to
036112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
037112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
038122680006/1PLASTIC WASHER£1.91 Add to
039122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
040112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
041381006619/1UPPER HANDLE [BLACK]£55.10 Add to
042118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
043112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
044322551685/0CABLE HOLDER BLOCK£7.52 Add to
045381000697/0CLUTCH DRIVE CABLE£18.12 Add to
046381003297/1DRIVE CONTROL LEVER£22.49 Add to
047181000686/0ENGINE BRAKE CABLE L=975£13.77 Add to
047181000688/0ENGINE BRAKE CABLE L=1050£13.91 Add to
048381003298/1BRAKE CONTROL LEVER£32.97 Add to
049112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
050122430313/0PULL CORD GUIDE£4.37 Add to
051112292100/0HEXAGON NUT M6£1.47 Add to
052112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
053322192001/0CABLE CLAMP£2.06 Add to
054112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
055381007097/04 SPEED CABLE ASSEMBLY£42.53 Add to
056322399809/04 SPEED CABLE KNOB£2.06 Add to
057112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£21.84 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
15914356703/0Label (B&S) (OBSOLETE)N/A
