BLADE GRASS COLLECTOR

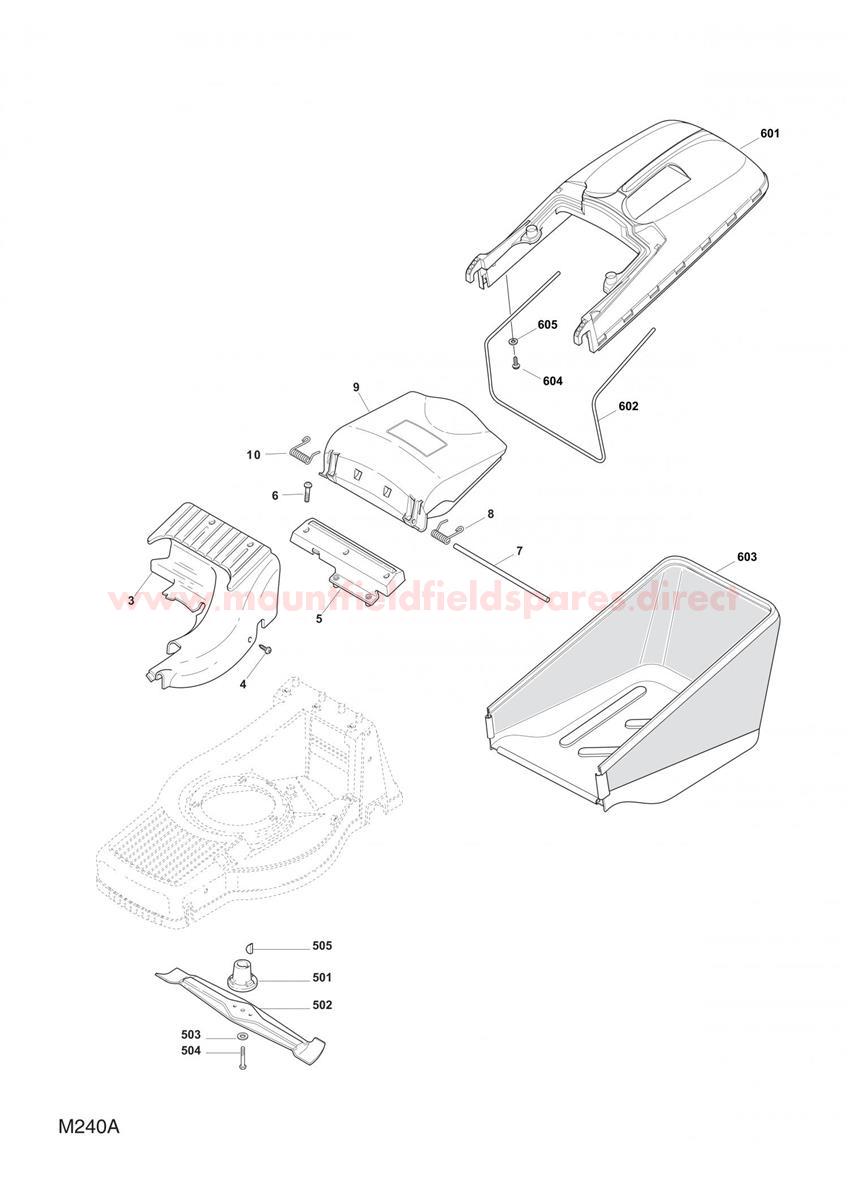

BLADE GRASS COLLECTOR assembly details for Mountfield M484R M480R-ES (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003322060153/1DECK COVER TU50 [RED] (OBSOLETE) (OBSOLETE)N/A
004112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
005322785164/0DEFLECTOR SUPPORT [BLACK]£6.09 Add to
006112735664/0SCREW M6 x 16£2.02 Add to
007122517906/1DEFLECTOR ROD£3.96 Add to
008122450420/1LH DEFLECTOR SPRING£2.06 Add to
009381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
010122450410/1RH DEFLECTOR SPRING£2.06 Add to
501122465618/0BLADE BOSS D=22.2£9.68 Add to
502181004143/0BLADE TURBO 48£24.81 Add to
503112530140/0WASHER M10£2.32 Add to
504112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
505112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486014/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£21.66 Add to
602122608522/0GRASSCATCHER FRAME£24.95 Add to
603181002242/0GRASSBAG "STIGA" TA50-55R [BLACK] (OBSOLETE) (OBSOLETE)N/A
604112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
605112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
