4810 PD

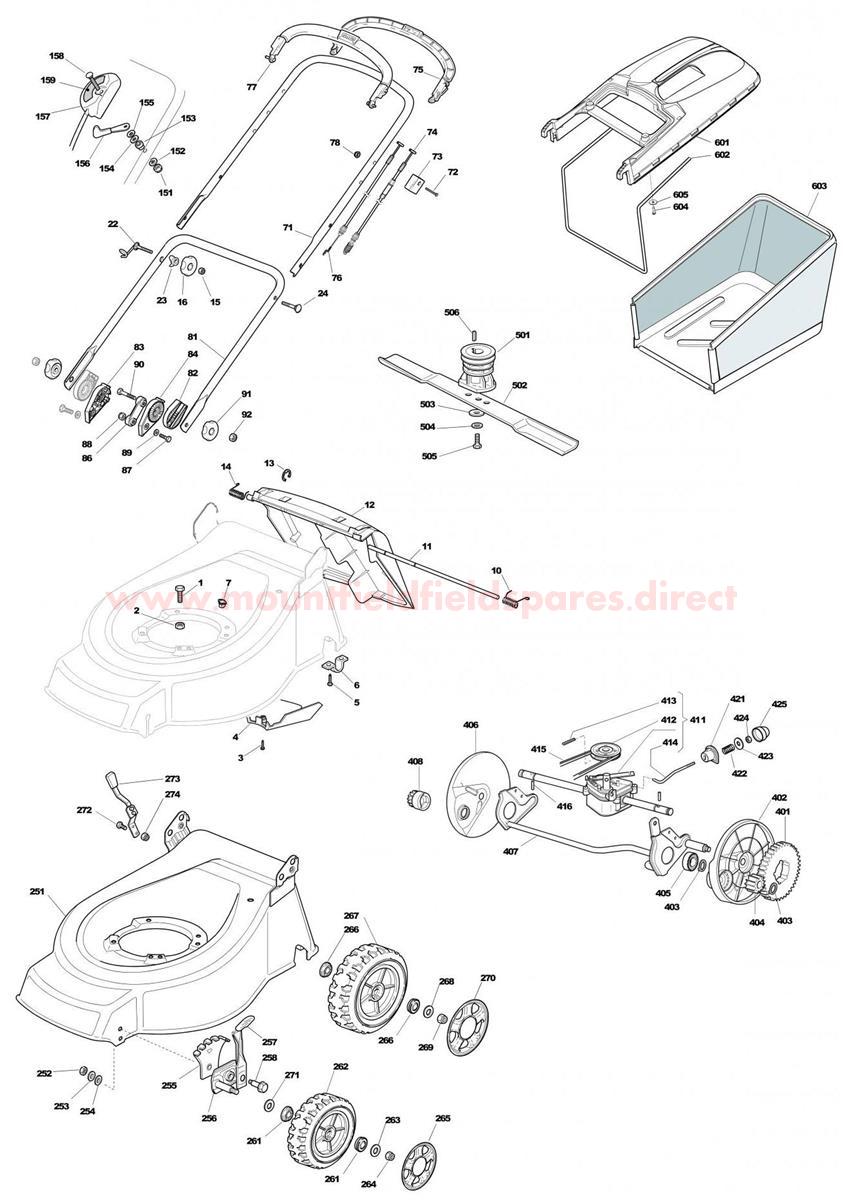

4810 PD assembly details for Mountfield 4810PD (20100705) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.76 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
002112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.76 Add to
003112727791/0CROSS-HEAD SCREW M6 x 20£1.65 Add to
004122060192/0BELT PROTECTION GUARD [TD/TDL 48]£6.24 Add to
005112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.76 Add to
006322545152/0AXLE BRACKET£2.76 Add to
007322291150/0RUBBER INSERT£2.76 Add to
010122450420/1LH DEFLECTOR SPRING£2.76 Add to
011122517906/1DEFLECTOR ROD£4.44 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£19.56 Add to
013112000930/0CIRCLIP D=6£1.65 Add to
014122450410/1RH DEFLECTOR SPRING£2.76 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
016322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
022181003801/1BOLT/PULL CORD GUIDE£3.98 Add to
023122680006/1PLASTIC WASHER£2.64 Add to
024112819201/0CARRIAGE BOLT M8 x 60£3.72 Add to
071112728531/0SELF-TAP SCREW 4.8 x 25£2.52 Add to
072112689500/0SCREW M6 x 40£2.76 Add to
073322551685/0CABLE HOLDER BLOCK£6.98 Add to
074381000709/2CLUTCH DRIVE CABLE£18.84 Add to
075381003297/1DRIVE CONTROL LEVER£20.76 Add to
076181000720/1ENGINE BRAKE CABLE L=1055£12.96 Add to
077381003298/1BRAKE CONTROL LEVER£29.99 Add to
078112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
081381006532/0LOWER HANDLE [BLACK]£36.00 Add to
082322785081/1HANDLE SUPPORT£5.34 Add to
083122785082/0RIGHT INTERNAL SUPPORT£4.20 Add to
084122785083/1LEFT INTERNAL SUPPORT£4.09 Add to
086122551575/0INSIDE PLATE£2.76 Add to
087112793701/0HEX-HEAD SCREW M8 x 30£1.65 Add to
088112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
089112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
090112691810/0SCREW TE M8 x 60£2.64 Add to
091322399804/1HANDWHEEL w/o NUT M8 [BLACK]£4.68 Add to
092112293202/0HEXAGONAL NUT M8 UNI 5588£2.76 Add to
151112291000/0HEXAGON NUT M5£2.76 Add to
152112581500/0WASHER M5£2.76 Add to
153122171005/0THROTTLE SPACER£2.76 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.76 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.76 Add to
156381007279/1THROTTLE LEVER£2.76 Add to
157481007080/0THROTTLE CABLE£22.92 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.76 Add to
159114356702/0THROTTLE DECAL£2.76 Add to
251381002403/1STEEL DECK [RED] TD484£192.65 Add to
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.76 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.76 Add to
255112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
255112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.76 Add to
256381005082/0STUB AXLE£6.84 Add to
257381003284/0HEIGHT ADJUST LEVER£9.63 Add to
258122519811/0WHEEL BOLT£2.76 Add to
261122122206/0BEARING£3.00 Add to
262381007351/0WHEEL D=170£12.98 Add to
263112521350/0WASHER M8 8.4 x 16 x 1.6£2.76 Add to
264112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
265322110381/0HUB CAP D=170 [GREY]£4.20 Add to
266122122206/0BEARING£3.00 Add to
268112369500/0SPRING WASHER D=8£2.52 Add to
269112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
270322110382/0HUB CAP D=210 [GREY]£4.71 Add to
271112530150/0SPRING WASHER M12£2.52 Add to
272112789000/0SCREW TE M5 x 12£2.76 Add to
273381003279/2HEIGHT ADJUST LEVER£24.96 Add to
274112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
401122120105/1DRIVE GEAR WHEEL£10.48 Add to
402122600093/0LEFT WHEEL COVER£4.20 Add to
403112608600/0CIRCLIP D=12£1.65 Add to
404122570120/1LEFT PINION Z10 GEAR£8.66 Add to
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£4.32 Add to
406122600092/0RIGHT WHEEL COVER£4.20 Add to
407381000147/0REAR WHEELS AXLE£24.53 Add to
408122570110/1RIGHT PINION Z10 GEAR£8.45 Add to
411181003076/1GEARBOX GT VE2002 EVO£110.40 Add to
412122601909/0PULLEY£6.24 Add to
413112645705/0ROLL PIN D=5 x 32£1.65 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.40 Add to
415135063800/0TRAPEZOIDAL BELT Z 27 LP=710£8.50 Add to
416122753000/0PIN D=5.2 x 25.65£2.76 Add to
421122041957/1SPRING GUIDE BUSH£2.76 Add to
422122450063/0SPRING£2.76 Add to
423322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£2.64 Add to
424112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.76 Add to
425122110230/0HUB COVER£2.76 Add to
501122465607/4BLADE BOSS D=22.2mm£9.84 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.88 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.76 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.21 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.76 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£21.00 Add to
602122608525/2GRASSCATCHER FRAME£18.57 Add to
603181002211/0LCGRASSBAG [BLACK]£45.96 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.76 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.76 Add to
