WHEEL SUSPENSION

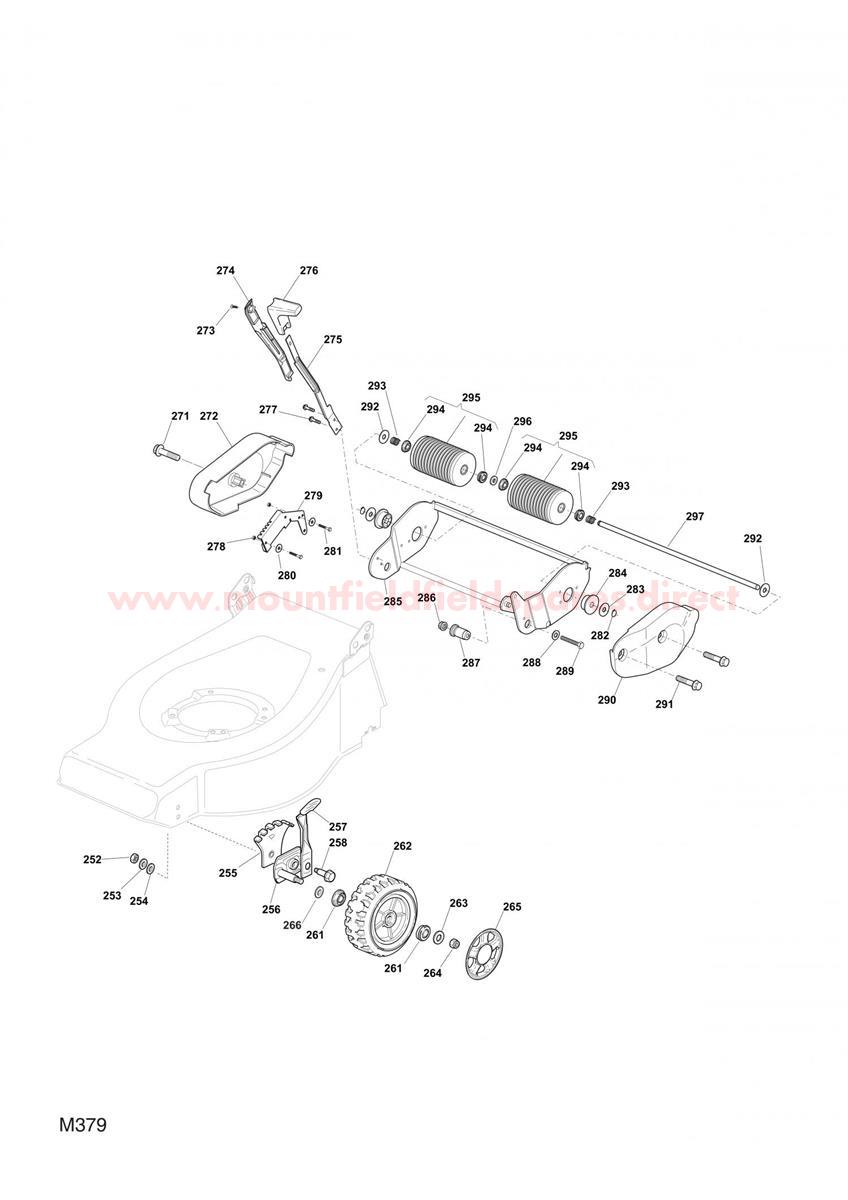

WHEEL SUSPENSION assembly details for Mountfield 461R HP 462R HP (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
255322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
256381005082/0STUB AXLE£6.69 Add to
257481003285/1HEIGHT ADJUST LEVER£9.54 Add to
258122519811/0WHEEL BOLT£2.06 Add to
261122122206/0BEARING£2.32 Add to
262381007351/0WHEEL D=170£13.66 Add to
263112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
264112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
265322110381/0HUB CAP D=170 [GREY]£3.69 Add to
266112530150/0SPRING WASHER M12£1.79 Add to
271112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
272322060201/0RIGHT ROLLER CHAIN COVER [RED]£2.47 Add to
273112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
274322109722/0ADJUST LEVER COVER£4.23 Add to
275322321505/0HEIGHT ADJUST LEVER [ROLLER]£17.72 Add to
276322399805/0HEIGHT ADJUST KNOB£14.05 Add to
277112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
278112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
279322735551/0HEIGHT ADJUST QUADRANT£9.54 Add to
280112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
281112789000/0SCREW TE M5 x 12£2.06 Add to
282112000957/0CIRCLIP D=10£0.79 Add to
283322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
284322034512/0ROLLER AXLE BUSH£2.06 Add to
285381005109/1ROLLER SUPPORT TD/CA/ML/R£143.37 Add to
286112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
287122785132/0ROLLER SUPPORT£4.52 Add to
288112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
289112691700/0SCREW M8 x 55£1.91 Add to
290322060202/0LEFT ROLLER COVER [RED]£2.87 Add to
291112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
292322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
293122430210/0SPRING£2.06 Add to
294122122206/0BEARING£2.32 Add to
295381007400/0ROLLER ASSEMBLY£19.61 Add to
296112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
297122033360/0ROLLER AXLE£6.69 Add to
