WHEEL SUSPENSION

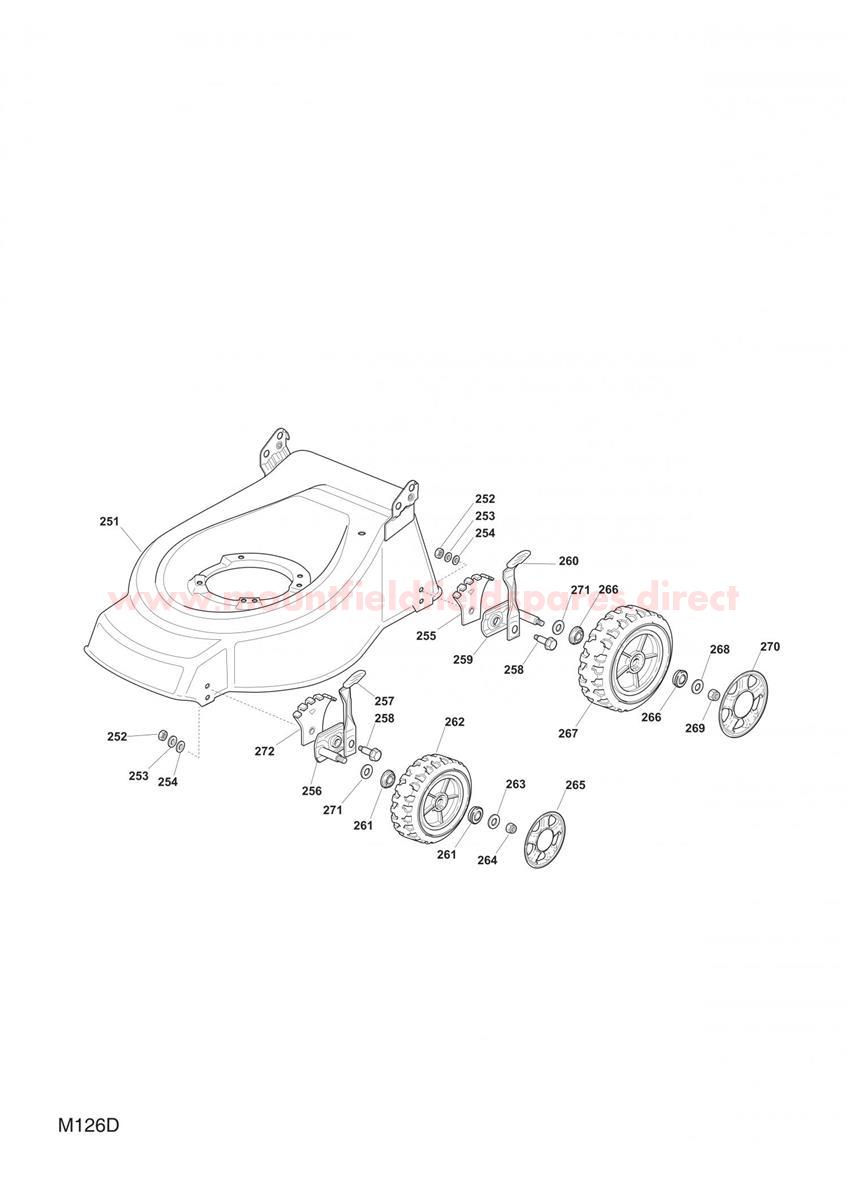

WHEEL SUSPENSION assembly details for Mountfield 460HP 461HP (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251381001339/0STEEL DECK TD48 [RED]£195.66 Add to
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
255322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
256381005082/0STUB AXLE£6.69 Add to
257381003284/0HEIGHT ADJUST LEVER£9.85 Add to
258122519811/0WHEEL BOLT£2.06 Add to
259381005084/0STUB AXLE£5.92 Add to
260481003286/0HEIGHT ADJUST LEVER£5.19 Add to
261122122206/0BEARING£2.32 Add to
262381007351/0WHEEL D=170£13.66 Add to
263112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
264112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
265322110381/0HUB CAP D=170 [GREY]£3.69 Add to
266122122206/0BEARING£2.32 Add to
268112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
269112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
270322110382/0HUB CAP D=210 [GREY]£4.27 Add to
271112530150/0SPRING WASHER M12£1.79 Add to
272112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
272112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
