WHEEL SUSPENSION

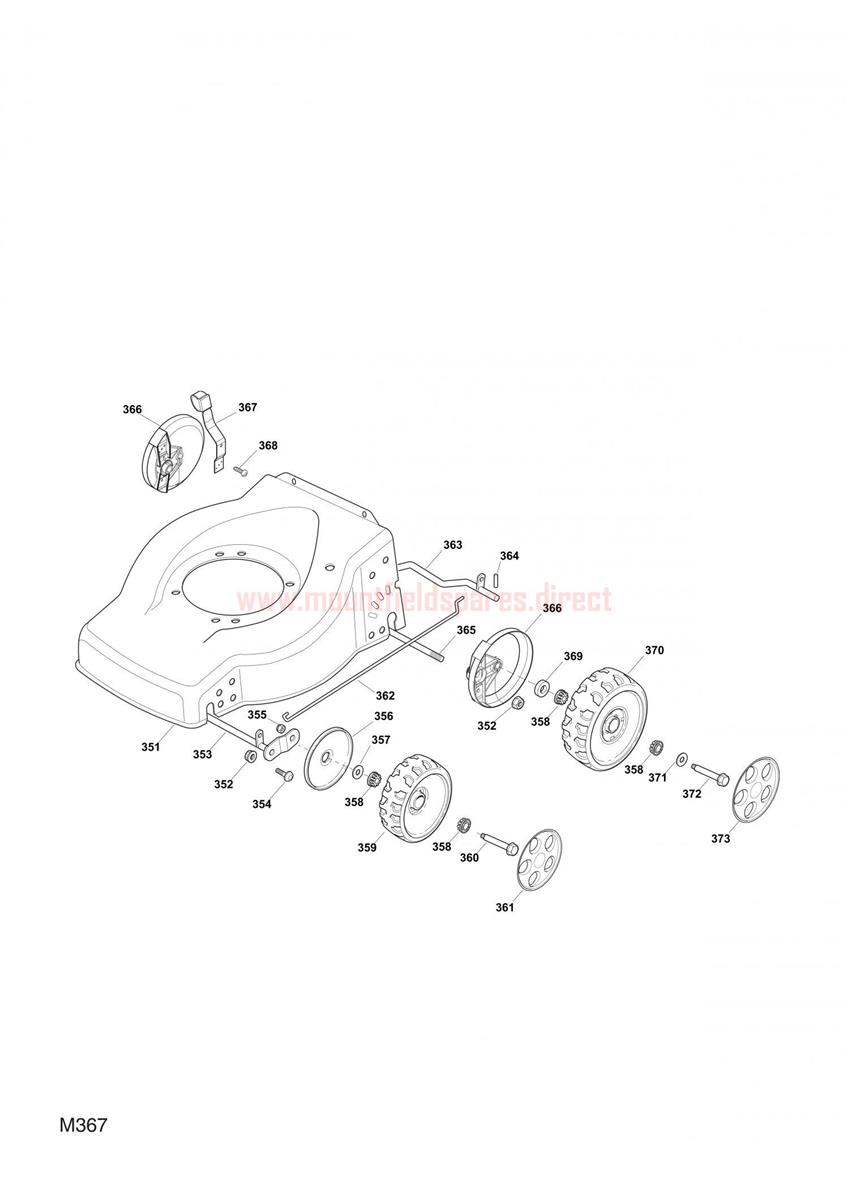

WHEEL SUSPENSION assembly details for Mountfield HP474 (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
351381002538/0STEEL DECK ES/ESL46 [RED]£110.66 Add to
35181002553/0NO LONGER AVAILABLE (OBSOLETE)N/A
352122131750/0NUT M8£2.06 Add to
353381000153/0FRONT WHEELS AXLE£54.79 Add to
354112760600/0SCREW M8 x 16£1.19 Add to
355112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
356322600095/0INNER WHEEL COVER D=165£2.06 Add to
357325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
358122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
359322686091/1WHEEL D=165mm£7.10 Add to
360122524341/0WHEEL BOLT£2.87 Add to
361322110491/0HUB CAP D=170 [GREY]£2.47 Add to
362122033317/0HEIGHT ADJUST TIE ROD£15.95 Add to
363381000159/0REAR WHEELS AXLE£24.95 Add to
364122753001/0PIN D=4 x 32£2.06 Add to
365122033369/0REAR AXLE ROD£8.28 Add to
366322600106/1INNER WHEEL COVER D=190£7.10 Add to
367381003303/0REAR HEIGHT ADJUST LEVER£17.86 Add to
368112728689/0SCREW KA50 x 12£1.79 Add to
369322170622/0WHEEL SPACER£1.79 Add to
370322686092/0WHEEL D=190£6.27 Add to
371112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
372112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
373322110417/0HUB CAP D=210 [GREY]£3.72 Add to
