Wheel Suspension

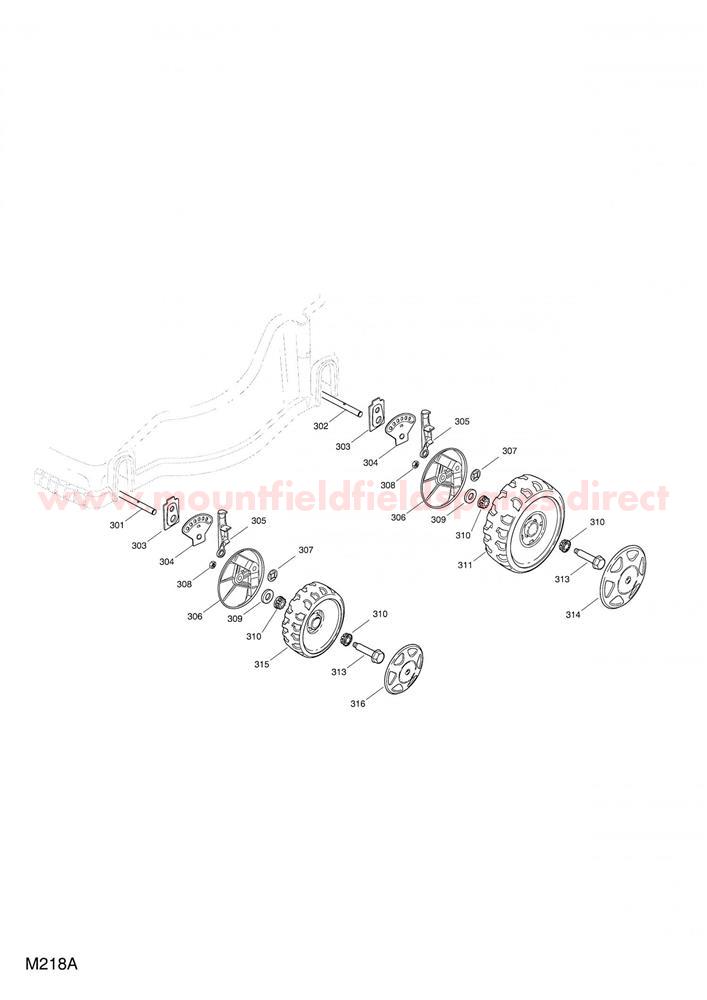

Wheel Suspension assembly details for Mountfield PWR, HP410, PRMA (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
3011117-1380-01Wheel shaft (OBSOLETE)N/A
3021117-1381-01Shaft (OBSOLETE)N/A
30322785135/0LEVEL WHEEL SUPPORT EP420 2009 (OBSOLETE)N/A
304322735555/0WHEELS ADJUSTMENT SECTOR EP420£8.32 Add to
305381003306/0HEIGHT ADJUST LEVER£6.69 Add to
306322600170/0INNER WHEEL COVER D=165£10.49 Add to
307MX1242PUSH ON FIX£5.21 Add to
308112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
309325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
310122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
311322686092/0WHEEL D=190£6.27 Add to
313122524341/0WHEEL BOLT£2.87 Add to
31422110468/0Hub cap (OBSOLETE)N/A
315322686091/1WHEEL D=165mm£7.10 Add to
31622110467/0Hub cap (OBSOLETE)N/A
