Electric Starter

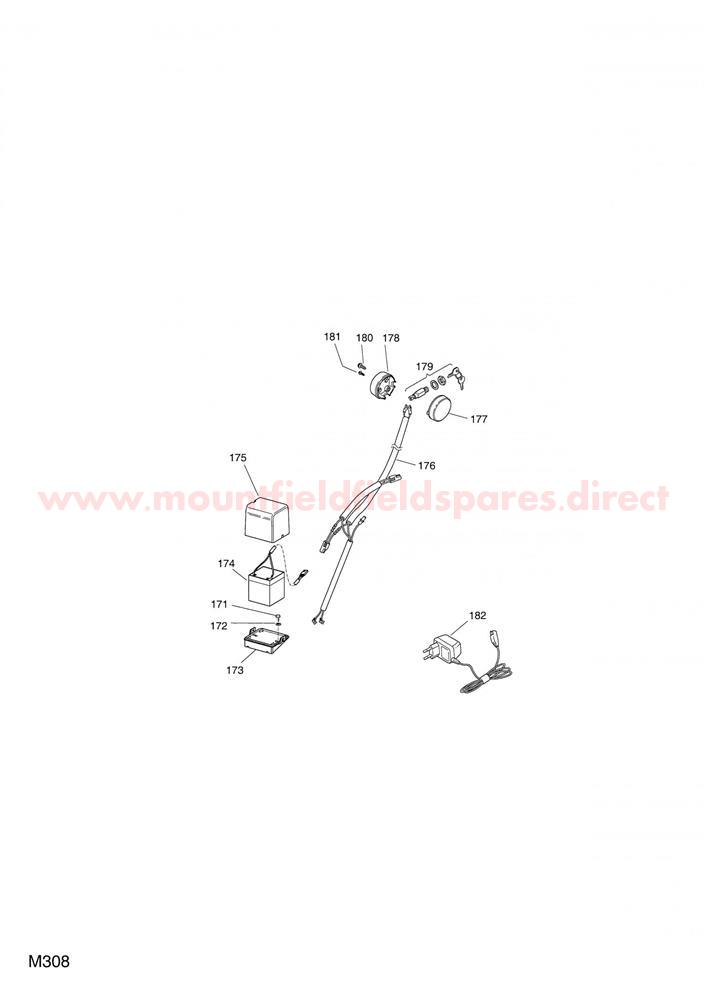

Electric Starter assembly details for Mountfield 510, 510PD-ES, 511PD (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
171112731590/0SELF-TAPPING SCREW 3.5 x 19£2.06 Add to
172112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
173322785123/0BATTERY SUPPORT [BLACK]£5.32 Add to
174118120064/0BATTERY 12V 4.5AH c/w FG20451 CABLE£47.97 Add to
175322109530/0BATTERY COVER£5.12 Add to
176118204192/3ELECTRIC START CABLE£41.16 Add to
177322722801/0RIGHT IGNITION COVER£1.91 Add to
178322722800/0LEFT IGNITION COVER£10.91 Add to
179118450051/0IGNITION SWITCH ASSEMBLY£18.74 Add to
180112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
181112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.14 Add to
182118204121/1LCBATTERY CHARGER CB03 UK£32.99 Add to
