CHASSIS

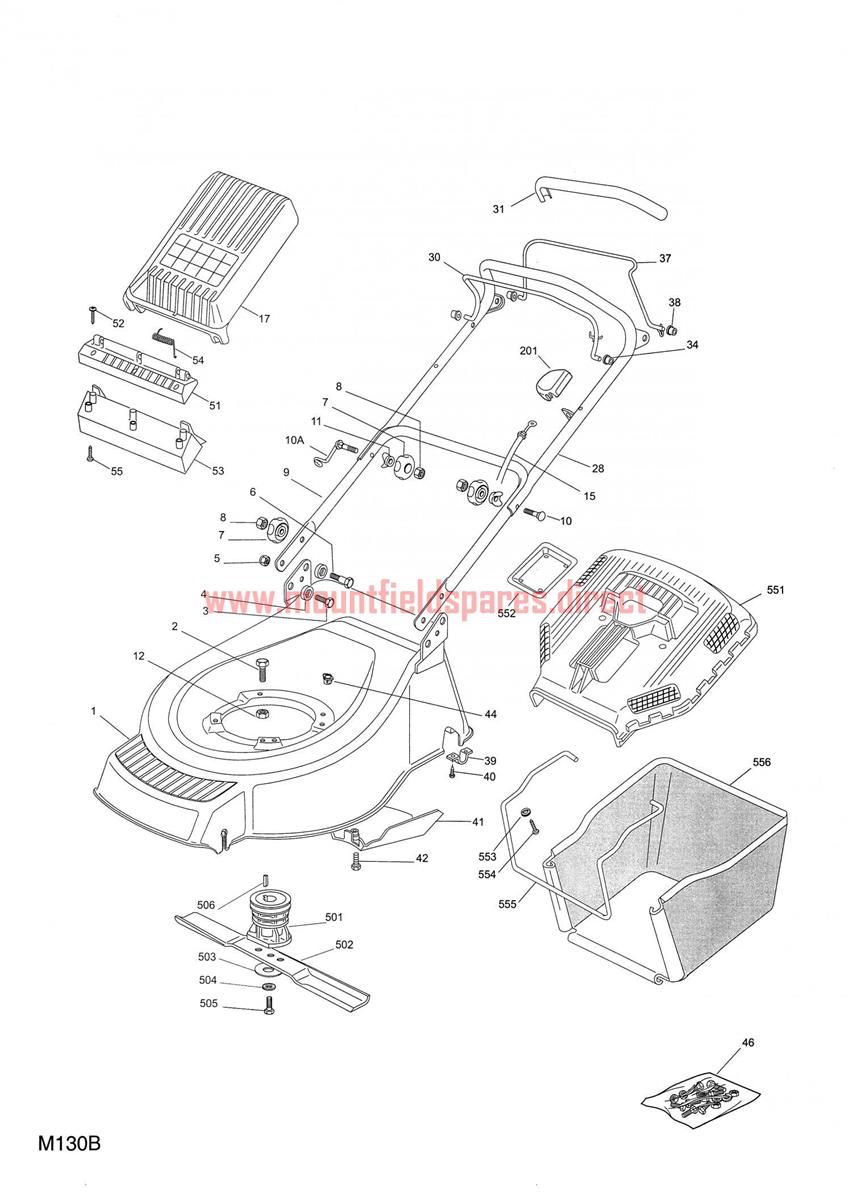

CHASSIS assembly details for Mountfield SP530 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002550/0STEEL DECK ML53 TR [GREY] (1136-1514-01) (OBSOLETE)N/A
002112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
003112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
004322041955/0METAL HANDLE BUSH£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
007122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
0091136-1193-01Handle-lower (OBSOLETE)N/A
010112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
011122680006/1PLASTIC WASHER£1.91 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015181000643/0ENGINE BRAKE CABLE L=1120£15.28 Add to
01722600071/1Flap-red (OBSOLETE)N/A
028381007024/0UPPER HANDLE [BLACK]£34.02 Add to
030181003291/3ENGINE BRAKE LEVER£14.66 Add to
031122291050/0HANDLE GRIP [BLACK]£14.58 Add to
034122041966/0CONTROL LEVER BUSH£2.06 Add to
037181003288/1DRIVE CONTROL LEVER£12.00 Add to
038322041965/1DRIVE LEVER BUSH£2.06 Add to
039322545152/0AXLE BRACKET£2.06 Add to
040112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.06 Add to
041122060193/0BELT PROTECTION GUARD [R/TD 53]£6.01 Add to
042112728903/0SCREW£1.69 Add to
044322291150/0RUBBER INSERT£2.06 Add to
046381008637/1SCREW ASSEMBLY KIT TDL 53£22.10 Add to
051322785119/0DEFLECTOR SUPPORT [BLACK] (OBSOLETE) (OBSOLETE)N/A
052112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
053322785127/0DEFLECTOR SUPPORT£5.19 Add to
054122450430/0DEFLECTOR SPRING£5.19 Add to
055112731600/1SCREW 4.8 x 19£2.06 Add to
10A181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
201122601000/0BRAKE SUPPORT COVER£2.06 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004381/1BLADE 51cm£17.85 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
55122486103/0Top collector (OBSOLETE)N/A
552322486098/0GRASSTOP INSERT£6.01 Add to
553112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
554112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
555122608528/0GRASSCATCHER FRAME£21.40 Add to
556181002235/0GRASSBAG [BLACK]£60.15 Add to
