WHEEL SUSPENSION

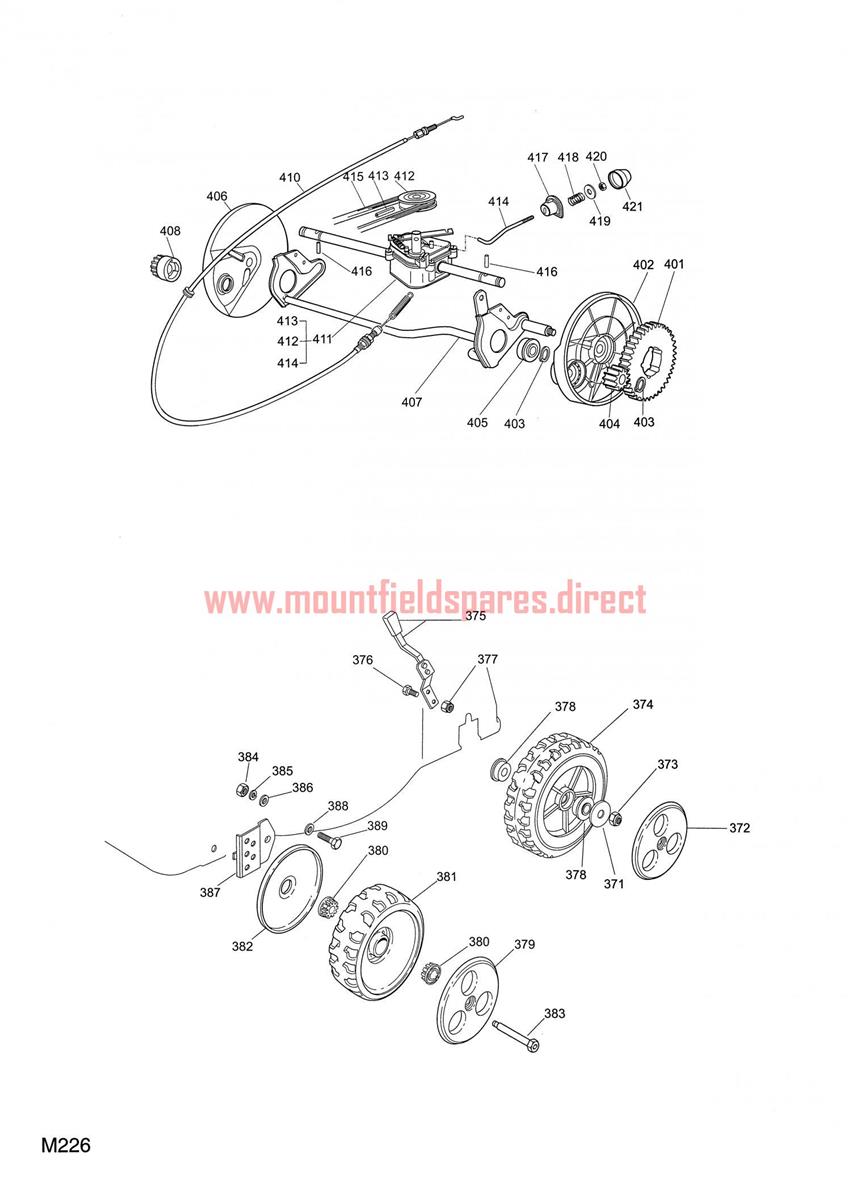

WHEEL SUSPENSION assembly details for Mountfield SP464 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
371112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
3721136-1601-01Hub cap-white (OBSOLETE)N/A
373112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
375381003279/2HEIGHT ADJUST LEVER£27.27 Add to
376112789000/0SCREW TE M5 x 12£2.06 Add to
377112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
378122122206/0BEARING£2.32 Add to
379322110320/1HUB CAP D=165 (3 SPOKES) WHITE£6.39 Add to
380322034511/0D=165 WHEEL PLASTIC BUSH£2.87 Add to
381322686091/1WHEEL D=165mm£7.10 Add to
382322600095/0INNER WHEEL COVER D=165£2.06 Add to
383122524321/0SHOULDER BOLT D=165£4.11 Add to
384112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
385112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
386112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
387322551515/0HEIGHT ADJUST PLATE£13.77 Add to
388112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
389112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
4011136-0653-01Ring gear (OBSOLETE)N/A
4021136-0690-01Wheel protection-LH (OBSOLETE)N/A
403112608600/0CIRCLIP D=12£2.08 Add to
4041136-0685-01Pinion-LH (OBSOLETE)N/A
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
4061136-0689-01Wheel protection-RH (OBSOLETE)N/A
407381000147/0REAR WHEELS AXLE£26.78 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
410381000675/0CLUTCH DRIVE CABLE£32.99 Add to
411181003081/1GEARBOX [GREY]£91.07 Add to
412122601909/0PULLEY£6.01 Add to
413112645705/0ROLL PIN D=5 x 32£2.02 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
415135063900/0TRAPEZOIDAL BELT Z28£9.96 Add to
416122753000/0PIN D=5.2 x 25.65£2.06 Add to
417122041957/1SPRING GUIDE BUSH£2.06 Add to
418122450063/0SPRING£2.06 Add to
419322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
420112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
421122110230/0HUB COVER£2.06 Add to
