TRANSMISSION WHEEL SUSPENSION

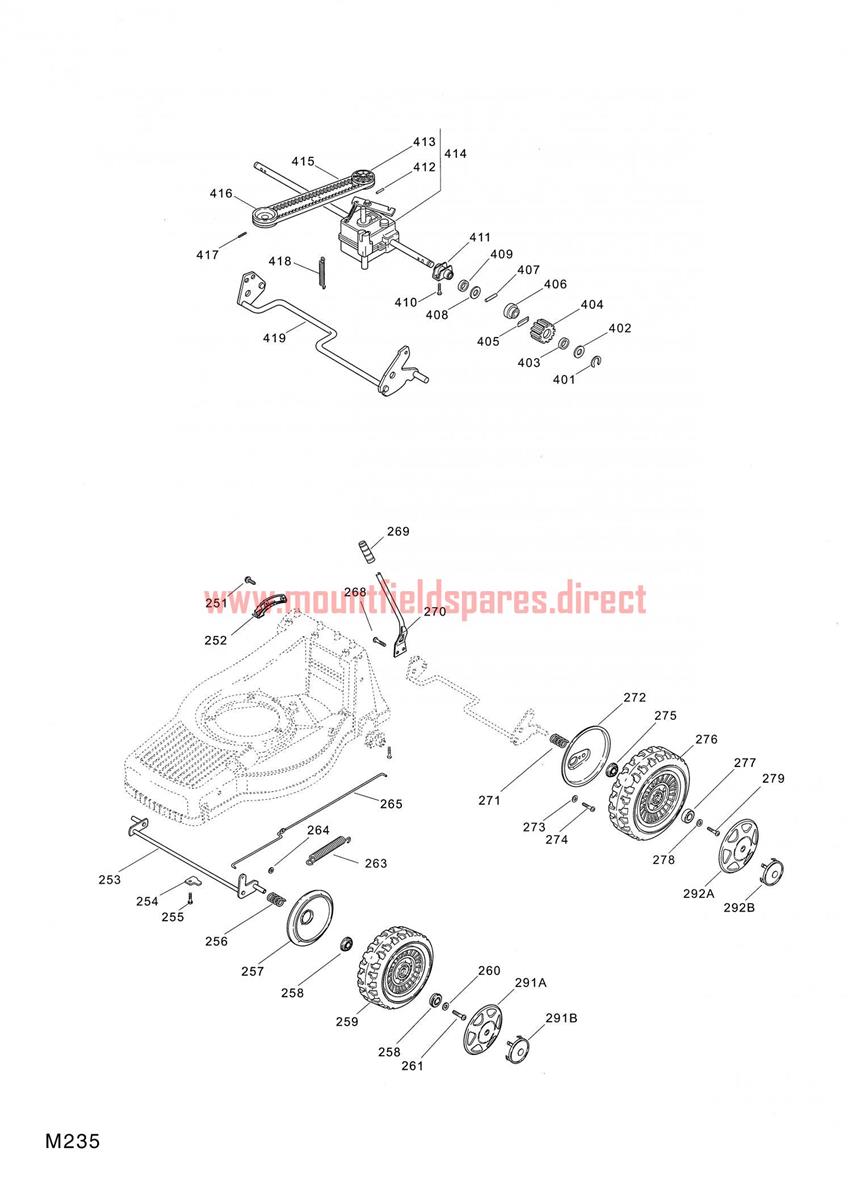

TRANSMISSION WHEEL SUSPENSION assembly details for Mountfield M6 SP - M6 PD-ES - SP50 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
252322735563/0HEIGHT ADJUST QUADRANT£15.41 Add to
253381002825/0FRONT WHEEL AXLE£47.39 Add to
254322545160/0FRONT AXLE PLATE (OBSOLETE) (OBSOLETE)N/A
255112735664/0SCREW M6 x 16£2.02 Add to
256122430210/0SPRING£2.06 Add to
257322600094/0WHEEL COVER£7.12 Add to
258122122201/0BEARING-PLASTIC CASE£2.74 Add to
2591111-2784-01WHEEL ASSEMBLY 175mm£18.90 Add to
260112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
261112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
263122446181/0SPRING£7.10 Add to
264112604898/0STARLOCK WASHER D=7£2.02 Add to
265122033323/0HEIGHT ADJUST ROD£13.09 Add to
268112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
269322399808/0HEIGHT ADJUST KNOB£2.87 Add to
2701111-2816-01HEIGHT ADJUST LEVER£10.50 Add to
271122430215/0SPRING£3.69 Add to
272322600121/0WHEEL COVER PLATE D=190 (OBSOLETE) (OBSOLETE)N/A
273112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
2761111-3026-01REAR WHEEL ASSEMBLY 215mm£47.64 Add to
277119216038/0BEARING 6201-2RS C3£6.27 Add to
291A322110312/0HUB CAP 165/175 (6 SPOKES) GREY£10.09 Add to
291B322110383/0HUB CAP D=175 [GREY]£7.10 Add to
292A322110389/1HUB CAP 215 GREY (OBSOLETE)N/A
292B322110384/0HUB CAP 190/215 [GREY]£7.63 Add to
401112000957/0CIRCLIP D=10£0.79 Add to
402112520032/0WASHER 12 x 18 x 1£2.06 Add to
403322160520/0DUST COVER£2.06 Add to
404122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
405122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
4061111-2829-01Lock washer (OBSOLETE)N/A
4071111-2382-01SPINA£6.14 Add to
409119035152/0SEAL RING 12 x 18 x 4£5.19 Add to
411322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
4129595-0235-00LOCATING PIN£2.47 Add to
413122601913/0GEARBOX PULLEY D=60£14.45 Add to
414181003085/0GEARBOX [BLACK]£170.61 Add to
415135064383/0TRAPEZOIDAL BELT XPZ LP=837£15.04 Add to
416122601918/0DRIVE ENGINE PULLEY D=22£26.18 Add to
417112714312/0DOWEL PIN M6 x 12£2.06 Add to
418122450434/0TENSION SPRING£6.71 Add to
419381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
