ELECTRIC STARTER

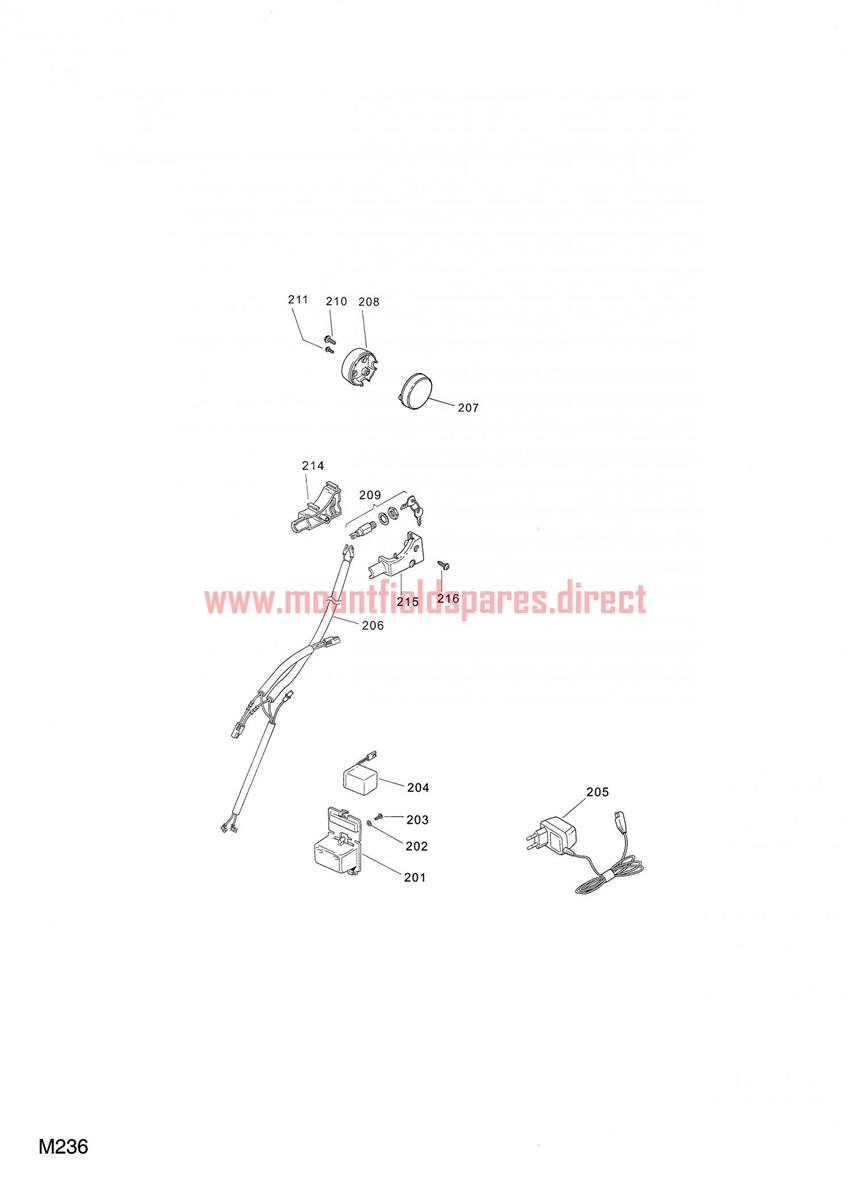

ELECTRIC STARTER assembly details for Mountfield M6 SP - M6 PD-ES - SP50 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
201322109533/0BATTERY HOLDER£14.58 Add to
202112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
203112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.14 Add to
204118120064/0BATTERY 12V 4.5AH c/w FG20451 CABLE£47.97 Add to
205118204121/1LCBATTERY CHARGER CB03 UK£32.99 Add to
206118204195/0ELECTRIC START CABLE£83.13 Add to
207322722801/0RIGHT IGNITION COVER£1.91 Add to
208322722800/0LEFT IGNITION COVER£10.91 Add to
2099400-0186-00Starting switch assy (OBSOLETE)N/A
209A1134-2848-01IGNITION KEY (2 PCS)£13.77 Add to
210112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
214322722804/1HOUSING R/H£3.64 Add to
2151111-2705-01COVER£11.90 Add to
216112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
