CHASSIS HANDLE

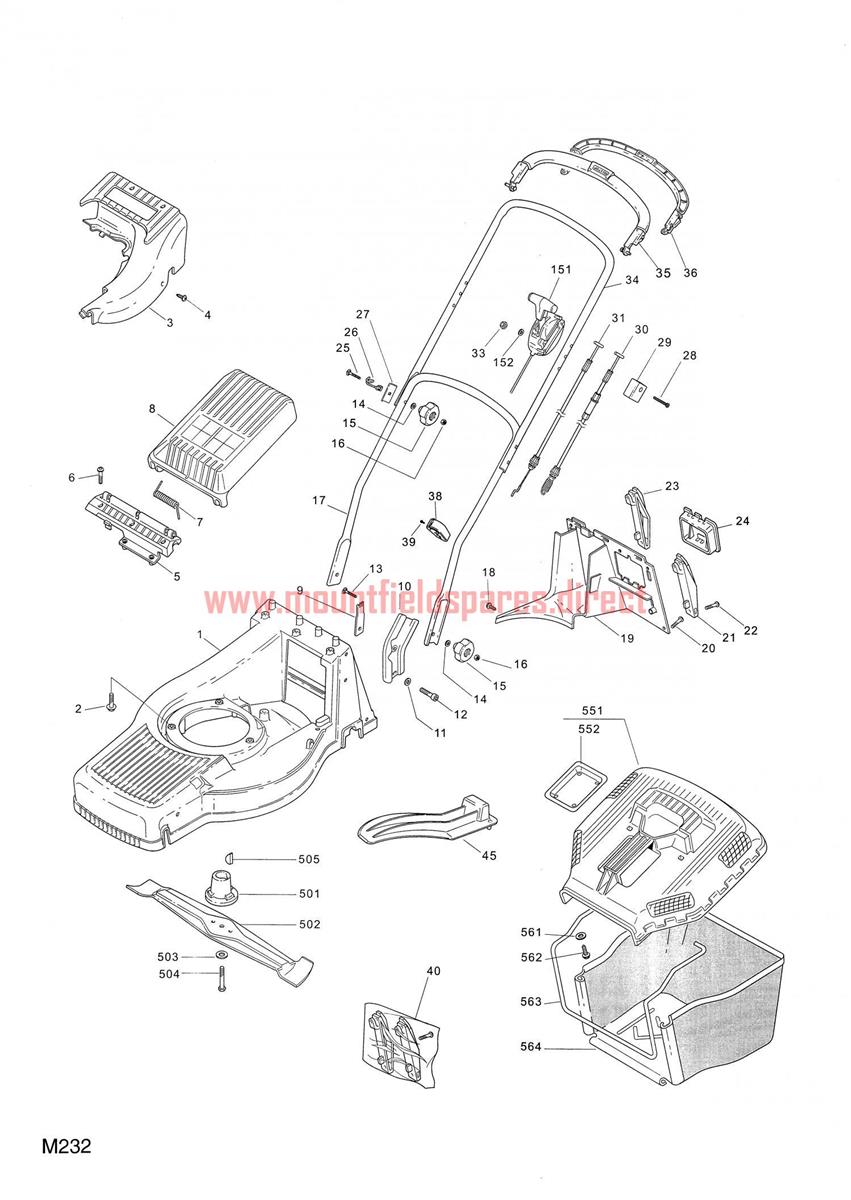

CHASSIS HANDLE assembly details for Mountfield M4 HP - M4 SP 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002669/0DECK ASS.Y TURBO 50 RED£454.19 Add to
002120001064/0SCREW£7.90 Add to
003322060153/1DECK COVER TU50 [RED] (OBSOLETE) (OBSOLETE)N/A
004112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
005322785179/0DEFLECTOR CLAMP [BLACK]£5.73 Add to
006112735664/0SCREW M6 x 16£2.02 Add to
007122450430/0DEFLECTOR SPRING£5.19 Add to
008322600068/2DEFLECTOR [BLACK]£10.91 Add to
009322551635/0ATTACHMENT PLATE£4.23 Add to
010322778405/0LOWER HANDLE SUPPORT CLAMP£24.95 Add to
011112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
012112760515/0HEXAGONAL SCREW TC M8 x 20£0.79 Add to
013112820655/0SCREW TTDQ 1/4" x 2 1/4"£1.79 Add to
015322399810/0HANDWHEEL w/o NUT [BLACK]£8.73 Add to
016112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
017381006613/0LOWER PRO HANDLE TURBO 50-55 BLACK£39.80 Add to
019322108277/0PLASTIC REAR BAFFLE£46.14 Add to
021381008658/1ACCESSORY BAG-GRASSCATCHER£17.86 Add to
022112728692/0SELF-TAP SCREW KA50 x 20£2.14 Add to
023381008658/1ACCESSORY BAG-GRASSCATCHER£17.86 Add to
024322109531/0BATTERY COVER£2.87 Add to
026122430311/0PULL CORD GUIDE£6.87 Add to
027322545137/0HANDLE CLAMP PLATE£2.06 Add to
028112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
029322551685/0CABLE HOLDER BLOCK£7.52 Add to
030381000697/0CLUTCH DRIVE CABLE£20.25 Add to
031181000686/0ENGINE BRAKE CABLE L=975£13.77 Add to
033112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
034381006618/1UPPER HANDLE [BLACK]£52.06 Add to
035381003298/1BRAKE CONTROL LEVER£32.97 Add to
036381003297/1DRIVE CONTROL LEVER£22.49 Add to
038322192001/0CABLE CLAMP£2.06 Add to
039112728691/0SELF-TAP SCREW WN1411 KA40 x 16£2.14 Add to
040381008658/1ACCESSORY BAG-GRASSCATCHER£17.86 Add to
045322140231/0MULCHING PLUG [TURBO 50] (OBSOLETE) (OBSOLETE)N/A
151181007128/0THROTTLE CABLE L=1270£24.95 Add to
152112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
501122465618/0BLADE BOSS D=22.2£9.68 Add to
502181004143/0BLADE TURBO 48£24.81 Add to
503112530140/0WASHER M10£2.32 Add to
504112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
505112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
551322486095/0GRASSCATCHER TOP [BLACK]£47.71 Add to
552322486098/0GRASSTOP INSERT£6.01 Add to
561112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
563122608528/0GRASSCATCHER FRAME£21.40 Add to
564181002235/0GRASSBAG [BLACK]£60.15 Add to
