WHEEL SUSPENSION

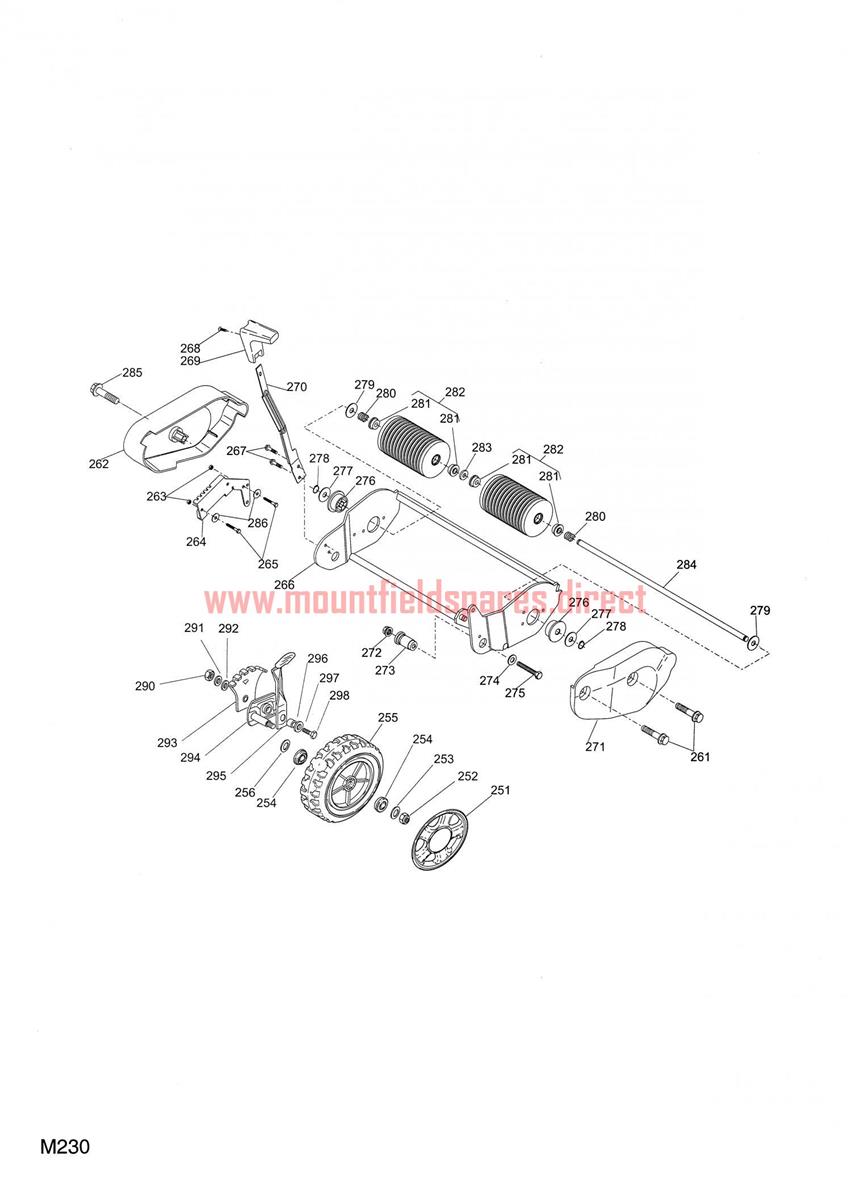

WHEEL SUSPENSION assembly details for Mountfield 46R HP 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251322110381/0HUB CAP D=170 [GREY]£3.69 Add to
252112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
253112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
254122122206/0BEARING£2.32 Add to
255381007351/0WHEEL D=170£13.66 Add to
256112530150/0SPRING WASHER M12£1.79 Add to
261112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
262322060201/0RIGHT ROLLER CHAIN COVER [RED]£2.47 Add to
263112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
264322735551/0HEIGHT ADJUST QUADRANT£9.54 Add to
265112789000/0SCREW TE M5 x 12£2.06 Add to
266381005109/1ROLLER SUPPORT TD/CA/ML/R£143.37 Add to
267112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
268112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
269322399805/0HEIGHT ADJUST KNOB£14.05 Add to
270322321505/0HEIGHT ADJUST LEVER [ROLLER]£17.72 Add to
271322060202/0LEFT ROLLER COVER [RED]£2.87 Add to
272112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
273122785132/0ROLLER SUPPORT£4.52 Add to
274112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
275112691700/0SCREW M8 x 55£1.91 Add to
276322034512/0ROLLER AXLE BUSH£2.06 Add to
277322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
278112000957/0CIRCLIP D=10£0.79 Add to
280122430210/0SPRING£2.06 Add to
282381007400/0ROLLER ASSEMBLY£19.61 Add to
283112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
284122033360/0ROLLER AXLE£6.69 Add to
285112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
286112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
290112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
291112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
292112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
293322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
294381005082/0STUB AXLE£6.69 Add to
295481003285/1HEIGHT ADJUST LEVER£9.54 Add to
296122171001/0SPACER£2.06 Add to
298112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
