MOTOR BLADE

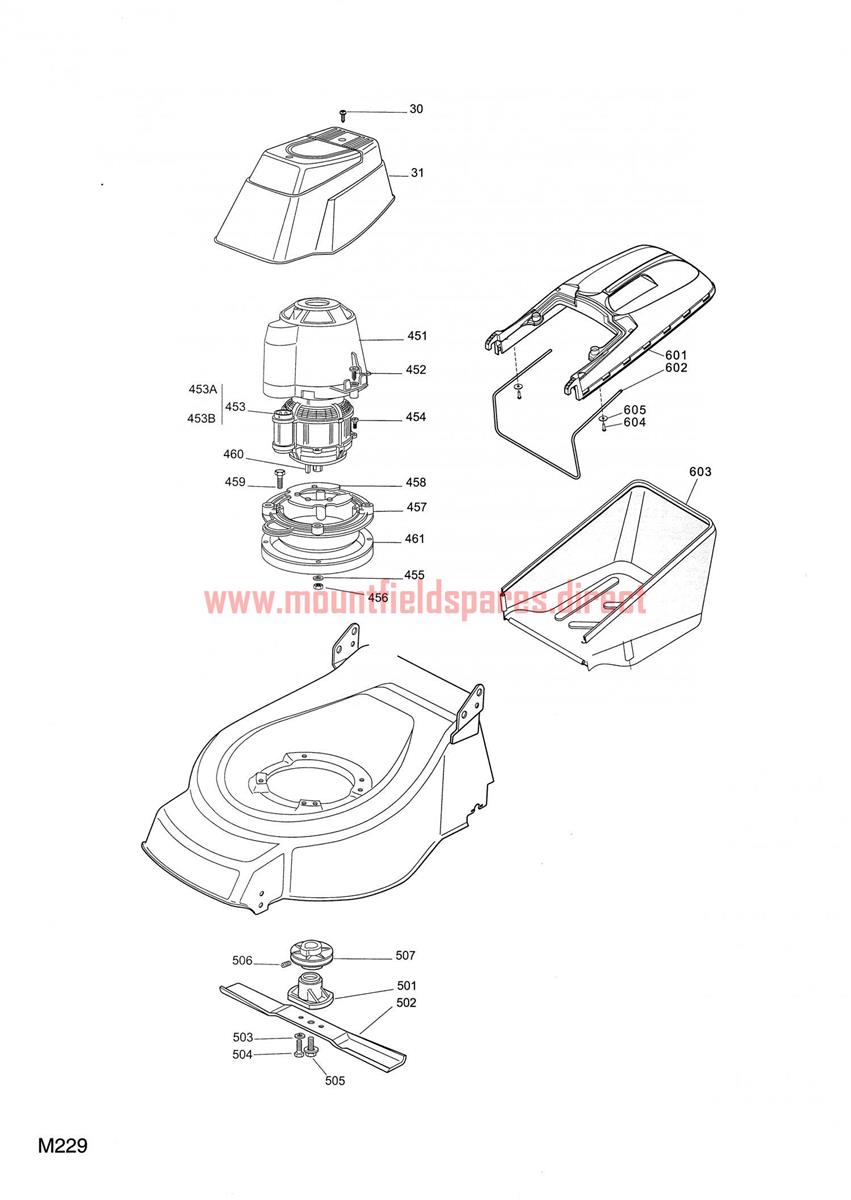

MOTOR BLADE assembly details for Mountfield 46R HP 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
030112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
031122055045/1BLACK TREND COVER£10.50 Add to
451122785061/0COVER SUPPORT FOR ELECTRIC LAWNM. 95/96£9.31 Add to
452112728710/0FLANG TCB SCREW SPAX D=5X45£1.79 Add to
453118563641/1ELECTRIC MOTOR 1800W 230V/50HZ ATB£238.75 Add to
45318563605/0Motor Atb (OBSOLETE)N/A
453118563605/0ELECTRIC MOTOR 1600W 230V/50HZ ATB£181.49 Add to
453A118740054/0MOTOR FAN 1600W£10.50 Add to
453A18740051/0Fan£7.58 Add to
453B118222045/0CAPACITOR 16UF£19.62 Add to
453B118222038/0CONDENSER£32.99 Add to
454112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
455112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
456112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
4571136-1706-01ELECTRIC MOTOR FLANGE£5.91 Add to
458322720360/2VENTILATION SCREEN£3.56 Add to
459112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
459112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
460112139440/0KEY 5 x 5 x 20£2.06 Add to
461322170960/1PLASTIC MOTOR SPACER R/TD430TR£6.23 Add to
501322463186/3BLADE BOSS D=17£8.73 Add to
504112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
505381004352/1BLADE BOLT M9£4.52 Add to
506112713801/0DOWEL PIN M6 x 8£2.74 Add to
507322601911/1PLASTIC DRIVE PULLEY£4.19 Add to
601381486014/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£21.66 Add to
602122608527/0GRASSCATCHER FRAME£11.19 Add to
603181002227/0GRASSBAG-ROLLER [BLACK]£43.89 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
