Wheel Suspenssion and Transmision (1)

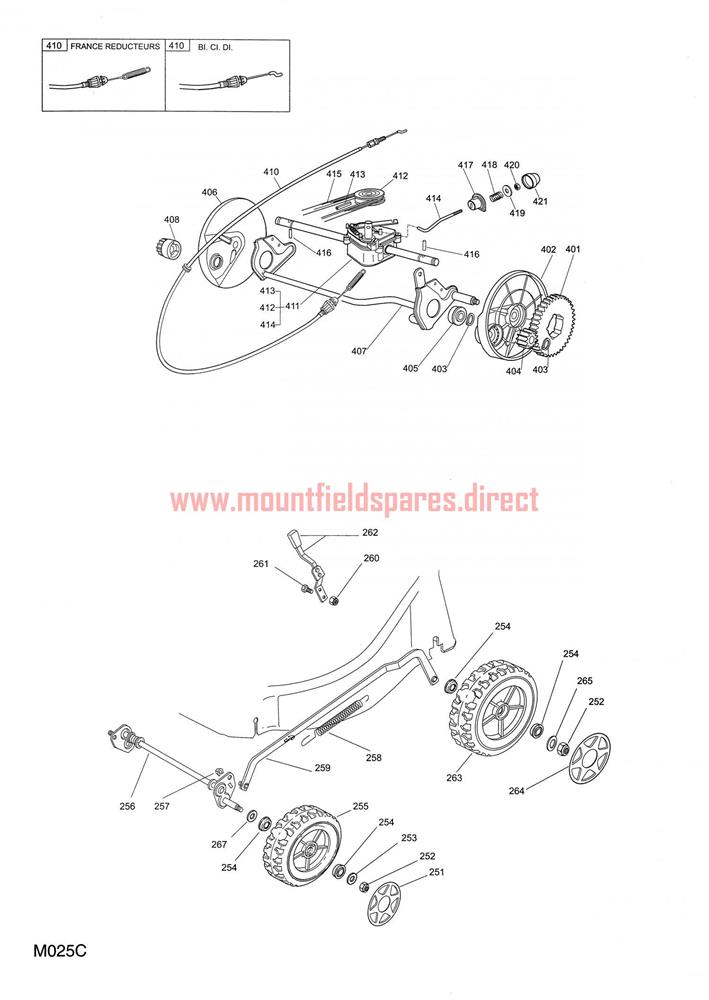

Wheel Suspenssion and Transmision (1) assembly details for Mountfield 46PD-51PD 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251322110381/0HUB CAP D=170 [GREY]£3.69 Add to
252112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
253112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
254122122206/0BEARING£2.32 Add to
255381007351/0WHEEL D=170£13.66 Add to
256381001223/1FRONT WHEEL AXLE£27.09 Add to
256381001274/1FRONT WHEEL AXLE£24.18 Add to
257112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
25822446180/0SPRING£7.19 Add to
259181001264/0HEIGHT ADJUST TIE BAR£19.09 Add to
259181001276/0HEIGHT ADJUST TIE BAR (46PD)£26.17 Add to
260112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
261112789000/0SCREW TE M5 x 12£2.06 Add to
262381003279/2HEIGHT ADJUST LEVER£27.27 Add to
264322110382/0HUB CAP D=210 [GREY]£4.27 Add to
265112369500/0SPRING WASHER D=8£1.79 Add to
267112530150/0SPRING WASHER M12£1.79 Add to
4011136-0653-01Ring gear (OBSOLETE)N/A
4021136-0690-01Wheel protection-LH (OBSOLETE)N/A
403112608600/0CIRCLIP D=12£2.08 Add to
4041136-0685-01Pinion-LH (OBSOLETE)N/A
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
4061136-0689-01Wheel protection-RH (OBSOLETE)N/A
407381000147/0REAR WHEELS AXLE£26.78 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
410381000672/0CLUTCH DRIVE CABLE£19.90 Add to
410381000668/1CLUTCH DRIVE CABLE£21.26 Add to
410381000709/2CLUTCH DRIVE CABLE£20.31 Add to
411181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
411181003081/1GEARBOX [GREY]£91.07 Add to
412122601909/0PULLEY£6.01 Add to
413112645705/0ROLL PIN D=5 x 32£2.02 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
415135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
415135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
416122753000/0PIN D=5.2 x 25.65£2.06 Add to
417122041957/1SPRING GUIDE BUSH£2.06 Add to
418122450063/0SPRING£2.06 Add to
419322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
420112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
421122110230/0HUB COVER£2.06 Add to
