CHASSIS

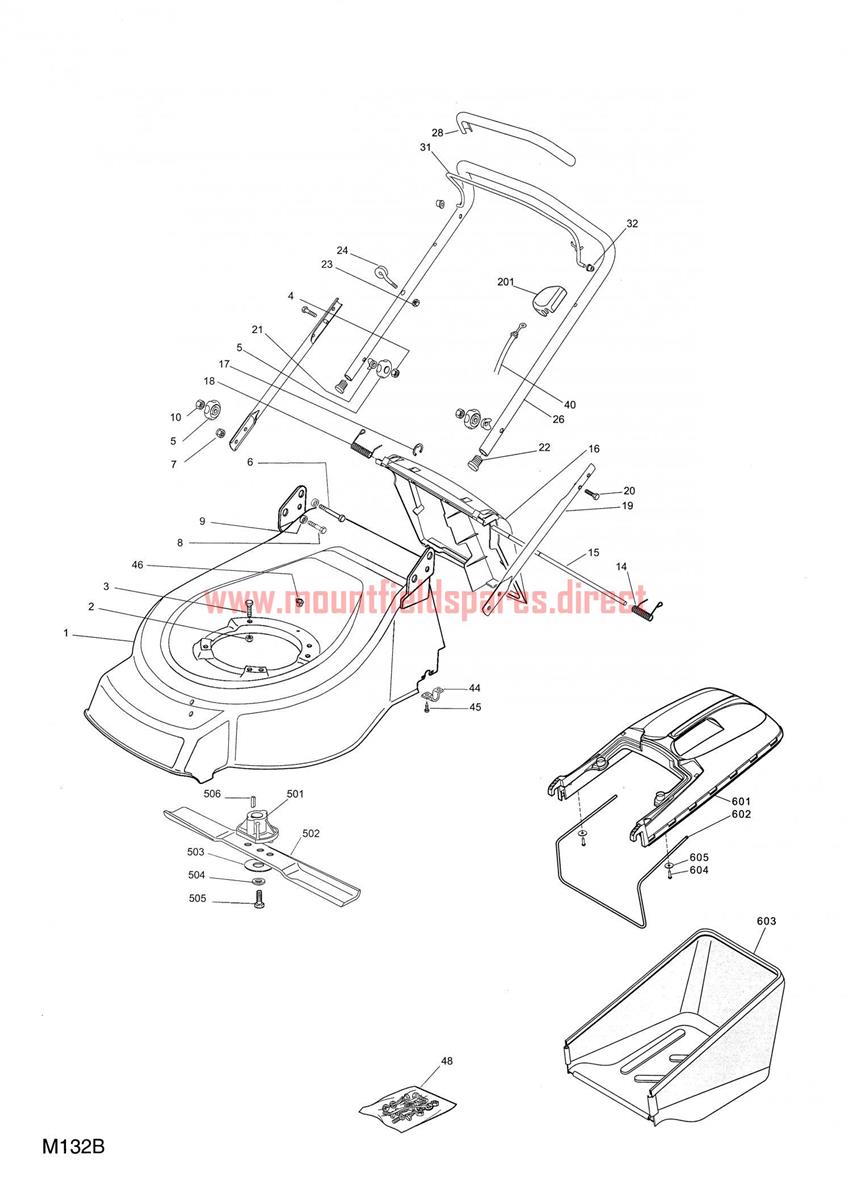

CHASSIS assembly details for Mountfield 460R HP 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381002565/0STEEL DECK 46cm ROLLER [RED] (OBSOLETE)N/A
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
003112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
004112293202/0HEXAGONAL NUT M8 UNI 5588£2.06 Add to
005122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
006112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
008112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
009322041955/0METAL HANDLE BUSH£2.06 Add to
010112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
014122450420/1LH DEFLECTOR SPRING£2.06 Add to
015122517906/1DEFLECTOR ROD£3.96 Add to
016381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
017112000930/0CIRCLIP D=6£0.79 Add to
018122450410/1RH DEFLECTOR SPRING£2.06 Add to
019381006973/0LOWER HANDLE [BLACK] (OBSOLETE)N/A
020112819125/0CARRIAGE BOLT M8 x 55£0.79 Add to
021122680006/1PLASTIC WASHER£1.91 Add to
022118566116/0HANDLE CAP BLACK D=21£2.74 Add to
023112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
024122430309/0PULL CORD GUIDE£2.87 Add to
026381006977/1UPPER HANDLE BLACK CASTEL TS£33.62 Add to
028122291050/0HANDLE GRIP [BLACK]£14.58 Add to
031181003291/3ENGINE BRAKE LEVER£14.66 Add to
032122041966/0CONTROL LEVER BUSH£2.06 Add to
040181000625/0ENGINE BRAKE CABLE L=1256£12.96 Add to
044322545154/0AXLE CATCH PLATE£2.06 Add to
045112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.06 Add to
046322291150/0RUBBER INSERT£2.06 Add to
048381008642/0SCREW ASSEMBLY KIT-46R£28.90 Add to
201122601000/0BRAKE SUPPORT COVER£2.06 Add to
501122463012/4BLADE BOSS D=22.2£8.73 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486014/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£21.66 Add to
602122608527/0GRASSCATCHER FRAME£11.19 Add to
603181002227/0GRASSBAG-ROLLER [BLACK]£43.89 Add to
604112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
