BLADE

BLADE assembly details for Mountfield PRINCESS 34 (294340063/M21) 2021 model

Parts list

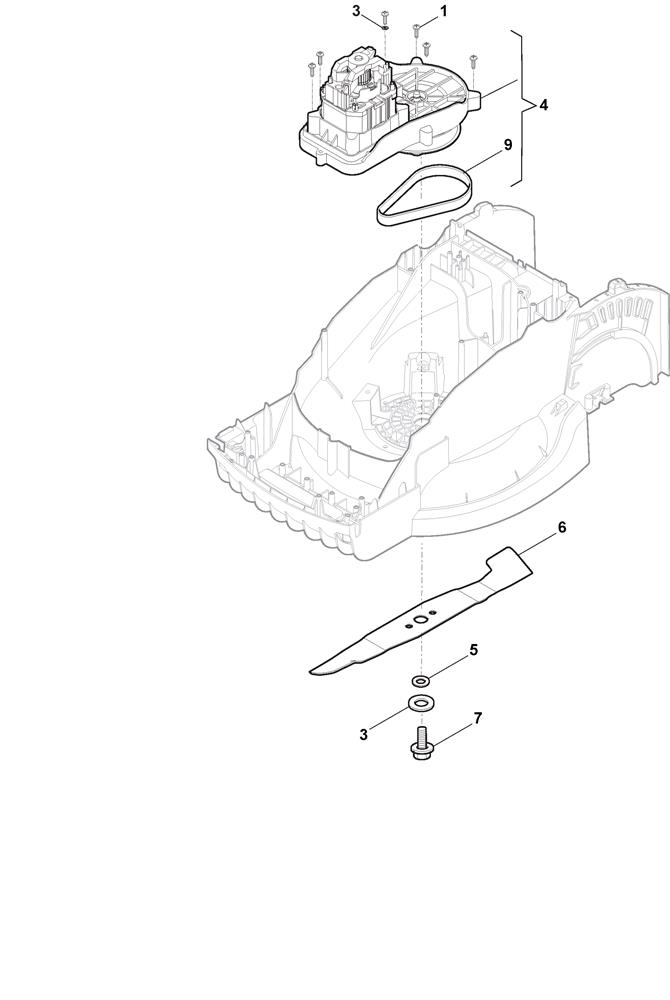

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
003122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
004118563698/2ELECTRIC MOTOR 1400W£143.37 Add to
005112508122/0SPRING WASHER 8.2 x 23 x 0.9£2.06 Add to
006181004465/0WINGED BLADE L=340mm SLM 340£17.27 Add to
007112793312/1SCREW M8x1x25 UNI5740 ACC.10.9 GEOME321A£2.06 Add to
009118810092/0BELT-ELECTRIC MOTOR£16.10 Add to
