Handle, Upper Part

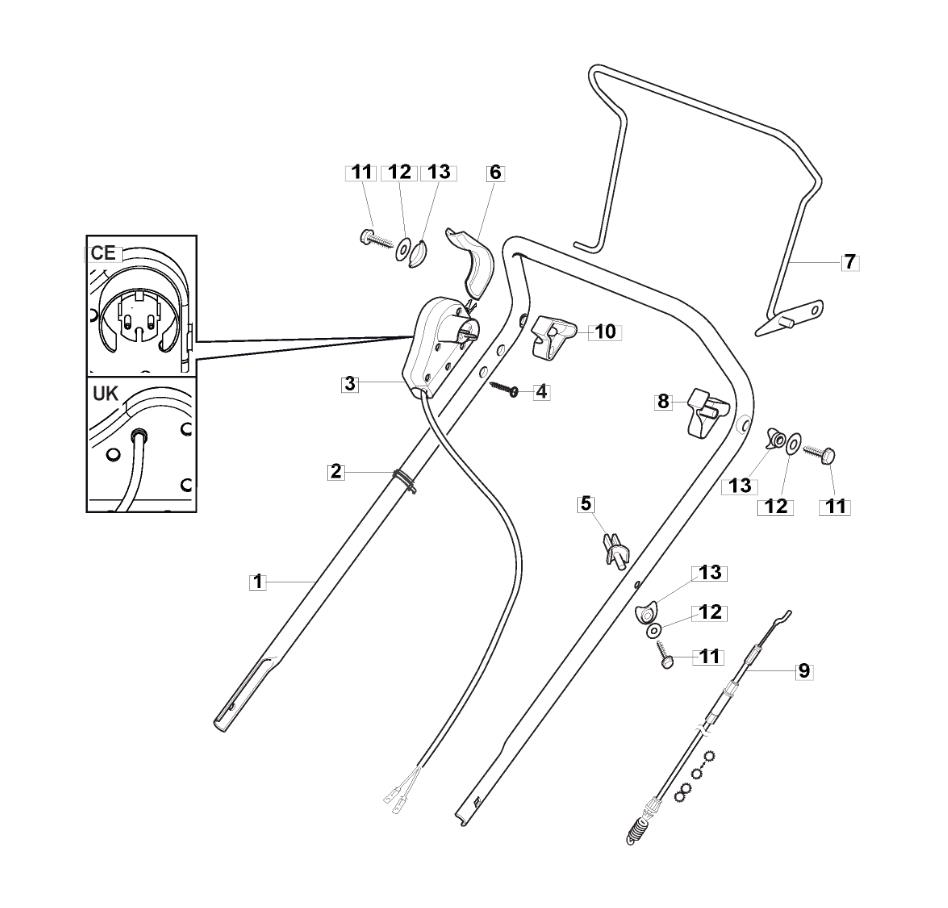

Handle, Upper Part assembly details for Mountfield EL 4800 PD BW (299487073/M18) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006603/0	UPPER HANDLE	£23.72	Add to
002	122192000/1	CABLE CLAMP	£1.91	Add to
003	381600547/2	SWITCH GGP "SCHUKO" L.1435mm	£25.91	Add to
004	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
005	122806520/0	THREAD TIGHTENER SUPPORT R/TD 430 TR	£2.74	Add to
006	322319529/0	SWITCH LEVER [BLACK]	£8.60	Add to
007	181001245/1	DRIVE CONTROL LEVER LAWNM. ELEC. TR	£27.27	Add to
008	322806519/2	LEVER L/H SUPPORT	£2.47	Add to
009	381030091/1	CLUTCH DRIVE CABLE	£21.19	Add to
010	322806518/2	LEVER R/H SUPPORT	£2.47	Add to
011	112735103/0	SELF-TAP SCREW 6.3 x 45	£1.91	Add to
012	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
013	122680006/1	PLASTIC WASHER	£1.91	Add to
