Electric Motor/Blade

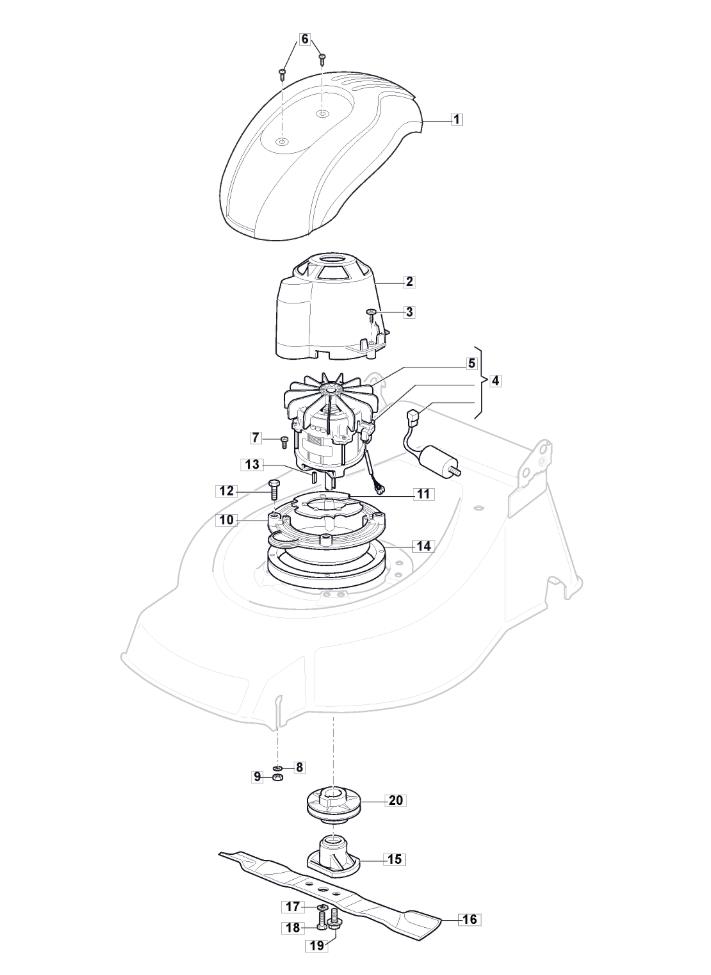

Electric Motor/Blade assembly details for Mountfield EL 4800 PD BW (299487073/M18) 2018 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122055065/0	MOTOR COVER [BLACK]	£13.64	Add to
002	322785210/1	ELECTRIC MOTOR COVER	£7.10	Add to
003	112728710/0	FLANG TCB SCREW SPAX D=5X45	£1.79	Add to
004	118563721/0	ELECTRIC MOTOR 1800W 230-240V/50Hz	£211.50	Add to
005	118740054/0	MOTOR FAN 1600W	£10.50	Add to
006	112728680/0	FLANGED SCREW D=5 x 25	£2.06	Add to
007	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
008	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
009	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£2.06	Add to
010	322207211/4	ELECTRIC MOTOR FLANGE	£6.01	Add to
011	322720360/2	VENTILATION SCREEN	£3.56	Add to
012	112691800/0	HEX-HEAD SCREW M8 x 60	£2.06	Add to
013	112139440/0	KEY 5 x 5 x 20	£2.06	Add to
014	322170960/1	PLASTIC MOTOR SPACER R/TD430TR	£6.23	Add to
015	322463186/3	BLADE BOSS D=17	£8.73	Add to
016	181004397/0	WINGED BLADE R46	£23.08	Add to
016	181004460/0	MULCHING BLADE 46cm	£15.13	Add to
017	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
018	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
019	381004352/1	BLADE BOLT M9	£4.52	Add to
020	322601911/2	PLASTIC DRIVE PULLEY	£6.47	Add to
