CHASSIS HANDLE

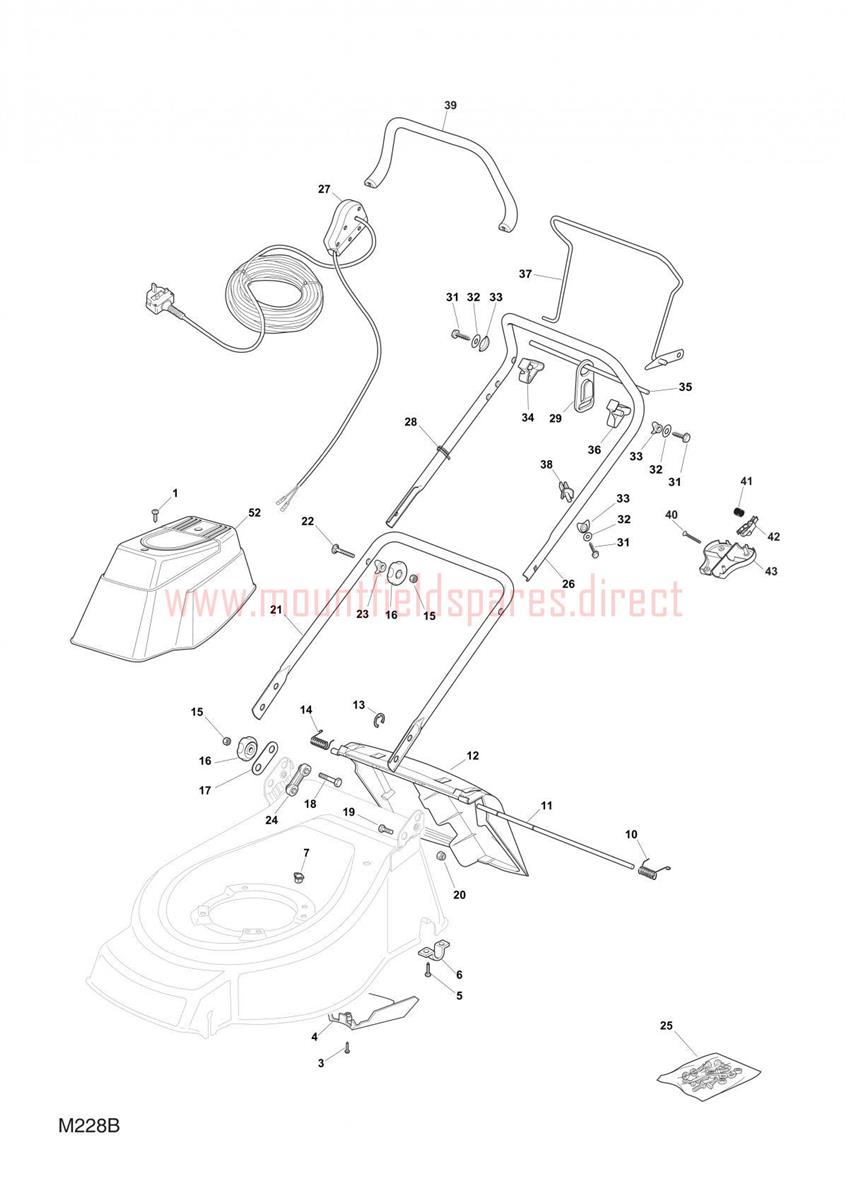

CHASSIS HANDLE assembly details for Mountfield EL464R PD 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112728680/0	FLANGED SCREW D=5 x 25	£2.06	Add to
003	112727791/0	CROSS-HEAD SCREW M6 x 20	£0.79	Add to
004	122060192/0	BELT PROTECTION GUARD [TD/TDL 48]	£6.01	Add to
005	112731350/0	SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15	£2.06	Add to
006	322545152/0	AXLE BRACKET	£2.06	Add to
007	322291150/0	RUBBER INSERT	£2.06	Add to
010	122450420/1	LH DEFLECTOR SPRING	£2.06	Add to
011	122517906/1	DEFLECTOR ROD	£3.96	Add to
012	381008021/3	DEFLECTOR ASSEMBLY [BLACK]	£21.14	Add to
013	112000930/0	CIRCLIP D=6	£0.79	Add to
014	122450410/1	RH DEFLECTOR SPRING	£2.06	Add to
015	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
016	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
017	122551574/0	HANDLE PLATE	£4.82	Add to
018	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
019	112793300/0	HEXAG-HEAD SCREW 2009	£4.01	Add to
020	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
021	381006512/0	LOWER HANDLE [BLACK]	£23.72	Add to
022	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
023	122680006/1	PLASTIC WASHER	£1.91	Add to
024	122551575/0	INSIDE PLATE	£2.06	Add to
025	381008666/0	SCREWS OUTFIT TD ROLLER ELECTRIC	£21.29	Add to
026	381006603/0	UPPER HANDLE	£23.72	Add to
026	381007017/2	UPPER HANDLE R-NG BLACK PVC SHEAT	£27.33	Add to
027	381600548/0	SWITCH + CABLE ASSEMBLY UK [15M]	£91.58	Add to
028	122192000/1	CABLE CLAMP	£1.91	Add to
029	MX483	CABLE CLEAT	£7.19	Add to
031	112735103/0	SELF-TAP SCREW 6.3 x 45	£1.91	Add to
032	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
034	322806518/2	LEVER R/H SUPPORT	£2.47	Add to
035	122010251/0	SLIDE ROD	£2.74	Add to
035	122020320/0	SUPPORT ROD	£3.55	Add to
036	322806519/2	LEVER L/H SUPPORT	£2.47	Add to
037	181001245/1	DRIVE CONTROL LEVER LAWNM. ELEC. TR	£27.27	Add to
038	122806520/0	THREAD TIGHTENER SUPPORT R/TD 430 TR	£2.74	Add to
039	322322881/1	LONG DEAD HAND SWITCH LEVER [BLACK]	£7.50	Add to
040	112728685/0	SELF-TAPPING SCREW D=4 x 25	£4.10	Add to
041	122450115/0	SPRING	£2.06	Add to
042	322230350/2	LEFT FULCRUM PIN	£2.32	Add to
043	322785144/0	DEAD HAND SWITCH LEFT SUPPORT EL. LAWNM (OBSOLETE)	N/A
052	122055045/1	BLACK TREND COVER	£10.50	Add to
