CHASSIS HANDLE

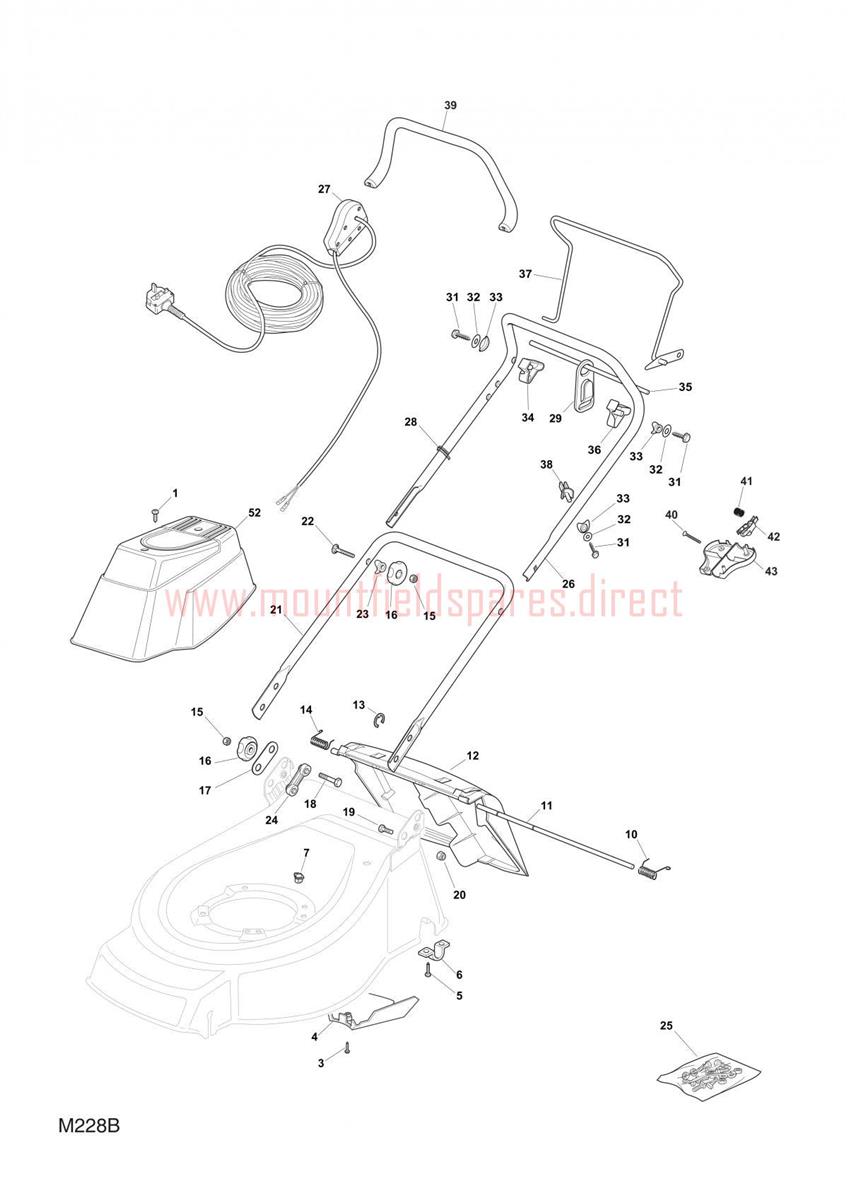

CHASSIS HANDLE assembly details for Mountfield EL464R HP 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
003112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
004122060192/0BELT PROTECTION GUARD [TD/TDL 48]£6.01 Add to
005112731350/0SELF-TAP SCREW TE 5.5 x 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£2.06 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017122551574/0HANDLE PLATE£4.82 Add to
018112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
019112793300/0HEXAG-HEAD SCREW 2009£4.01 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
021381006512/0LOWER HANDLE [BLACK]£23.72 Add to
022112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
024122551575/0INSIDE PLATE£2.06 Add to
025381008666/0SCREWS OUTFIT TD ROLLER ELECTRIC£21.29 Add to
026381006603/0UPPER HANDLE£23.72 Add to
026381007017/2UPPER HANDLE R-NG BLACK PVC SHEAT£27.33 Add to
027381600548/0SWITCH + CABLE ASSEMBLY UK [15M]£91.58 Add to
028122192000/1CABLE CLAMP£1.91 Add to
029MX483CABLE CLEAT£7.19 Add to
031112735103/0SELF-TAP SCREW 6.3 x 45£1.91 Add to
032112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
034322806518/2LEVER R/H SUPPORT£2.47 Add to
035122010251/0SLIDE ROD£2.74 Add to
035122020320/0SUPPORT ROD£3.55 Add to
036322806519/2LEVER L/H SUPPORT£2.47 Add to
037181001245/1DRIVE CONTROL LEVER LAWNM. ELEC. TR£27.27 Add to
038122806520/0THREAD TIGHTENER SUPPORT R/TD 430 TR£2.74 Add to
039322322881/1LONG DEAD HAND SWITCH LEVER [BLACK]£7.50 Add to
040112728685/0SELF-TAPPING SCREW D=4 x 25£4.10 Add to
041122450115/0SPRING£2.06 Add to
042322230350/2LEFT FULCRUM PIN£2.32 Add to
043322785144/0DEAD HAND SWITCH LEFT SUPPORT EL. LAWNM (OBSOLETE)N/A
052122055045/1BLACK TREND COVER£10.50 Add to
