Height adjusting

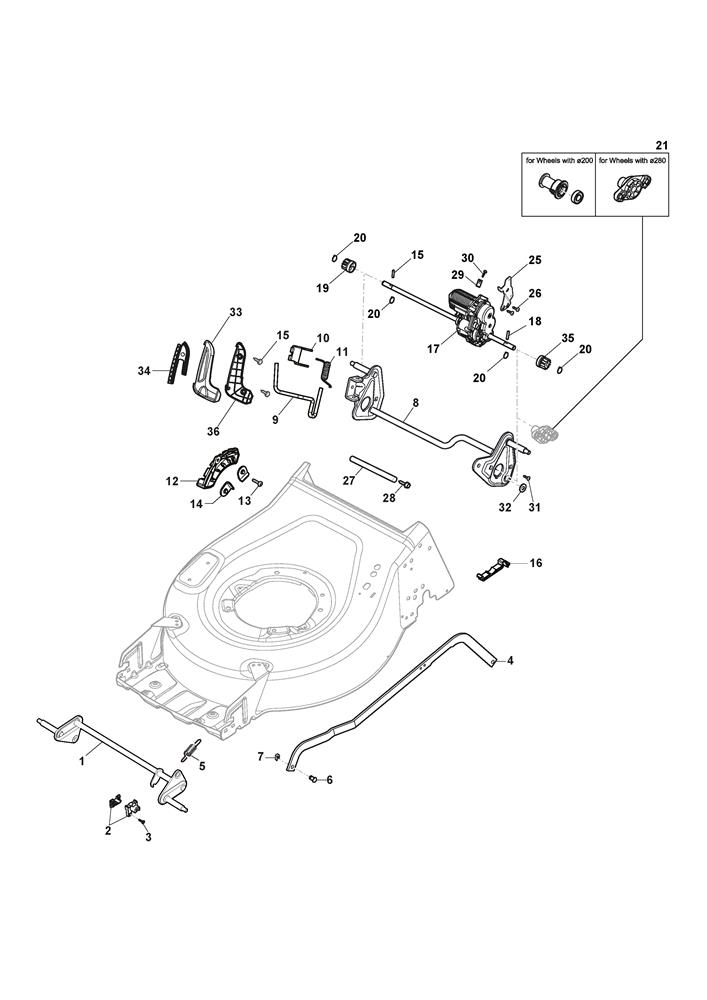

Height adjusting assembly details for Mountfield S46PD Li (2L0487863/M19) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302935/1ASS.FRONT AXLE WHEELS D200 BLACK CP1 48£31.63 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869737/1WHEEL CONTROL ROD 200/280 BLACK CP1 48£18.53 Add to
005122450494/0SPRING£4.99 Add to
006122519823/0PIN£2.74 Add to
007112000930/0CIRCLIP D=6£0.79 Add to
008381302849/1ASS.REAR AXLE WHEELS D280 CRUISER 53 TR£52.06 Add to
009322321555/3HEIGHT ADJUST LEVER CRL 53£3.69 Add to
010322557181/0REAR AXLE LEVER PLATE£2.47 Add to
011122446198/1HEIGHT ADJUST SPRING CRL£2.06 Add to
012322735608/0HEIGHT ADJUST QUADRANT CP1£2.47 Add to
013112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
014322545232/2PLATE M6 FIX HEIGHT BLACK ZINC. x CP1£2.06 Add to
015112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
016322785500/0REAR AXLE SUPPORT CP 1£2.18 Add to
017181003131/0GEARBOX GT-ME512 56V CR/CP1£177.43 Add to
018122753003/1ELECTR.TRACT.PIN D=5.2 x 30 BURNISHING£2.86 Add to
019122570133/0RIGHT PINION Z12 GEAR£7.92 Add to
020112608600/0CIRCLIP D=12£2.08 Add to
021322042067/0AXLE BUSH£4.52 Add to
025322778523/1BRACKET FIX ELECT.TRANSMIS. CR48-MP1/2£7.51 Add to
026112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
027322608565/0REINFORCEMENT CHASSIS WHITE ZINC. CP1£7.92 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
029118390022/0CONDUIT CLIP£2.06 Add to
030112728210/0SCREW TORX M4 x 10£1.79 Add to
031112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
032112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
033322394550/0UPPER HEIGHT ADJUST LEVER [BLACK]£3.00 Add to
034322394551/0HEIGHT ADJUST HANDGRIP [BLACK] CR£2.06 Add to
035122570134/0LEFT PINION Z12 GEAR£7.92 Add to
036322394559/0ERGO LOWER KNOB ADJ.REAR LEVER CR BLACK£2.47 Add to
