Switch and Handles

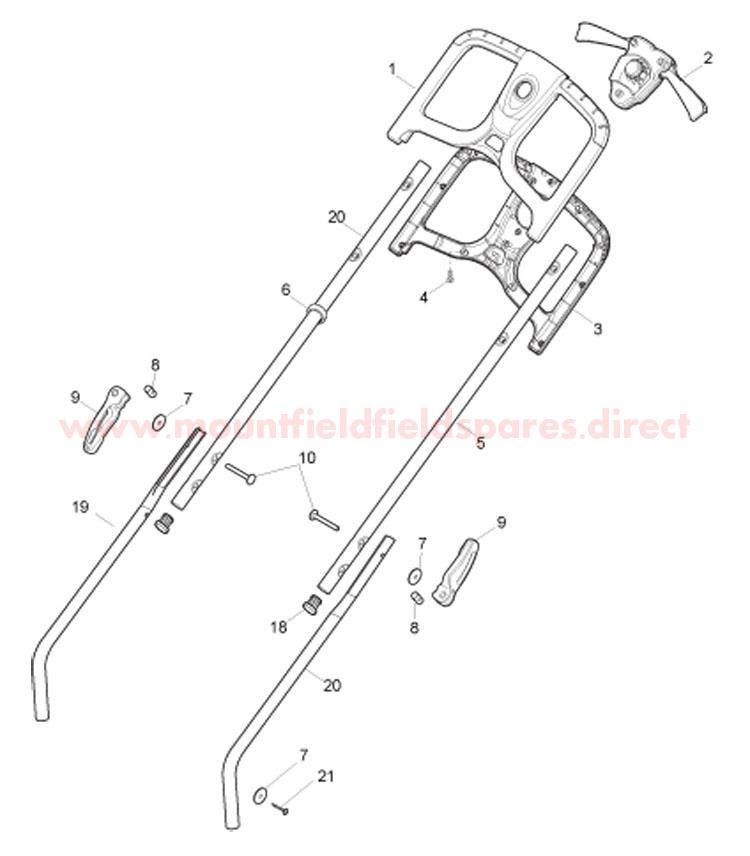

Switch and Handles assembly details for Mountfield Princess34Li 20130205 2013 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322291064/0	UPPER HALF HANDGRIP SWITCH EL340	£12.12	Add to
002	381600540/0	OPC SWITCH ASSEMBLY [YELLOW]	£24.95	Add to
003	322291065/0	LOWER HALF HANDGRIP SWITCH EL340	£12.12	Add to
004	112728713/0	SELF-TAP SCREW K40 x 20	£1.79	Add to
005	381007532/0	UPPER HANDLE EL340	£7.10	Add to
006	122192000/1	CABLE CLAMP	£1.91	Add to
007	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
008	122524352/0	HANDLE PIN	£3.83	Add to
009	322319520/0	HANDLE LEVER [GREY]	£2.87	Add to
010	122943016/0	CARRIAGE BOLT M6 x 50	£2.06	Add to
018	122943016/0	CARRIAGE BOLT M6 x 50	£2.06	Add to
019	381007529/0	RIGHT LOWER HANDLE	£9.07	Add to
020	381007530/0	LEFT LOWER HANDLE	£8.91	Add to
021	112728450/0	SELF-TAP SCREW 4.8 x 19	£2.81	Add to
