Motor and Blade

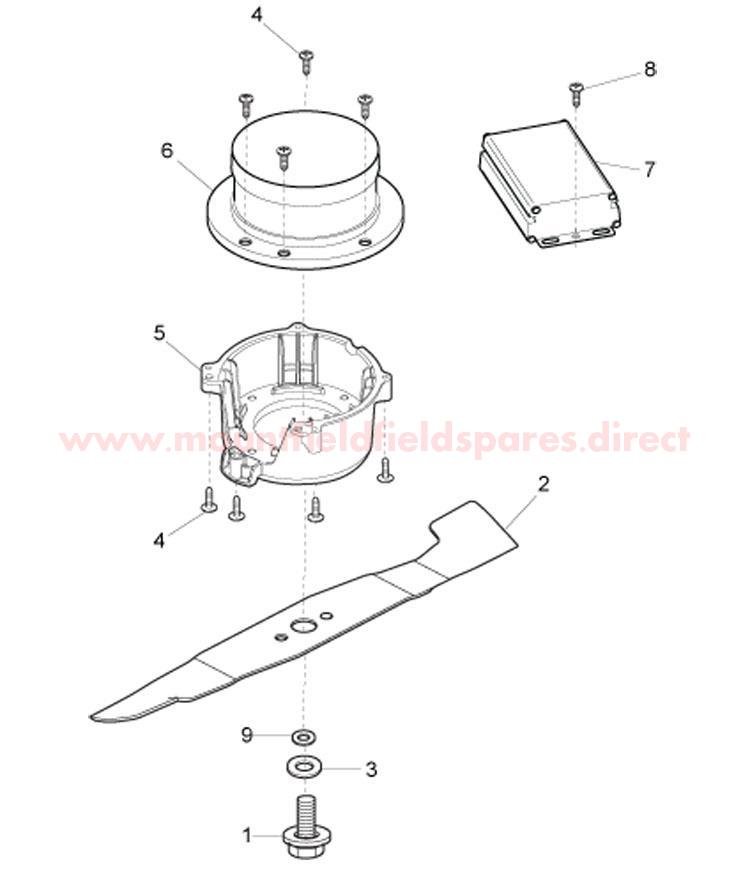

Motor and Blade assembly details for Mountfield Princess34Li 20130205 2013 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112793312/0SCREW M8 x 1 x 25£2.06 Add to
002181004157/0WINGED BLADE EL340£13.66 Add to
003122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
004112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
005322207230/0MOTOR FLANGE£7.10 Add to
006118563514/0BATTERY MOTOR 36V£194.89 Add to
007118206002/0CONTROLLER 36V EL34 Li£71.53 Add to
008112728714/0SELF-TAP SCREW K50 x 20£2.06 Add to
009112508122/0SPRING WASHER 8.2 x 23 x 0.9£2.06 Add to
