Engine 1

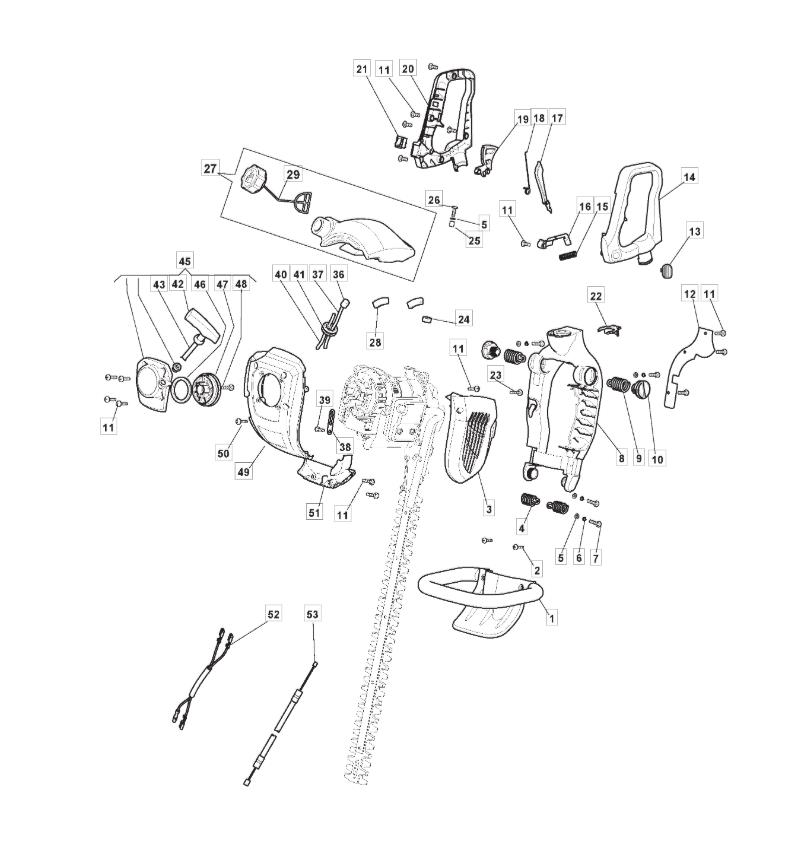

Engine 1 assembly details for Mountfield MHJ 2424 (252900023/M14) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123300014/0FRONT HANDLE£12.08 Add to
002123878121/0SCREW 4.2 x 13£1.79 Add to
004123430606/0FRONT ANTI-VIBRATION SPRING£2.06 Add to
005123657022/0WASHER£1.79 Add to
006123657017/0WASHER£2.18 Add to
008123784008/0HANDLE SUPPORT CASE£17.45 Add to
009123430607/0REAR ANTI-VIBRATION SPRING£2.06 Add to
010123790023/0SPRING CAP [BLACK]£2.00 Add to
011123878121/0SCREW 4.2 x 13£1.79 Add to
013118801432/0KNOB£2.00 Add to
014118804986/0HANDLE ASSY£80.68 Add to
015123430608/0RETURN SPRING£1.79 Add to
016123315100/0SAFETY LEVER£2.00 Add to
017123315100/0SAFETY LEVER£2.00 Add to
018123430609/0THROTTLE LEVER SPRING£1.79 Add to
019123315101/0THROTTLE LEVER£2.00 Add to
020123700066/0RIGHT HANDGRIP£4.75 Add to
021123303007/0STOP SWITCH£2.32 Add to
022123202008/0LOCK HANDLE£1.79 Add to
023123878115/0SCREW£2.00 Add to
024123657023/0RUBBER GROMMET£1.79 Add to
025123044223/0BUSH£1.79 Add to
026123878124/0SCREW£1.79 Add to
027123733006/0FUEL TANK ASSEMBLY£10.27 Add to
028123275031/0TANK GROMMET£1.79 Add to
036183520009/0INTAKE FILTER£5.87 Add to
037123867028/0FUEL PIPE£2.00 Add to
0391232940080WIRE GUIDE PLATE£1.79 Add to
041123867029/0FUEL PIPE£2.00 Add to
042123275032/0RUBBER PIPE GROMMET£2.67 Add to
043118801440/0RECOIL HANDLE£3.49 Add to
044123234007/0STARTER CORD£2.87 Add to
045183058040/0RECOIL ASSEMBLY£13.64 Add to
047123430610/0STARTER SPRING£3.69 Add to
048123604013/0RECOIL PULLEY£3.00 Add to
049112728445/0SELF-TAP SCREW TCB 4.8 x 9.5£2.06 Add to
050118801443/0CYLINDER COVER [GREY]£16.55 Add to
0516995181SCREW£2.00 Add to
052118801446/0ENGINE COVER [GREY]£3.69 Add to
053183065030/0SPARK PLUG CABLE£2.06 Add to
054123066024/0THROTTLE CABLE£7.23 Add to
055118801439/0FUEL CAP£6.47 Add to
057183058040/0RECOIL ASSEMBLY£13.64 Add to
