CUTTING UNIT

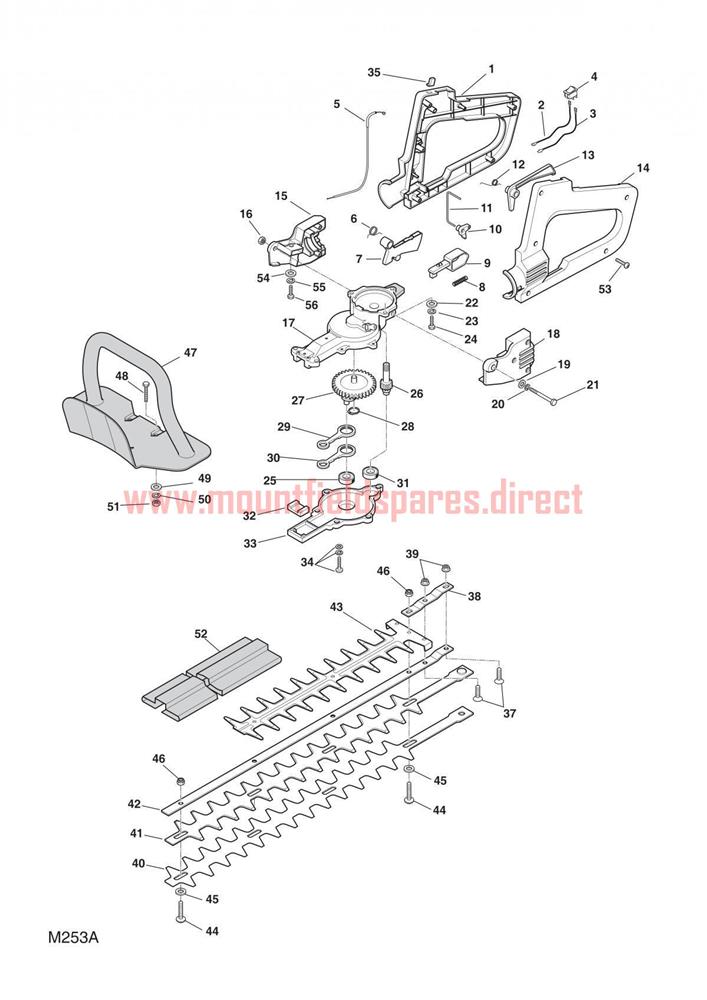

CUTTING UNIT assembly details for Mountfield HT55 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016981193RIGHT HANDLE£12.30 Add to
0026981192Earth Cable£5.66 Add to
0036981191Coil-Switch Cable£8.14 Add to
0046981194STOP SWITCH (OBSOLETE) (OBSOLETE)N/A
0056981188THROTTLE CABLE (OBSOLETE) (OBSOLETE)N/A
0066981186Spring£5.97 Add to
0076981187THROTTLE LEVER£2.06 Add to
0086981182Spring£6.58 Add to
0096981183Gearshift£11.78 Add to
0106981185Hook£5.66 Add to
0116981184Throttle Rod£6.58 Add to
0126981189Spring (OBSOLETE) (OBSOLETE)N/A
0136981190Safety Lever£6.58 Add to
0146981195LEFT HANDLE£27.51 Add to
0156981180Right Support£12.12 Add to
0166981142Nut£4.01 Add to
0176981165CASE£91.78 Add to
0186981181Left Support£12.12 Add to
0196981155Washer£4.01 Add to
0206981152Washer£4.01 Add to
0216981148Screw£4.01 Add to
0226981156Washer£4.01 Add to
0236981153Washer£4.01 Add to
0246981140Screw£4.01 Add to
0256981139NEEDLE BEARING£5.19 Add to
0266981175PINION£23.04 Add to
0276981176GEAR ASS.Y£91.58 Add to
0286981151Ring£4.01 Add to
0296981177CONNECTING ROD (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
0316981110NEEDLE BEARING£9.07 Add to
0326981169LINK BLOCK£6.47 Add to
0336981179CASE£76.59 Add to
0346981100SCREWS OUTFIT (OBSOLETE) (OBSOLETE)N/A
0356981287Button£10.00 Add to
0376981281Screw£4.01 Add to
0386981166PLATE£5.32 Add to
0396981280Nut (OBSOLETE) (OBSOLETE)N/A
0406981171LOWER BLADE (OBSOLETE)N/A
0416981170UPPER BLADE£84.77 Add to
0426981168BLADE GUIDE (OBSOLETE) (OBSOLETE) (OBSOLETE)N/A
0436981167BLADE GUARD (OBSOLETE)N/A
0446981173Screw (OBSOLETE)N/A
0456981172WASHER£1.79 Add to
0466981279NUT£2.00 Add to
0476981196FRONT HANDLE£51.70 Add to
0486981150Screw (OBSOLETE) (OBSOLETE)N/A
0526981174BLADE COVER£7.92 Add to
0536981149SCREW£4.01 Add to
0566981147Screw£4.01 Add to
