MOTOR CUTTER

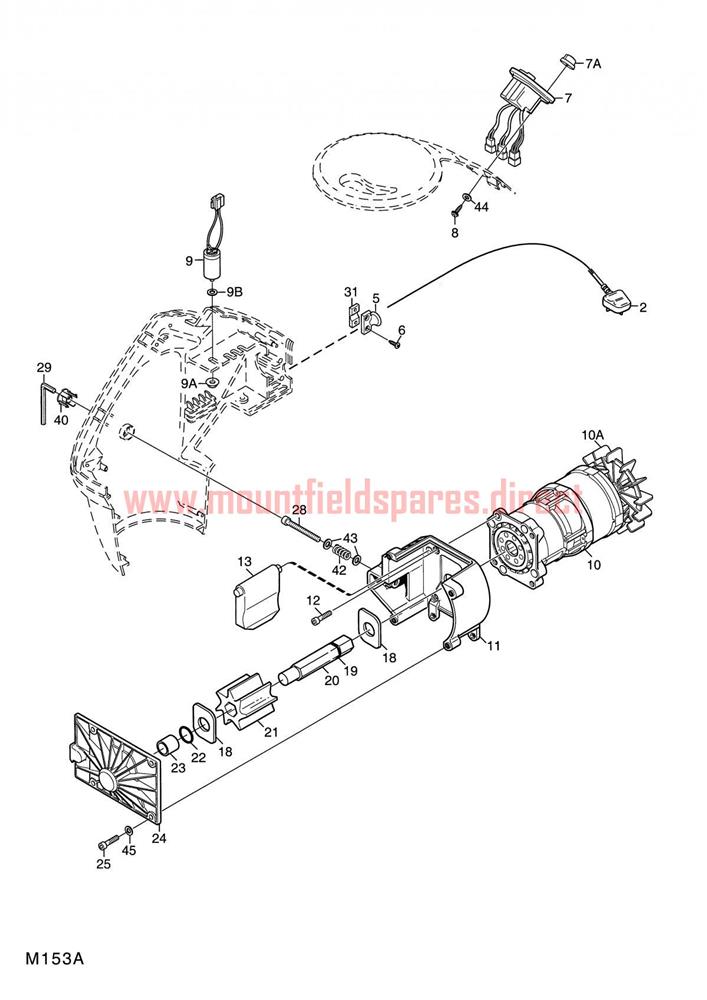

MOTOR CUTTER assembly details for Mountfield Quiet shredder 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	1717-0359-02	CONNECTION CABLE (UK) 3 m 2006	£46.19	Add to
005	1717-0349-01	CORD RETAINER 2006	£14.67	Add to
006	1717-0377-01	SCREW	£3.64	Add to
007	1717-0506-01	SWITCH ASSY	£245.56	Add to
008	1717-0382-01	SCREW	£2.23	Add to
009	1717-0408-01	CONDENSOR (20 µF)	£83.37	Add to
010	1717-0383-01	ELECTRIC MOTOR ASSY (OBSOLETE)	N/A
011	1717-0511-01	Cutting chamber (OBSOLETE)	N/A
012	112760515/0	HEXAGONAL SCREW TC M8 x 20	£0.79	Add to
013	1717-0512-01	CUTTING PLATE (OBSOLETE) (OBSOLETE)	N/A
018	1717-0387-01	SPACER PLATE 2006	£18.29	Add to
019	1717-0388-01	O RING	£3.64	Add to
020	1717-0389-01	Shaft (OBSOLETE)	N/A
021	1717-0390-01	CUTTER	£26.18	Add to
022	1717-0391-01	O RING	£3.64	Add to
023	1717-0392-01	BEARING BUSH	£28.85	Add to
024	1717-0513-01	Cutting chamber cover (OBSOLETE)	N/A
028	1717-0514-01	ADJUSTING SCREW 2006 (OBSOLETE)	N/A
029	1717-0516-01	ALLEN WRENCH 8MM	£7.13	Add to
031	1717-0398-01	CORD RESTRAINER LOWER	£7.13	Add to
040	1717-0517-01	Plug (OBSOLETE)	N/A
042	1717-0515-01	Spring (OBSOLETE)	N/A
043	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
044	112521310/0	WASHER M4 4.3 x 9 x 0.8	£1.79	Add to
045	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
07A	1717-0521-01	DIRECTION BUTTON	£9.62	Add to
09A	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
09B	9678-0010-02	STARLOCK WASHER	£3.64	Add to
10A	1717-0384-01	COOLING FAN (OBSOLETE)	N/A
