CHASSIS

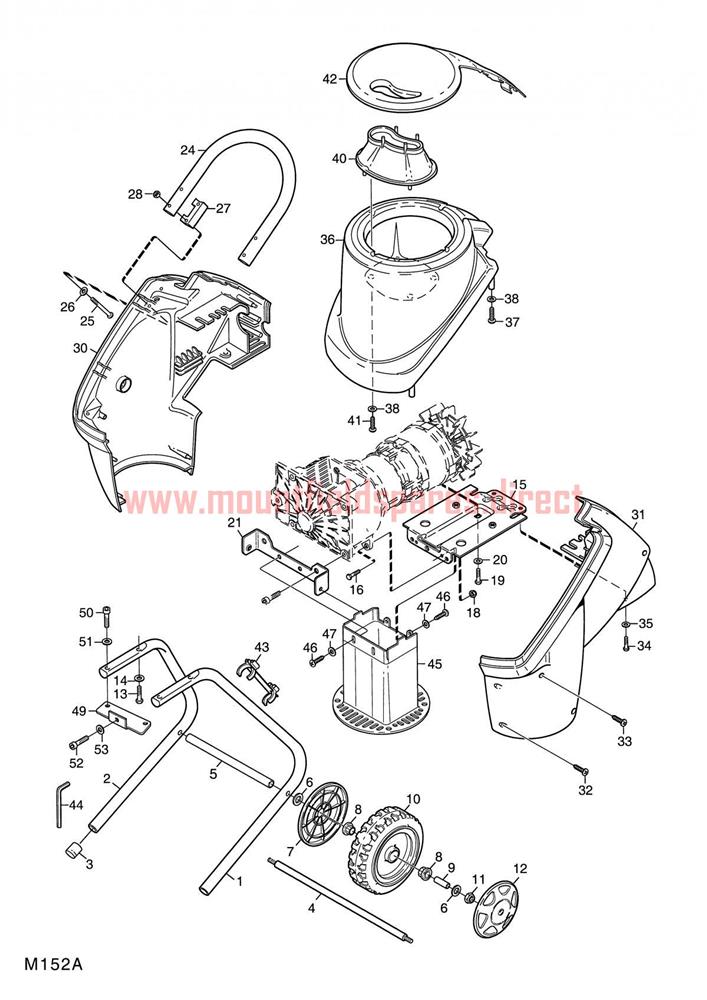

CHASSIS assembly details for Mountfield Quiet shredder 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1717-0352-01	Leg-LH (OBSOLETE)	N/A
002	1717-0350-01	WHEEL BUSH	£7.13	Add to
003	1717-0373-01	END CAP	£7.13	Add to
004	1717-0354-01	WHEEL AXLE 2006 (OBSOLETE)	N/A
005	1717-0355-01	TUBE	£23.77	Add to
006	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
007	1717-0522-01	WHEEL COVER 2006	£12.79	Add to
008	1717-0350-01	WHEEL BUSH	£7.13	Add to
009	1717-0356-01	WHEEL SPACER	£12.74	Add to
010	1717-0347-01	Wheel (OBSOLETE)	N/A
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1717-0348-04	Hub cap-red (OBSOLETE)	N/A
013	9939-0840-12	SCREW M8X40	£3.64	Add to
015	1717-0357-01	MOTOR PLATE	£86.07	Add to
016	9997-0616-16	SCREW M6S M6 x 16	£4.01	Add to
018	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
019	112790780/0	HEX HEAD SCREW M6X12	£3.64	Add to
020	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
021	1717-0360-01	MOTOR BRACKET-FRONT 2006	£32.61	Add to
024	1717-0499-01	HANDLE SHORT 2006	£127.60	Add to
025	1717-0518-01	SCREW 2006	£3.64	Add to
027	1717-0500-01	Handle block (OBSOLETE)	N/A
028	112292100/0	HEXAGON NUT M6	£1.47	Add to
030	1717-0501-04	Housing-red (OBSOLETE)	N/A
031	1717-0519-04	Housing-red (OBSOLETE)	N/A
032	1717-0377-01	SCREW	£3.64	Add to
033	1717-0378-01	SCREW	£3.64	Add to
036	1717-0520-04	Front cap-red (OBSOLETE)	N/A
038	112521310/0	WASHER M4 4.3 x 9 x 0.8	£1.79	Add to
040	1717-0342-01	BRANCH GUIDE (OBSOLETE)	N/A
042	1717-0504-01	PANEL CAP (GREY) (OBSOLETE)	N/A
043	1717-0503-01	TOOL HOLDER	£7.13	Add to
044	9900-0060-00	Allen wrench (OBSOLETE)	N/A
045	1717-0406-01	FUNNEL (OBSOLETE)	N/A
047	9699-0024-02	WASHER 2011	£3.64	Add to
049	1717-0405-01	BRACKET	£36.97	Add to
052	9939-0812-16	SCREW M8X12	£3.64	Add to
