Housing

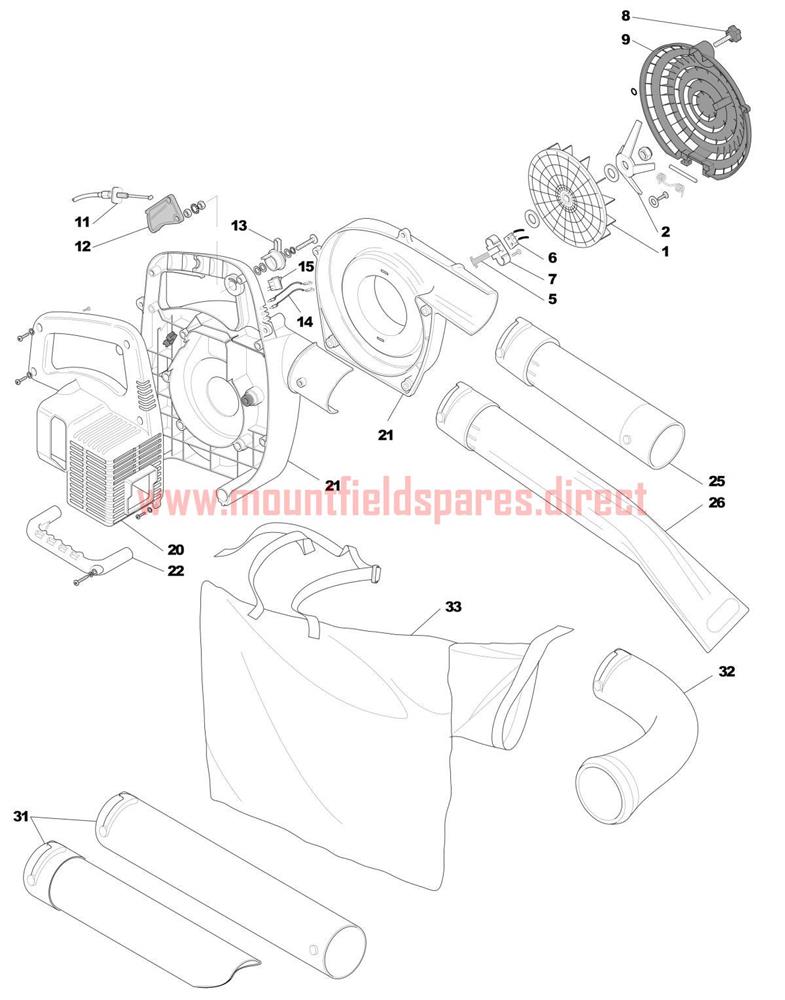

Housing assembly details for Mountfield MBL 260 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002123305003/0FAN BLADE£4.23 Add to
005123606004/0PUSH SWITCH£4.52 Add to
006123303005/0SWITCH- NLA£4.52 Add to
007123671500/0STOP PLATE£4.60 Add to
008123593506/0COVER FAN KNOB (OBSOLETE)N/A
009123109575/0FAN COVER£11.05 Add to
011123065042/0THROTTLE CABLE£7.10 Add to
012123315091/0THROTTLE LEVER£2.87 Add to
013123315092/0LOCKING THROTTLE LEVER£1.79 Add to
014123065041/0STOP CABLE£4.60 Add to
015123303004/0STOP SWITCH£2.54 Add to
020123600071/0ENGINE COVER [RED]£20.55 Add to
021183107501/0AIR CONVEYOR ASSEMBLY [RED]£119.32 Add to
022123700064/0LOWER HANDGRIP£8.38 Add to
025123867016/0FIRST BLOWER TUBE£5.87 Add to
026123867015/0SECOND BLOWER TUBE£6.14 Add to
031118800595/0LOWER VACUUM TUBE£26.69 Add to
032123867017/0BAG TUBE£9.14 Add to
033123666000/0BLOWER BAG£24.95 Add to
