Engine

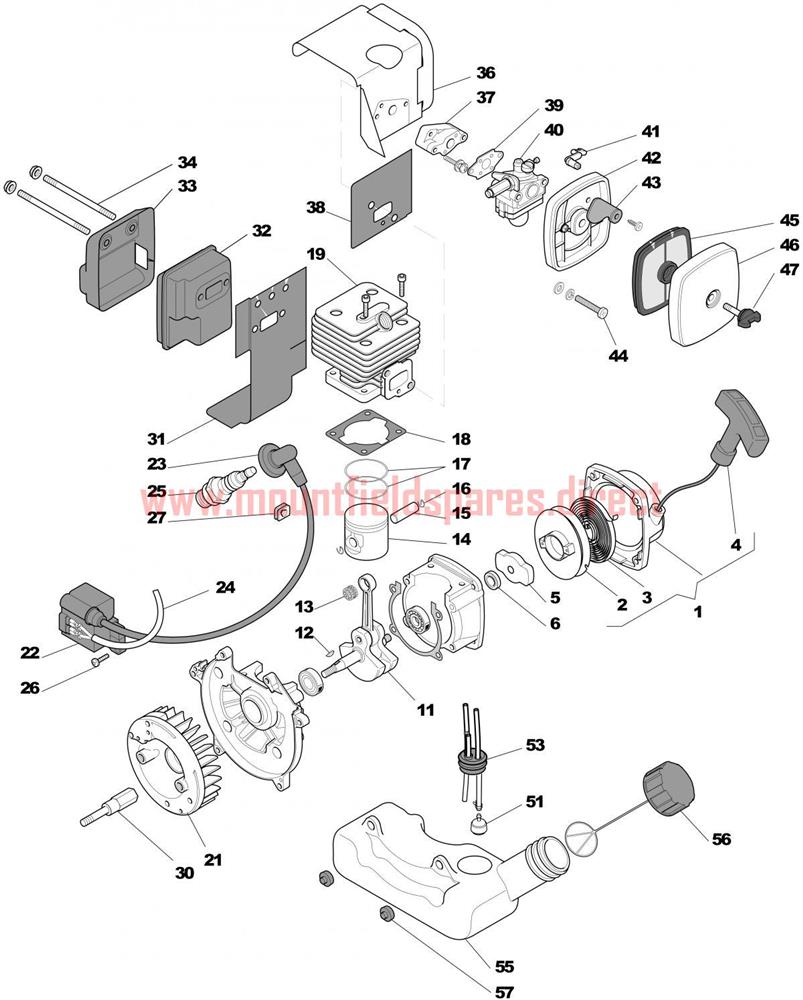

Engine assembly details for Mountfield MBL 260 H (20100406) 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001183058031/0RECOIL ASSEMBLY£19.90 Add to
002123604006/0RECOIL PULLEY£3.15 Add to
003123430584/0RECOIL SPRING£6.69 Add to
004123300012/0STARTER HANDLE£5.10 Add to
005183082002/1STARTER CUP ASSEMBLY£4.78 Add to
006119035159/0OIL SEAL£1.79 Add to
011123020024/0CRANKSHAFT£47.97 Add to
012123072004/0FLYWHEEL KEY£3.64 Add to
013123235006/0NEEDLE BEARING£3.15 Add to
014123590007/0PISTON£9.00 Add to
015123760005/0PISTON PIN£2.06 Add to
016123202005/0CIRCLIP£1.79 Add to
017123204009/0PISTON RING£2.06 Add to
018123280044/0CYLINDER GASKET£1.79 Add to
019123071021/0CYLINDER£56.15 Add to
021123880010/0MAGNET FLYWHEEL£31.63 Add to
022118801574/0IGNITION COIL BL260£26.07 Add to
023123053004/0SPARK PLUG COVER£1.79 Add to
024123065040/0EARTH CABLE£1.79 Add to
0253210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
026123878070/0SCREW 5 X 20£3.64 Add to
027123275023/0GROMMET£1.79 Add to
030123020029/0SHAFT£5.37 Add to
031123280057/0MUFFLER GASKET£19.62 Add to
032183740016/0MUFFLER£90.22 Add to
033123600068/0MUFFLER COVER£6.58 Add to
034123878071/0SCREW£1.79 Add to
036123600069/0CYLINDER COVER£6.58 Add to
037123073508/0INTAKE MANIFOLD£3.83 Add to
038123280058/0INTAKE MANIFOLD GASKET£2.06 Add to
039123280059/0INTAKE CARBURETTOR GASKET£1.79 Add to
040123054033/0CARBURETTOR£52.06 Add to
041123315090/0CHOKE LEVER£2.06 Add to
042123040003/0AIR FILTER BASE£9.54 Add to
043123190001/0STARTER VALVE£1.58 Add to
044123878072/0SCREW 5 × 60£4.01 Add to
045123220012/0AIR FILTER£6.27 Add to
046123090031/0AIR FILTER COVER£2.06 Add to
047123878073/0FILTER COVER SCREW£1.79 Add to
051183520006/0INTAKE FILTER£2.87 Add to
053123275021/0GROMMET£1.79 Add to
053A123867031/0FUEL PIPE£6.55 Add to
053B123867030/0FUEL PIPE£1.79 Add to
055123733004/0FUEL TANK£9.54 Add to
056183790009/0FUEL CAP£3.15 Add to
057123280060/0RUBBER GASKET£1.79 Add to
