Housing

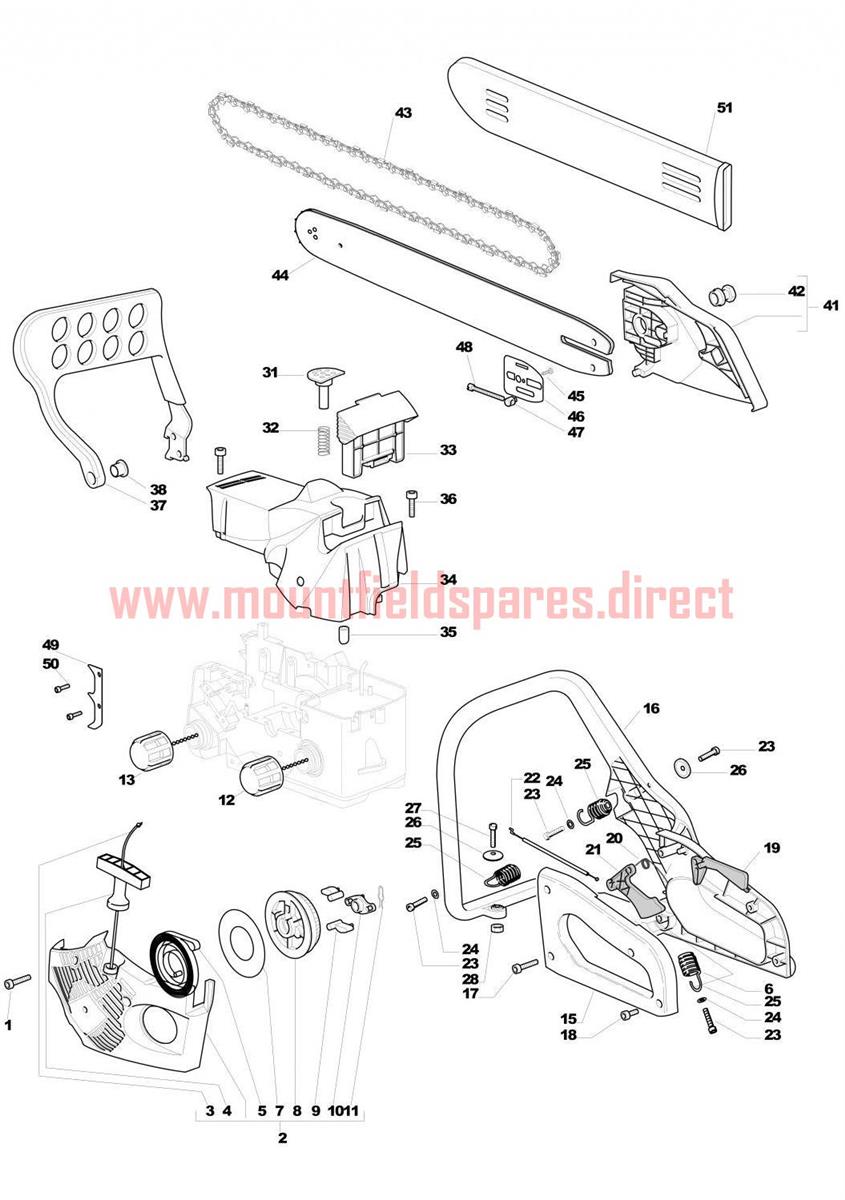

Housing assembly details for Mountfield MC 3814 - MC 3816 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
002	383058027/0	RECOIL ASSEMBLY [RED]	£43.65	Add to
003	3784030	RECOIL ROPE	£2.47	Add to
004	323300004/0	Starter Handle	£5.63	Add to
005	4611480	STARTER SPRING	£9.00	Add to
007	3723640	SPRING DISC	£4.52	Add to
008	3750130	STARTING PULLEY 360370390410	£4.78	Add to
009	3750080	STARTER HOOK (OBSOLETE)	N/A
010	3750140	STARTER HOOK GUIDE	£3.69	Add to
011	3657480	Retainer	£4.01	Add to
012	4252630	OIL CAP ASSY	£13.91	Add to
015	4563760	Handle Cover	£15.10	Add to
016	3L4563750/1	HANDLE	£44.56	Add to
018	2123100	SCREW M4 8 x 13	£1.79	Add to
019	3743597	SAFETY LEVER	£2.06	Add to
020	3654440/1	SPRING	£5.86	Add to
021	3743587	THROTTLE LEVER	£3.83	Add to
022	4252480	ACCELLERATOR CABLE 360410	£6.95	Add to
023	2123031	Screw	£4.01	Add to
024	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
025	3654400	SPRING	£6.69	Add to
026	3614800	Washer	£4.01	Add to
027	2135040	TORX SCREW M5 x 18	£1.79	Add to
028	2432040	NUT M5	£1.79	Add to
031	3750440	AIR PURGE BUTTON	£3.69	Add to
032	3654430	SPRING	£1.79	Add to
033	383220002/0	AIR FILTER	£9.14	Add to
034	323087019/0	CYLINDER COVER RED	£14.64	Add to
035	3750450	PRIMER BUTTON	£2.87	Add to
037	4563770	HAND GUARD	£27.27	Add to
038	3614330	Bush	£7.19	Add to
041	383059017/0	CLUTCH CASE RED	£21.26	Add to
042	2670270	CLUTCH CASE BAR NUT ES360700	£3.15	Add to
043	4113710	CHAIN 13INCH 325 .050 A50JP 56 (OBSOLETE) (OBSOLETE)	N/A
043	4113711	CHAIN 16"-64E Pitch 0.325" Width 0.05"	£21.95	Add to
044	323900107/0	GUIDE BAR 16" P= .325" 1.3mm	£50.70	Add to
044	23900109/0	Guide Bar 13"	£47.06	Add to
045	2123060	SELF-THREAD SCREW	£1.79	Add to
046	23311002/0	Plate	£10.45	Add to
047	3641970	PLUG	£4.52	Add to
048	2653470	CHAIN TIGHTENER SCREW	£1.79	Add to
049	23026000/0	Spike	£12.98	Add to
051	4181297	CHAIN COVER 14"	£2.47	Add to
