Engine

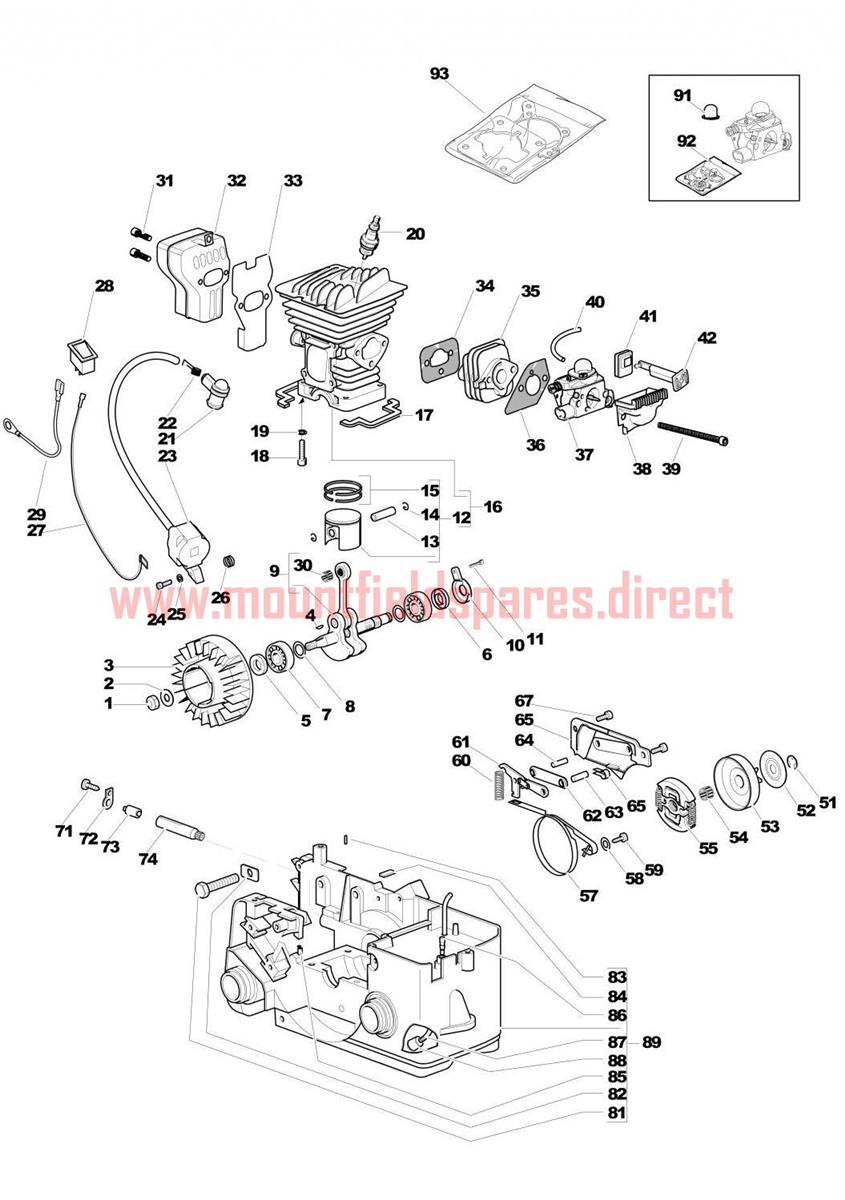

Engine assembly details for Mountfield MC 3714 Q 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2432050	Nut	£4.01	Add to
002	2312080	Washer	£4.01	Add to
003	4541210/1	FLYWHEEL	£77.08	Add to
004	3151010	FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70	£1.79	Add to
005	3121071	SEAL RING 12 x 22 x 5.5	£5.19	Add to
006	3121072	SEAL RING 12 x 22 x 5.5	£8.73	Add to
007	3112030	BEARING 6201 C3	£15.41	Add to
008	3614480	Washer	£4.01	Add to
009	383020003/0	CRANK SHAFT	£77.93	Add to
010	3750311	GREY OIL PUMP COVER 370410	£2.06	Add to
011	2123020	Screw	£4.01	Add to
012	383590005/0	PISTON ASSY D=39	£26.18	Add to
013	3158260	PISTON PIN 8 x 29	£4.59	Add to
014	3356050	CIRCLIP	£1.79	Add to
015	123204003/0	PISTON RING	£4.23	Add to
016	383070005/0	CYLINDER-PISTON ASSEMBLY D=39	£148.44	Add to
017	3721560	CYLINDER BASE WASHER CS 360-410	£2.47	Add to
018	2135060	TORX SCREW M5 x 25	£2.00	Add to
019	2330020	GROWER WASHER D.5	£1.79	Add to
020	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
021	3748880	SPARK PLUG CAP	£2.47	Add to
022	3657050	SPARK PLUG SPRING	£3.83	Add to
023	3L3211350/1	IGNITION COIL	£106.58	Add to
024	2123140	Screw	£4.01	Add to
025	2321150	Washer	£4.01	Add to
026	3654480	SPRING	£1.79	Add to
027	3211380	Earth Cable	£5.66	Add to
028	118800202/0	EXTINCTION SWITCH	£2.18	Add to
029	3211690	Earth Cable	£5.66	Add to
030	3116100	NEEDLE BEARING 8 x 12 x 10	£7.92	Add to
031	2135040	TORX SCREW M5 x 18	£1.79	Add to
032	183740004/0	MUFFLER ASSY	£50.70	Add to
033	123280022/0	Muffler Gasket	£6.95	Add to
034	1L3724300/1	GASKET	£3.69	Add to
035	3750180	INTAKE MANIFOLD 360390	£13.64	Add to
036	1L3724160/1	CARBURRETOR GASKET	£2.00	Add to
037	23054003/2	Carburettor	£104.30	Add to
038	8744781	INTAKE MANIFOLD	£38.44	Add to
039	2135210	TORX SCREW M5 x 75 (OBSOLETE) (OBSOLETE)	N/A
040	3786130	Tube (OBSOLETE) (OBSOLETE)	N/A
041	3745650	Grommet	£7.19	Add to
042	3743407	Choke Lever	N/A	POA
051	112000955/0	CIRCLIP D=8	£1.79	Add to
052	3612620	PINION WASHER (OBSOLETE) (OBSOLETE)	N/A
053	4121208	CLUTCH SPROCKET	£17.59	Add to
054	3114190	NEEDLE BEARING	£8.04	Add to
055	4252200/1	Clutch Assy	£40.44	Add to
057	3614740	BRAKE BAND	£7.92	Add to
058	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
059	2123060	SELF-THREAD SCREW	£1.79	Add to
060	3654570	Spring (OBSOLETE)	N/A
061	4252310	CHAIN BRAKE LEVER	£17.04	Add to
062	3614490	BRAKE BLADE PLATE	£2.74	Add to
063	3180500	Roller 5X19,8	£4.01	Add to
064	3180510	Roller 6X21,8	£4.01	Add to
065	3614780	Spring	£7.19	Add to
066	3750117	BRAKE COVER [GREY]	£9.85	Add to
067	2123100	SCREW M4 8 x 13	£1.79	Add to
072	3614810	PUMP BRAKE RUBBER BLADE 390	£2.00	Add to
073	3744790	SPACER	£4.66	Add to
074	4252220	OIL PUMP	£35.71	Add to
081	23878001/0	Screw	£4.01	Add to
082	23650100/0	Bar Screw Support	£6.58	Add to
083	3741367	Cap For Oil Delivery	N/A	POA
084	3614930	Insert	£6.58	Add to
085	383867000/0	Tube Ass.Y For Oil Breather	£5.93	Add to
086	4253680	BREATHER VALVE ASSEMBLY	£4.52	Add to
087	3786050	FUEL LINE	£5.73	Add to
088	4253290	FUEL INTAKE FILTER	£12.68	Add to
089	383057001/2	Crankase	£80.42	Add to
091	3744870	PRIMER BULB	£13.77	Add to
092	8724091	DIAPHRAGM GASKET SET	£18.82	Add to
093	383303514/0	GASKET KIT	£15.21	Add to
