Housing

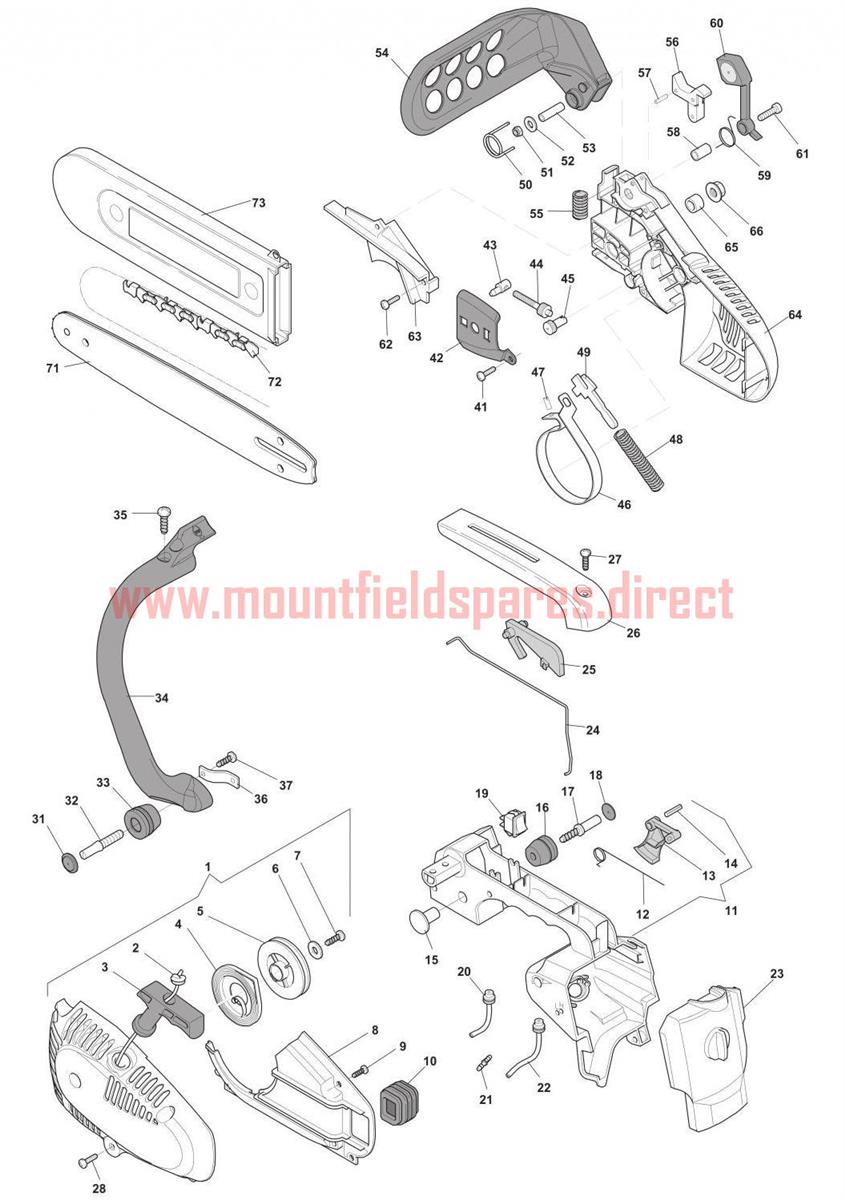

Housing assembly details for Mountfield MC 2510 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183058008/0Starter Assy RedN/A POA
00223234000/0Starter Cord£5.96 Add to
0033750067STARTER HANDLE£2.74 Add to
00423430557/0STARTER SPRING 2009£22.47 Add to
00523604001/0Starter Pulley£9.77 Add to
00623657002/0Washer£4.01 Add to
00723878010/0Screw£4.01 Add to
00823107501/0Air Conveyor£7.60 Add to
00923878008/0Screw£4.01 Add to
01023275004/0Grommet£6.85 Add to
0116995240HANDLE ASSY£41.16 Add to
0126995114SPRING£1.79 Add to
0136995134THROTTLE LEVER£5.21 Add to
0146995016ELASTIC PIN£2.00 Add to
0156995196Cap£6.88 Add to
01623275005/0Shock Absorber£13.13 Add to
01723878007/0Screw£4.01 Add to
01823790006/0Cap£5.66 Add to
0196995226Switch£11.54 Add to
0206995198TUBE£2.78 Add to
0216995199TUBE CONNECTION£1.79 Add to
0226995197TUBE£2.87 Add to
0236995218REAR COVER£18.13 Add to
0246995215Throttle Rod£7.60 Add to
0256995135Safety Lever£5.66 Add to
0266995195HANDLE, UPPER PART£5.32 Add to
03423105000/0Handle£12.72 Add to
03623200001/0Plate£6.58 Add to
04123878009/0Screw£4.01 Add to
04223311003/0Bar Plate£8.80 Add to
04323796004/0CHAIN-TIGHTENER NUT 2009£26.84 Add to
04423878005/0Screw 2009£40.15 Add to
04523510093/0PIN 2009£73.20 Add to
04623448001/0Brake Band£10.42 Add to
04723665001/0Pin£4.01 Add to
04823430561/0SpringN/A POA
04923315061/0Lever£9.32 Add to
05023430560/0Spring£4.97 Add to
05123120000/0Nut£4.01 Add to
05223657003/0Washer£4.01 Add to
05323044206/0Bushing£6.58 Add to
05423455005/0Hand Guard£12.72 Add to
05523430559/0Spring£8.56 Add to
05683315050/0CHAIN BRAKE LEVER 2009£30.17 Add to
05723665000/0Roller£4.01 Add to
05823044207/0Bushing£5.71 Add to
05923430558/0Spring£5.71 Add to
06023080000/0Balance Weigth£7.14 Add to
06123878006/0Screw£4.01 Add to
06323109515/0Brake Cover 2009£17.78 Add to
064323059009/0CLUTCH HOUSING RED PR270£13.91 Add to
0653641380BUSHING 54O450£3.69 Add to
0662670120DESC NOT_AVAILABLE£3.78 Add to
071123900114/0"Guide B ar 12""" "12"" 3/8""mini .050"" (1.3mm)"N/A POA
07123900300/0"Guide B ar 10""" "10"" 3/8""mini .050"" (1.3mm)"N/A POA
07123900301/0"Guide B ar 10""" "10"" Carving 1/4""mini .050"" (1.3mm)"£100.38 Add to
0724113281"Chain 12""" "12"" 3/8"" .050"" (1.3 mm) - 45E "N/A POA
0724113709CHAIN 10" A50RG-40E 3/8"MINI .050" 2009£15.16 Add to
0724113760CHAIN 10INCH 1/4 .050 (1.3 MM) - 60E 200£40.29 Add to
07323085000/0CHAIN COVER 2009£32.28 Add to
