Engine

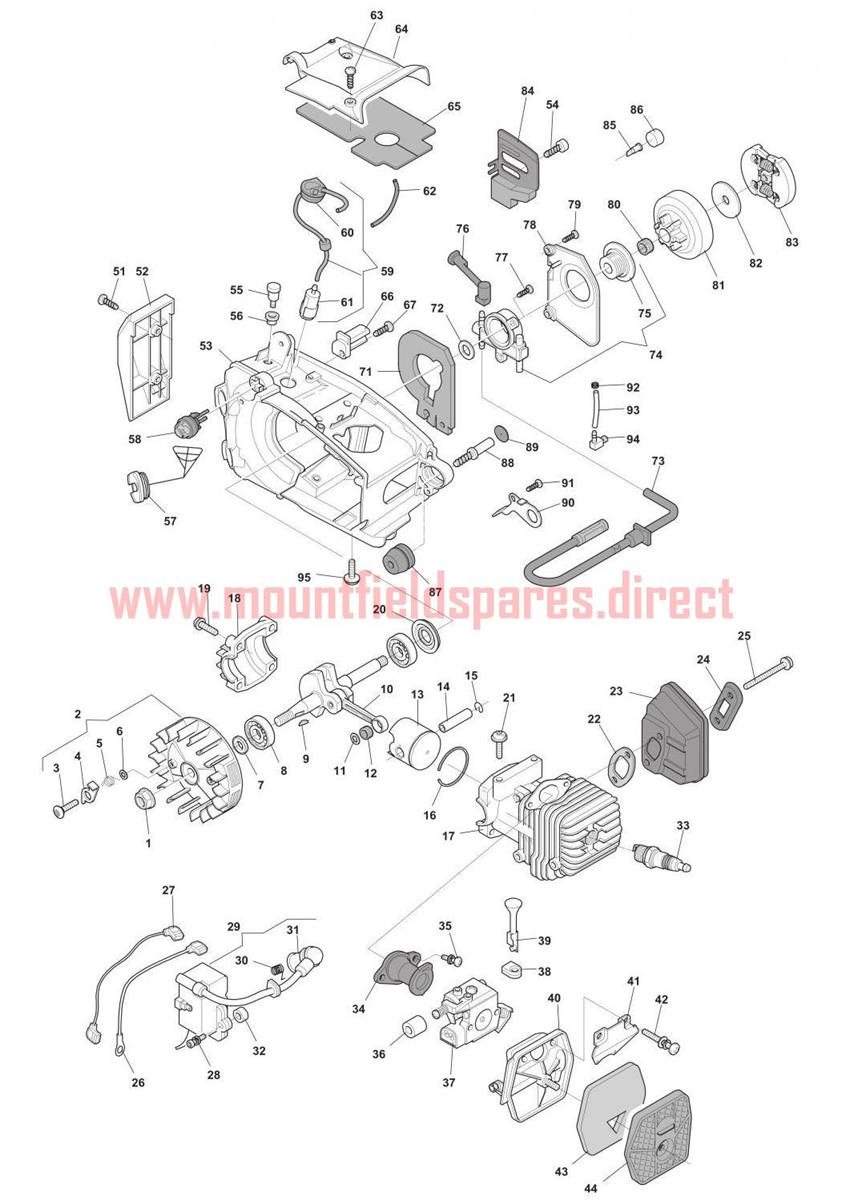

Engine assembly details for Mountfield MC 2510 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6995173	Nut	£4.01	Add to
002	6995207	FLYWHEEL ASSY	£67.70	Add to
003	6995224	Screw	£4.01	Add to
004	6995208	Flywheel Starter Hook	£6.37	Add to
005	6995250	FLYWHEEL SPRING	£2.06	Add to
006	6995225	Washer	£4.01	Add to
007	6995247	SEAL RING	£7.10	Add to
008	6995170	BALL BEARING	£13.24	Add to
009	6995018	KEY	£1.79	Add to
010	6995202	Crankshaft	£163.57	Add to
011	6995169	WASHER	£2.18	Add to
012	6995237	NEEDLE BEARING	£16.94	Add to
013	6995200	PISTON	£36.69	Add to
014	6995172	PISTON PIN	£4.23	Add to
015	6995171	CIRCLIP	£1.79	Add to
016	6995201	PISTON RING	£12.55	Add to
017	6995245	CYLINDER ASSY	£184.24	Add to
018	6995186	STABILIZER [OBSOLETE]	£50.70	Add to
019	6995252	Screw	£4.01	Add to
020	6995248	SEAL RING	£8.60	Add to
021	6995229	Screw	£4.01	Add to
022	6995185	MUFFLER GASKET	£2.06	Add to
023	6995246	MUFFLER	£19.36	Add to
024	6995251	PLATE	£1.79	Add to
025	6995182	SCREW	£1.79	Add to
026	6995210	EARTH CABLE	£7.23	Add to
027	6995227	STOP WIRE	£5.21	Add to
028	6995234	SCREW	£1.79	Add to
029	6995209	ELECTRONIC COIL	£197.87	Add to
030	6995022	SPARK PLUG SPRING	£1.79	Add to
031	6995066	SPARK PLUG COVER	£3.72	Add to
032	6995238	BUSHING	£3.69	Add to
033	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
034	6995183	INTAKE MANIFOLD ASS.Y	£60.24	Add to
035	6995167	Screw	£4.01	Add to
036	6995212	Gasket	£5.66	Add to
037	6995244	KZ CARBURATORE 848C128100 -RIC	£117.47	Add to
038	6995214	GROMMET	£2.78	Add to
039	6995213	CHOKE LEVER ROD	£3.15	Add to
040	6995243	AIR FILTER SUPPORT	£7.10	Add to
041	6995168	Screw	£4.01	Add to
041	6995211	PLATE	£5.05	Add to
043	6995217	AIR FILTER	£3.55	Add to
044	6995216	AIR CLEANER COVER	£15.00	Add to
051	23878008/0	Screw	£4.01	Add to
052	6995175	Front Cover	£12.62	Add to
053	6995239	CRANKASE ASS.Y	£78.88	Add to
054	6995187	SCREW	£1.79	Add to
055	6995221	Breather Valve Ass.Y	£11.54	Add to
056	6995232	GROMMET	£1.79	Add to
057	6995193	CAP ASS'Y	£9.28	Add to
058	6995228	AIR PURGE	£38.44	Add to
059	6995188	GROMMET ASS.Y	£26.18	Add to
060	6995189	GROMMET	£7.36	Add to
061	6995174	FUEL PICKUP ASSY	£7.92	Add to
062	6995190	TUBE	£2.74	Add to
064	6995249	KZ CARTER SUPERIORE T2041-31910 -RIC	£4.23	Add to
065	6995194	Guard	£7.30	Add to
066	6995180	KZ FERMACATENA 2630-53412 -RIC	£2.61	Add to
067	6995179	SCREW	£1.79	Add to
071	6995204	GASKET	£1.79	Add to
072	6995223	Washer	£4.01	Add to
073	6995191	FILTER INTANK ASSY. W PIPE	£27.27	Add to
074	6995242	Oil Pump Assy	£150.41	Add to
075	6995222	Female Screw 2008	£24.65	Add to
076	6995205	TUBE	£4.10	Add to
077	6995008	SCREW, ELECTRONIC COIL	£1.79	Add to
078	6995206	Cover Pump	£7.44	Add to
080	6995230	NEEDLE BEARING	£8.60	Add to
081	6995176	DRUM ASS.Y, CLUTCH 3/8	£68.42	Add to
081	6995178	DRUM ASS.Y, CLUTCH 1/4	£62.97	Add to
082	6995203	SPROCKET WASHER	£3.69	Add to
083	6995177	CLUTCH ASS.Y	£42.53	Add to
084	6995241	PLATE	£12.54	Add to
085	6995220	VALVE	£2.87	Add to
086	6995192	GASKET	£3.72	Add to
087	23275005/0	Shock Absorber	£13.13	Add to
088	23878007/0	Screw	£4.01	Add to
089	23790006/0	Cap	£5.66	Add to
090	6995219	REAR STIRRUP SUPPORT 270	£3.69	Add to
091	23878009/0	Screw	£4.01	Add to
092	6995231	Fair Led	£5.66	Add to
093	6995184	TUBE	£2.32	Add to
094	6995235	TUBE CONNECTION	£1.79	Add to
095	6995181	SCREW	£2.00	Add to
